Valley Craft Drum Lift & Rotator - Semi-Powered, Powered Lift/Rotate, Manual Drive, Grip Connection, Straddle, 78"H, 800 lb. CapacityDouble-click to zoom

Valley Craft · Drum & Material Handling

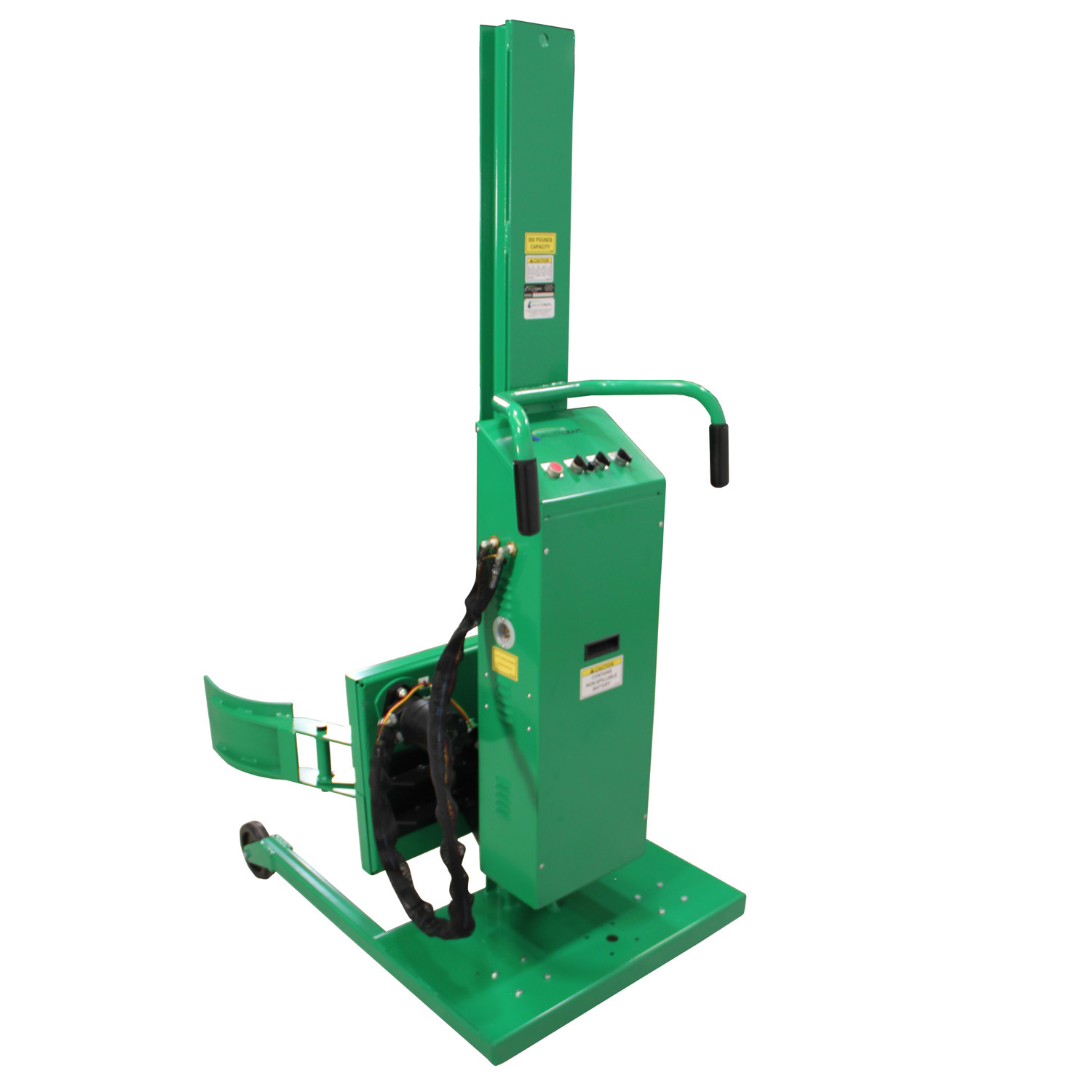

Valley Craft Drum Lift & Rotator - Semi-Powered, Powered Lift/Rotate, Manual Drive, Grip Connection, Straddle, 78"H, 800 lb. Capacity

Model: F88585C3

2 Weeks

List Price

$12,449.00

Free shipping · standard freight included

Request a Quote

Free shipping — standard LTL freight included to commercial addresses

Capacity / Key Spec

See specs

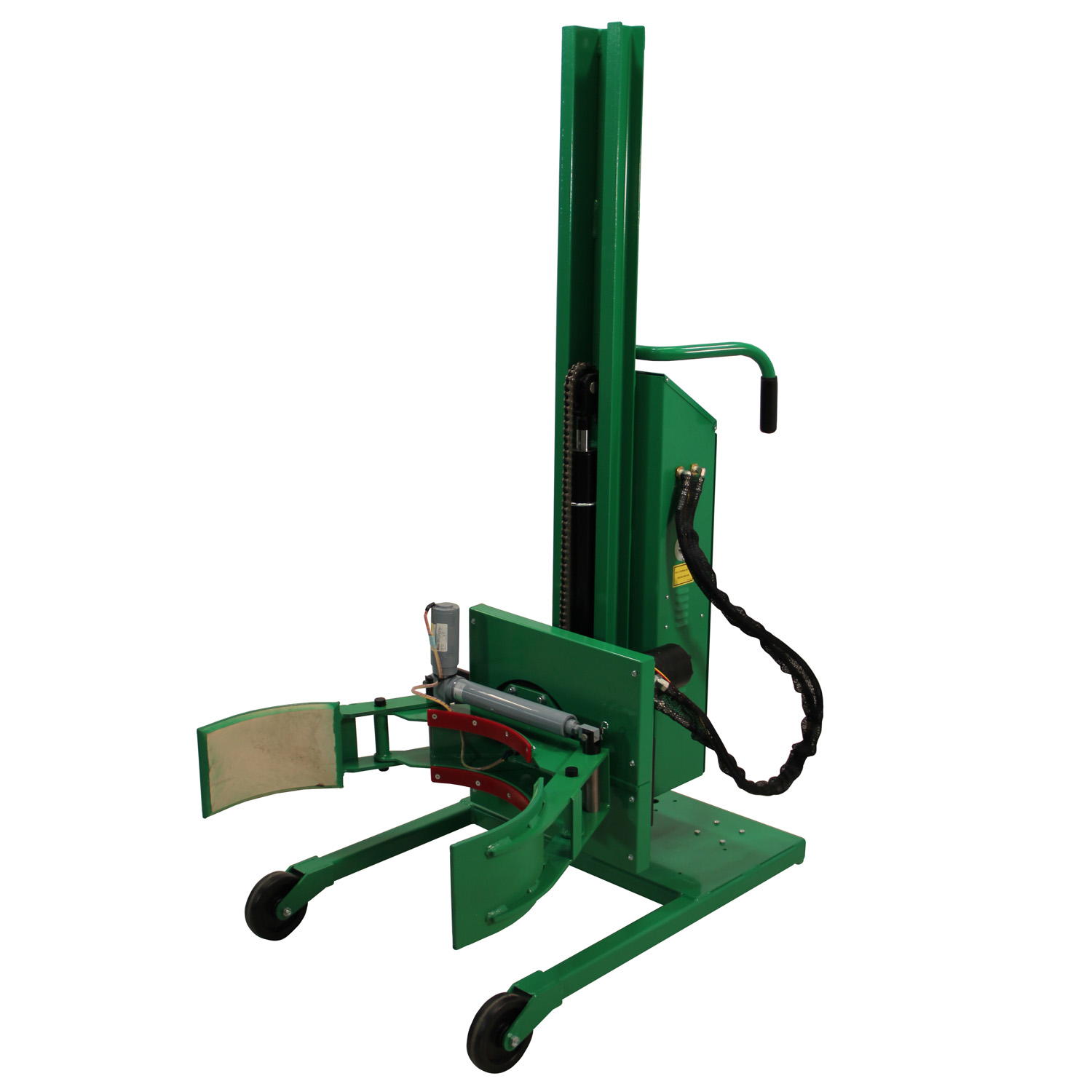

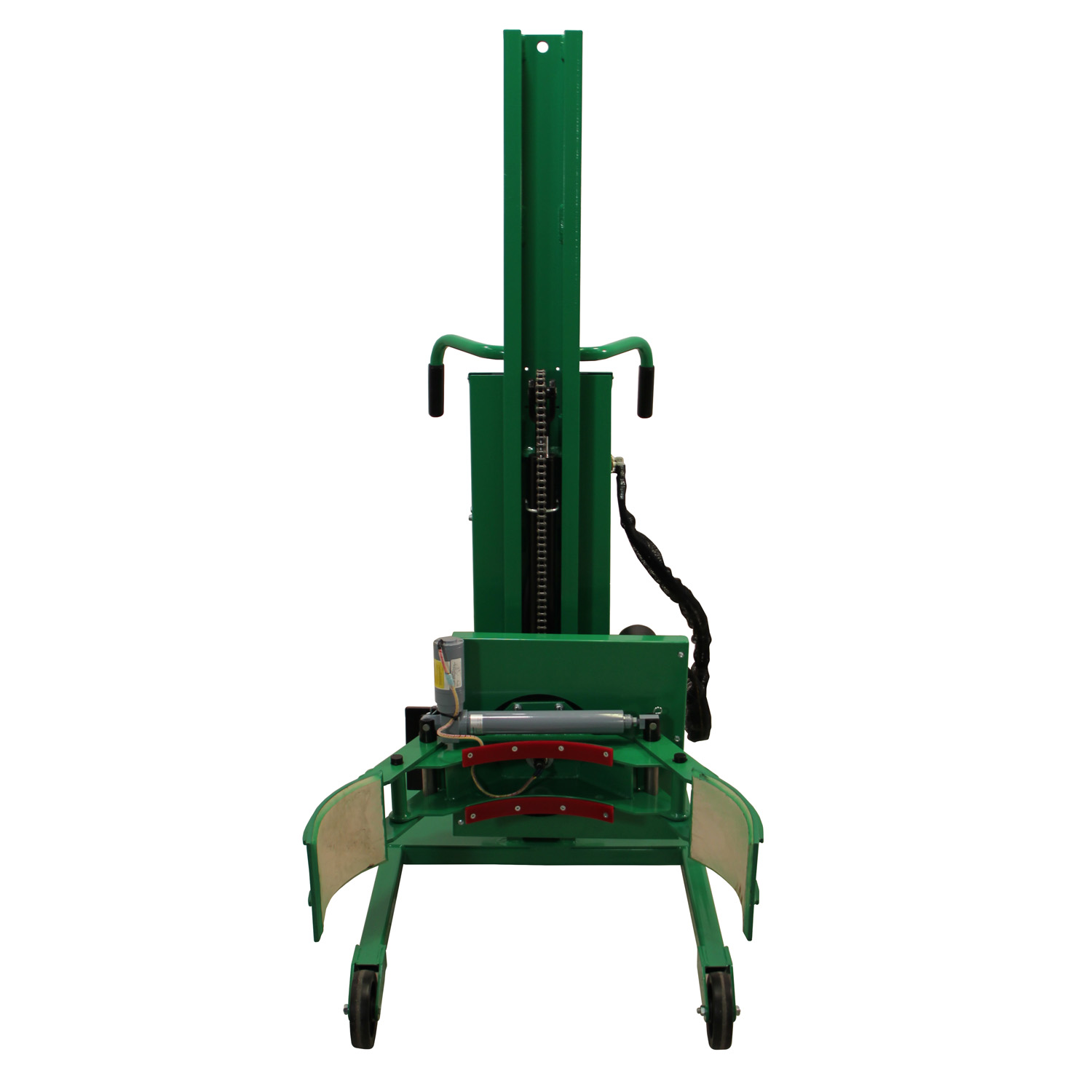

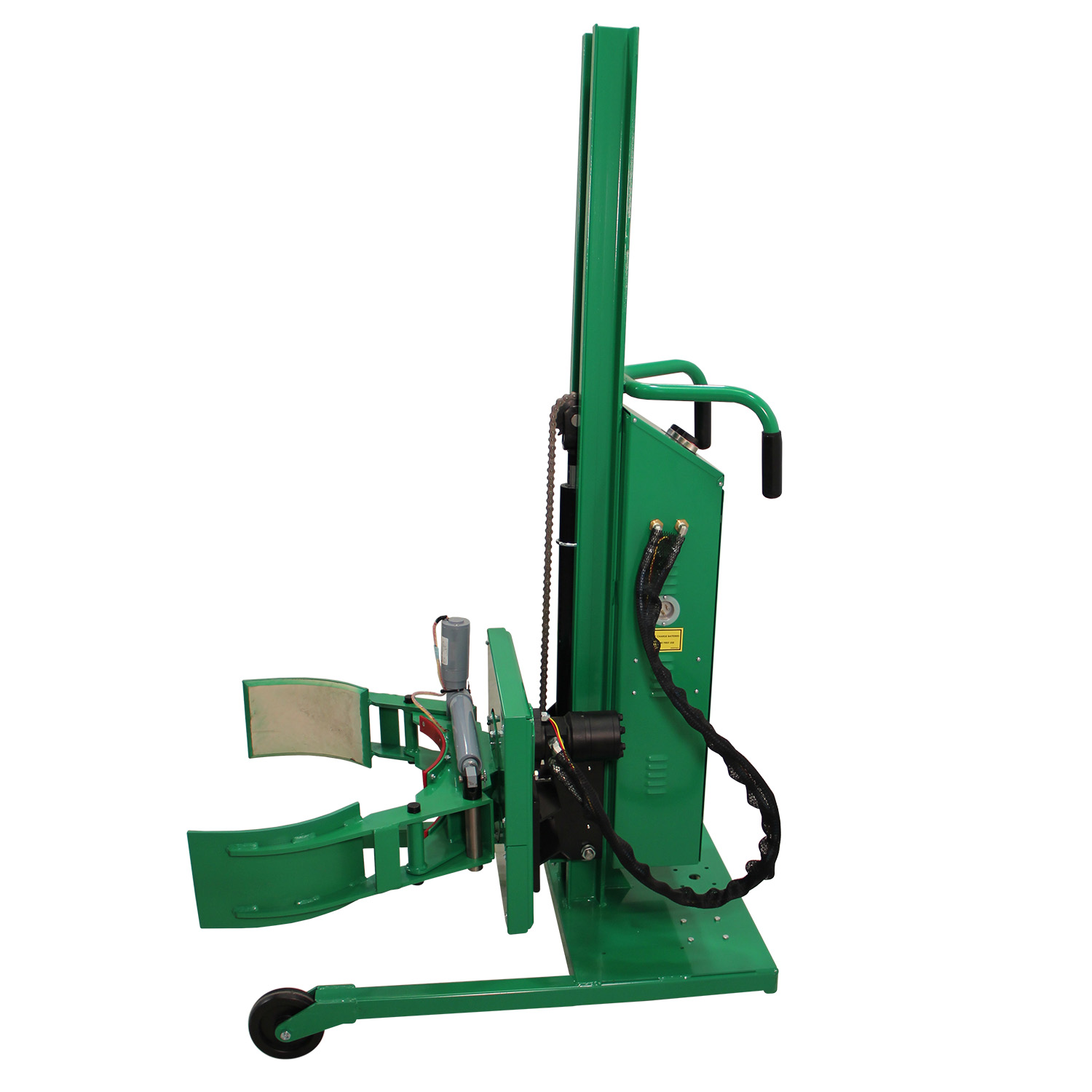

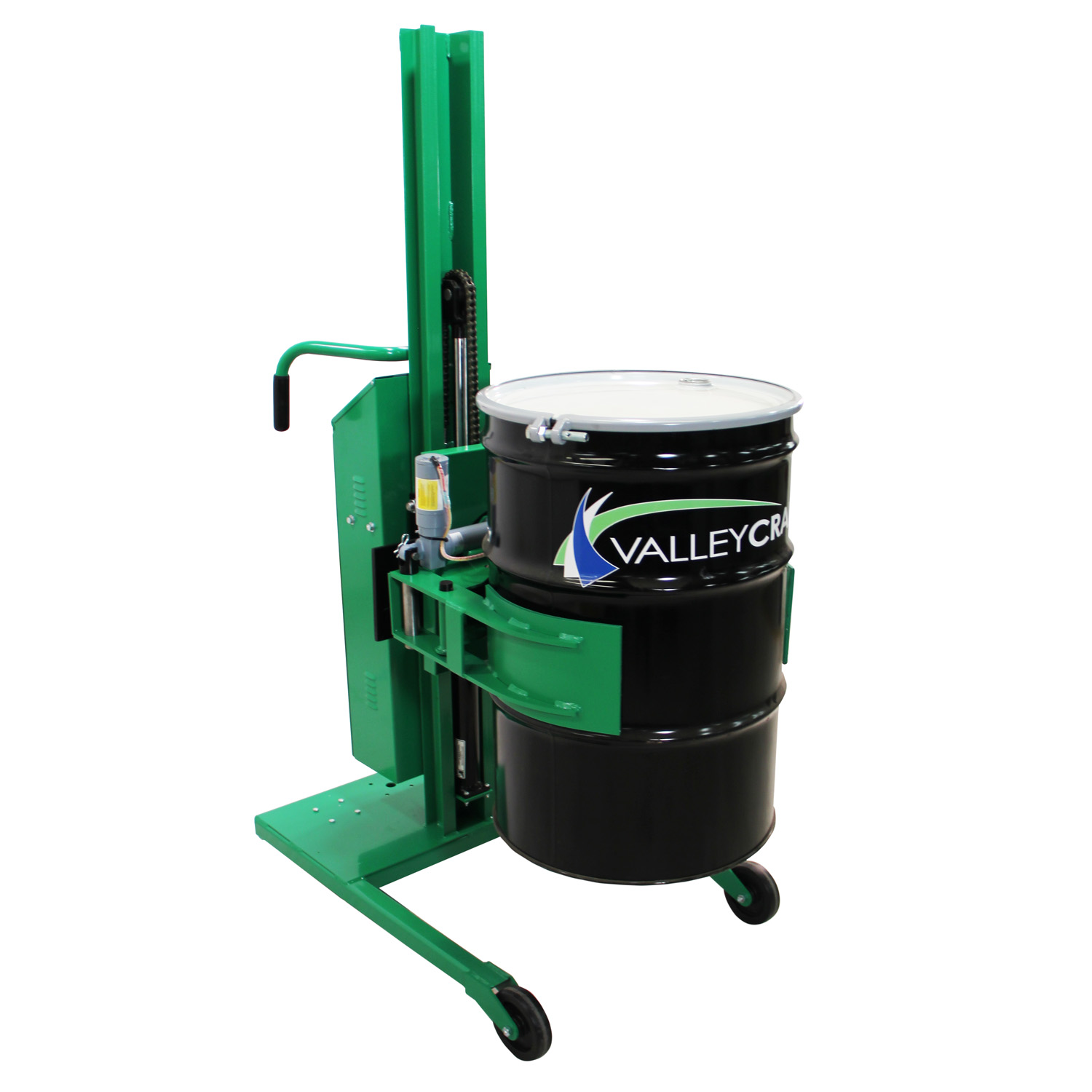

Valley Craft’s 78” Semi-Powered Drum Lifts and Rotators simplifies the lifting and rotating of drums by utilizing power. Drums electronically clamp and lift up to 71” in height in less than 30 seconds, and can hydraulically rotate up to 360° continuously in either direction. Compatible with all drum styles (steel, plastic and fiber), units offer convenient push/pull transporting as needed. The Grip configuration (Roto-Grip) combines jaws with an electronic actuator to grab drums (18-28”), requiring no manual assistance. With an 800 lb. capacity it is simple to maneuver unit on (4) casters (2) 6” front rigid, and (2) 4” rear swivel). Power source is a 12V DC battery (included) that plugs into any standard outlet using an extension cord (not included). Designed as a standalone lift and rotator, forklift assistance is not required. Standard straddle units have extended front legs that go under pallets/shelving or on the outside of the drums when being handled. Optional floor locks are available (sold separately). Valley Craft’s Semi-Powered Drum Lifts and Rotators improve the safety and productivity of any facility that is lifting, rotating, and transporting drums. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

Key Features

  • Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
  • Standalone unit (no forklift required).

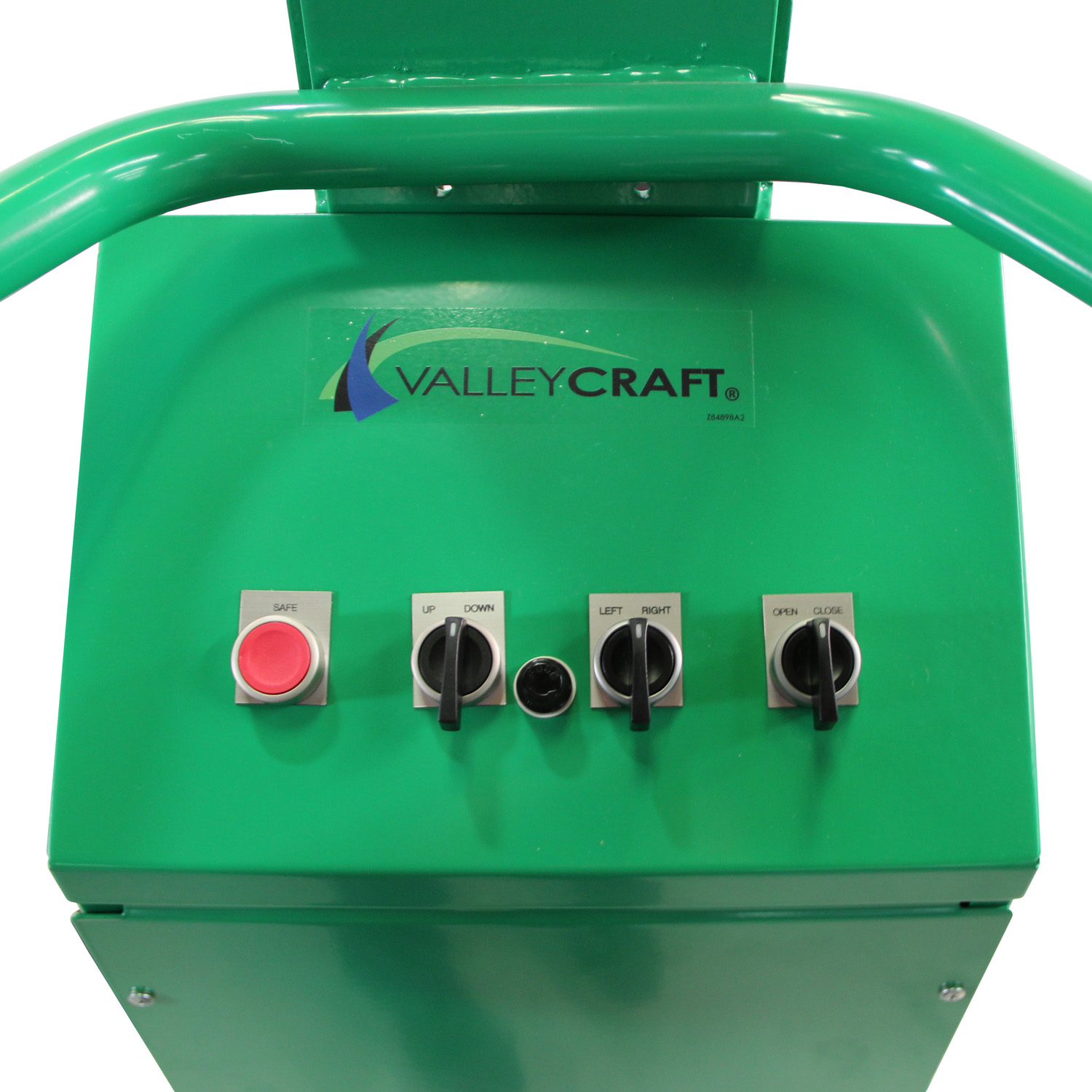

  • 24V battery powered lift and rotate, manual drive.

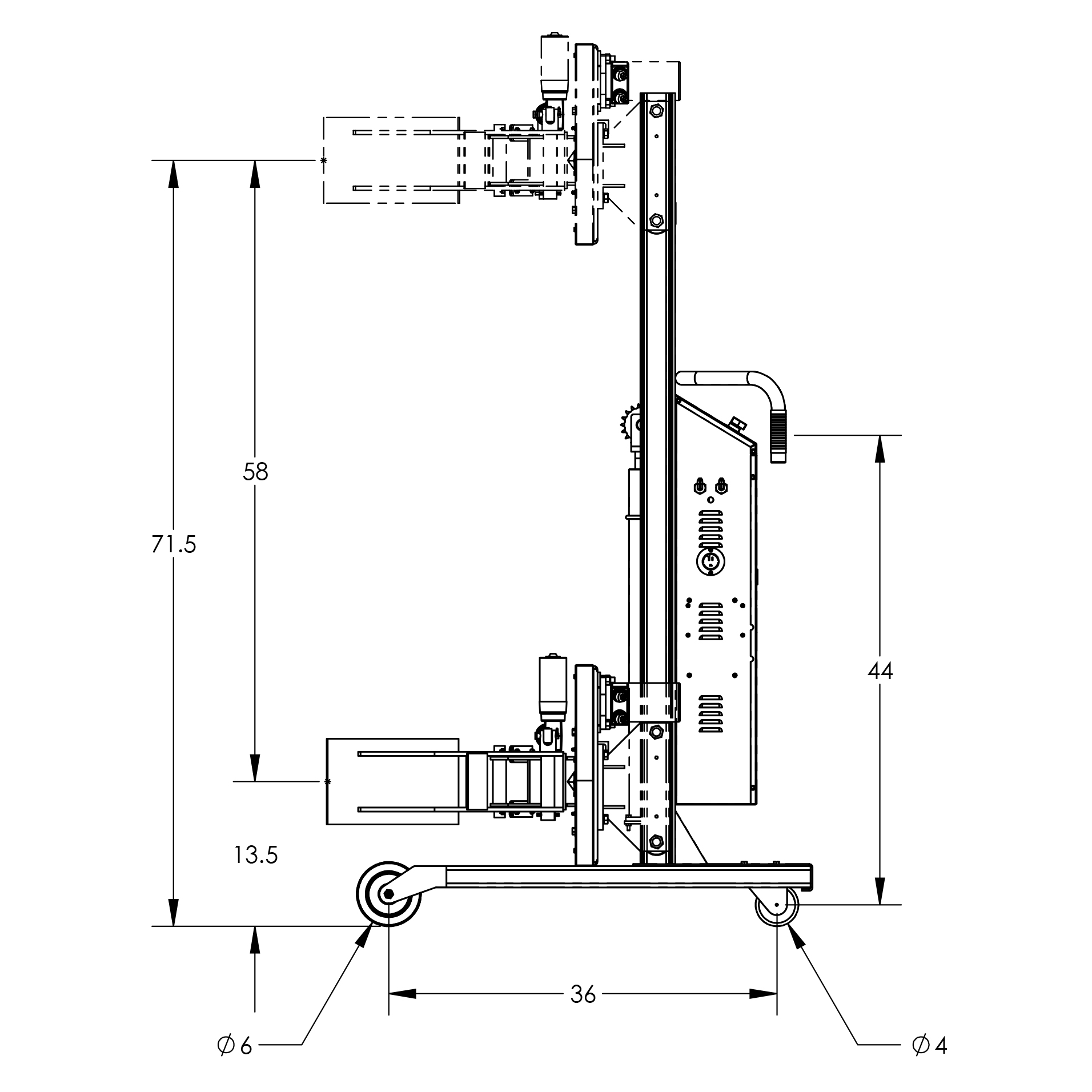

  • Raise middle of drum to a maximum height of 71” off the floor.
  • Minimum center grip height of 13” off the floor.
  • Rotate 360° continuously in either direction, at 6 RPM
  • Straddle legs extend under pallets, shelving, or on outside of drums.

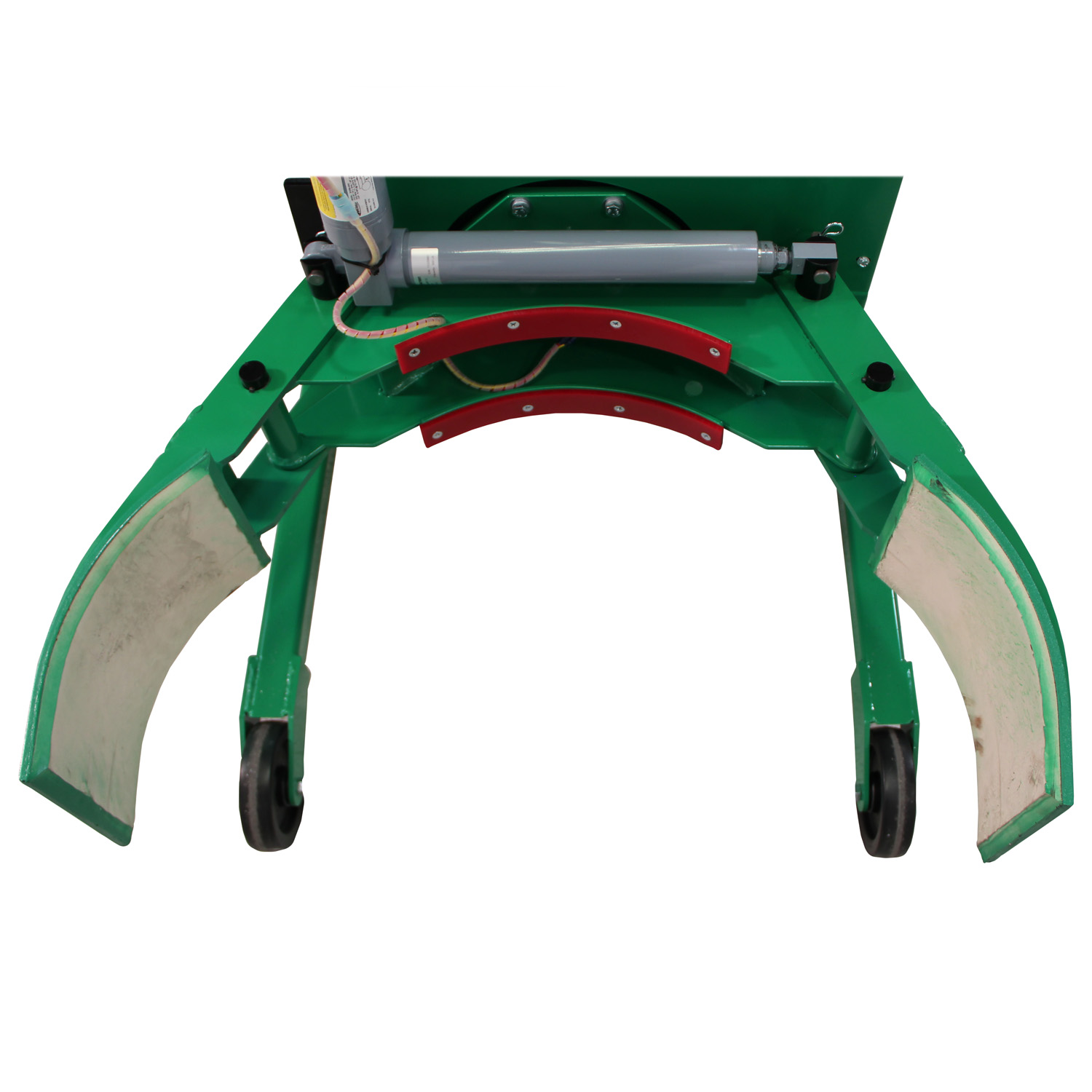

  • Electronic jaws for securing drums.
  • Compatible with steel/plastic/fiber drums, 30-55 gallons (18-24” in diameter).

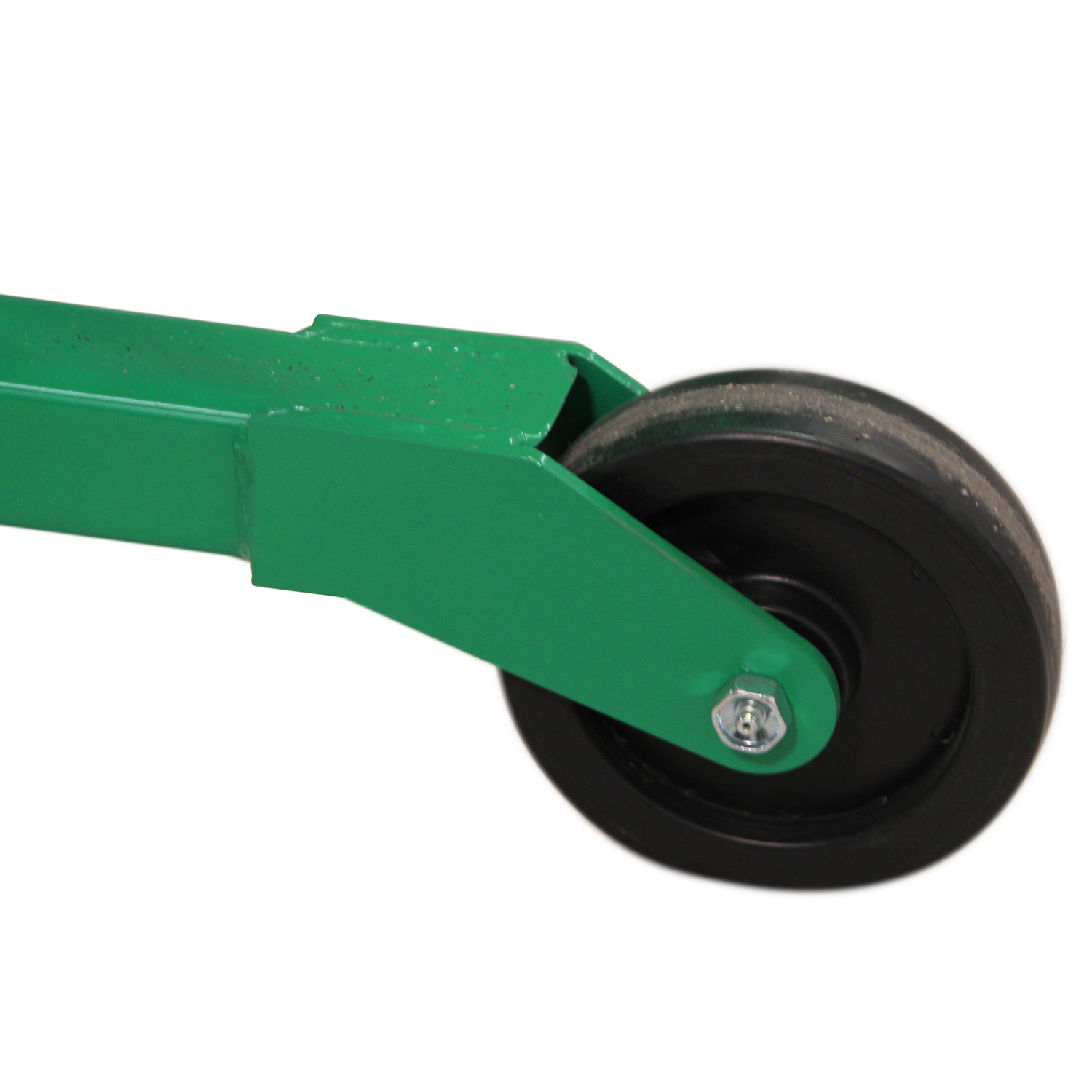

  • Manuevers easily on 4 casters: (2) 6" front rigid, (2) 4" rear swivel.

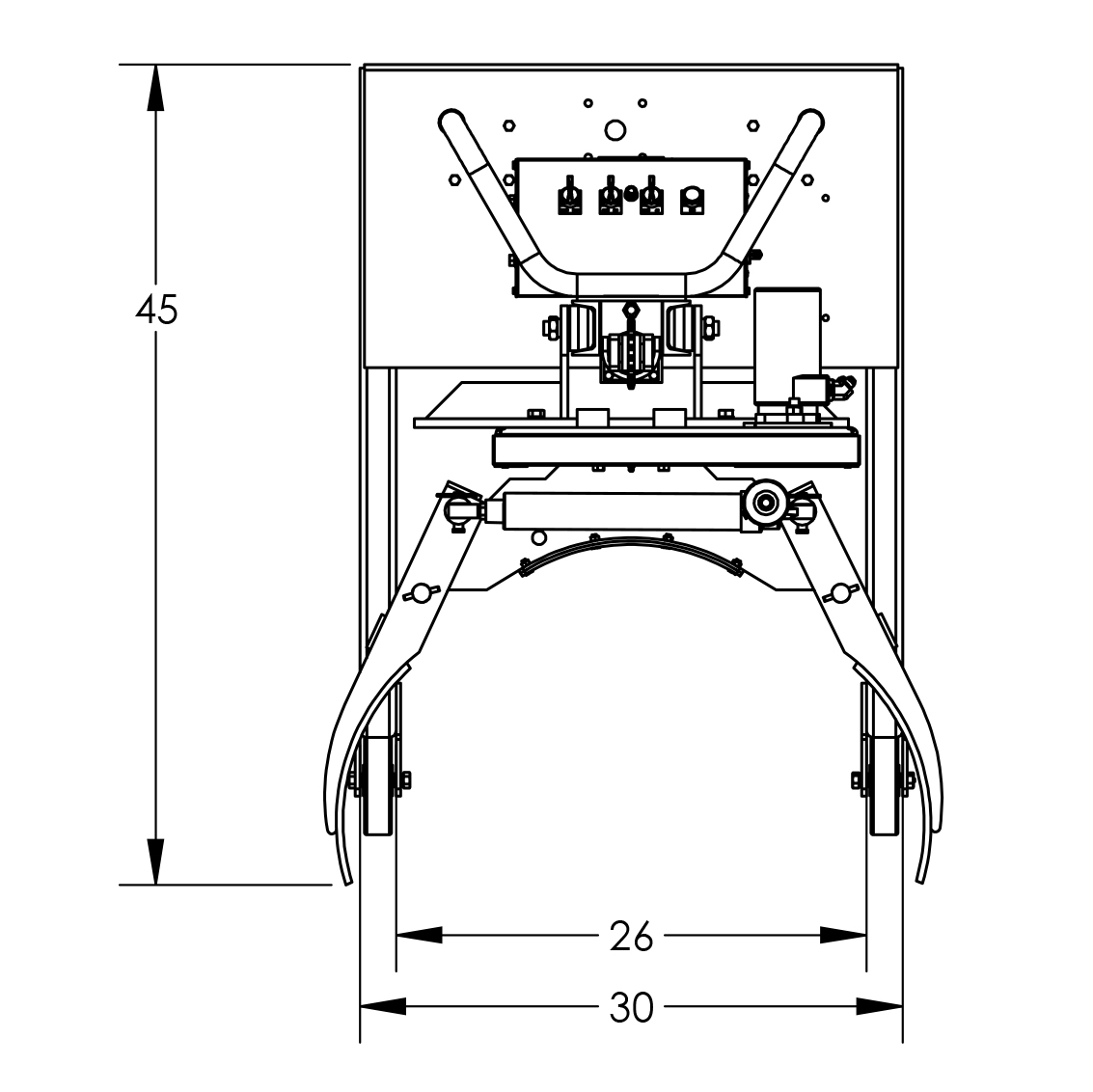

  • 45"L x 30"W x 78"H.
  • 800 lb. capacity.
  • Heavy gauge steel construction.
  • Premium powder coat paint finish in green.
  • Accessory options include: floor lock (sold separately).
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

WEIGHTS & DIMENSIONS

Width30 in.
Length45 in.
Lift Height71 in.
Overall Dimensions L x W x H (in)45 x 30 x 78
Product Weight (lb)560 lb
Drum Diameter (in)18 - 24"
Drum Capacity (gal)30/55 gal

POWER & DETAILS

ColorGreen
FinishPowder Coat Paint
Drum Typesteel, plastic, and fiber drums, 18 - 24" in diameter
Lift Distance (in)58
Power Source12V Battery Powered, Rechargable
MaterialSteel
Country of OriginU.S.A.
Shipping Class150
NMFC Number188760
