Valley Craft Drum Lift & Rotator - Manual Lift/Rotate/Drive, Strap Connection, Straddle, 90"H, 800 lb. CapacityDouble-tap to zoom

Valley Craft · Drum & Material Handling

Valley Craft Drum Lift & Rotator - Manual Lift/Rotate/Drive, Strap Connection, Straddle, 90"H, 800 lb. Capacity

Model: F88564B8

2 Weeks

Configure — 22 options

Selected model: F88564B8

List Price

$8,509.00

Freight Included — Delivered to Your Dock
Authorized Valley Craft DealerFactory-New — Ships From the ManufacturerOEM Warranty — we advocate for you

Capacity / Key Spec

See specs

Valley Craft’s 90” Manual Powered Drum Lift and Rotator simplifies the lifting and rotating of drums for easy transporting, placing, or dumping throughout your facility. Compatible with all drum styles (steel, plastic and fiber), drum handling and maneuvering has never been easier. Drum lift heights up to 84” in less than 30 seconds, and a 360° continuous rotation in either direction provides versatility to fit your application. The included straps are compatible with drums ranging from 14-24” in diameter and secures them to the unit. With an 800 lb. capacity it is simple to maneuver on (4) casters ((2) 6” front rigid, and (2) 4” rear swivel). Designed as a standalone lift and rotator, forklift assistance is not required. This standard straddle unit has extended front legs that go under pallets/shelving or on the outside of the drums for easy handling. Foot pedal lifting and hand crank rotating encourage safe and ergonomic handling while ensuring your unit always has power. Optional floor locks are available (sold separately). Valley Craft’s Manual Powered Drum Lifts and Rotator improve the safety and productivity of any facility that is lifting, rotating, and transporting drums. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

Key Features

  • Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
  • Standalone unit (no forklift required).
  • Manual drive, lift, and rotate.
  • Lift using ergonomic foot pump.
  • Raise middle of drum to a maximum height of 84” off the floor.
  • Minimum center grip height of 13” off the floor.
  • Rotate 360° continuously in either direction using hand crank
  • Straddle legs extend under pallets, shelving, or on outside of drums.
  • Dual ratchet straps for securing drums.
  • Compatible with steel/plastic/fiber drums, 10-55 gallons (14-24” in diameter).
  • Manuevers easily on 4 casters: (2) 6" front rigid, (2) 4" rear swivel.
  • 43"L x 30"W x 90"H.
  • 800 lb. capacity.
  • Heavy gauge steel construction.
  • Premium powder coat paint finish in green.
  • Accessory options include: floor lock (sold separately).
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

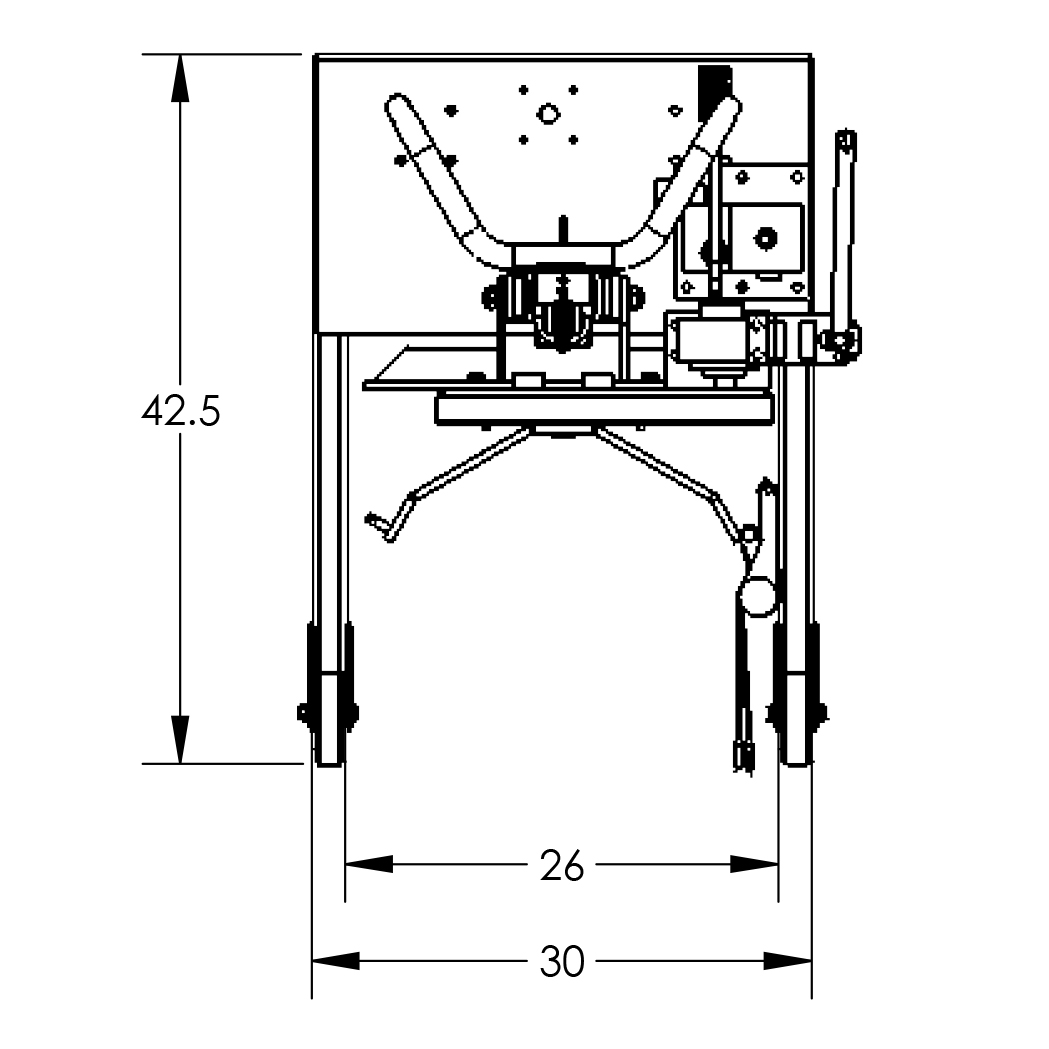

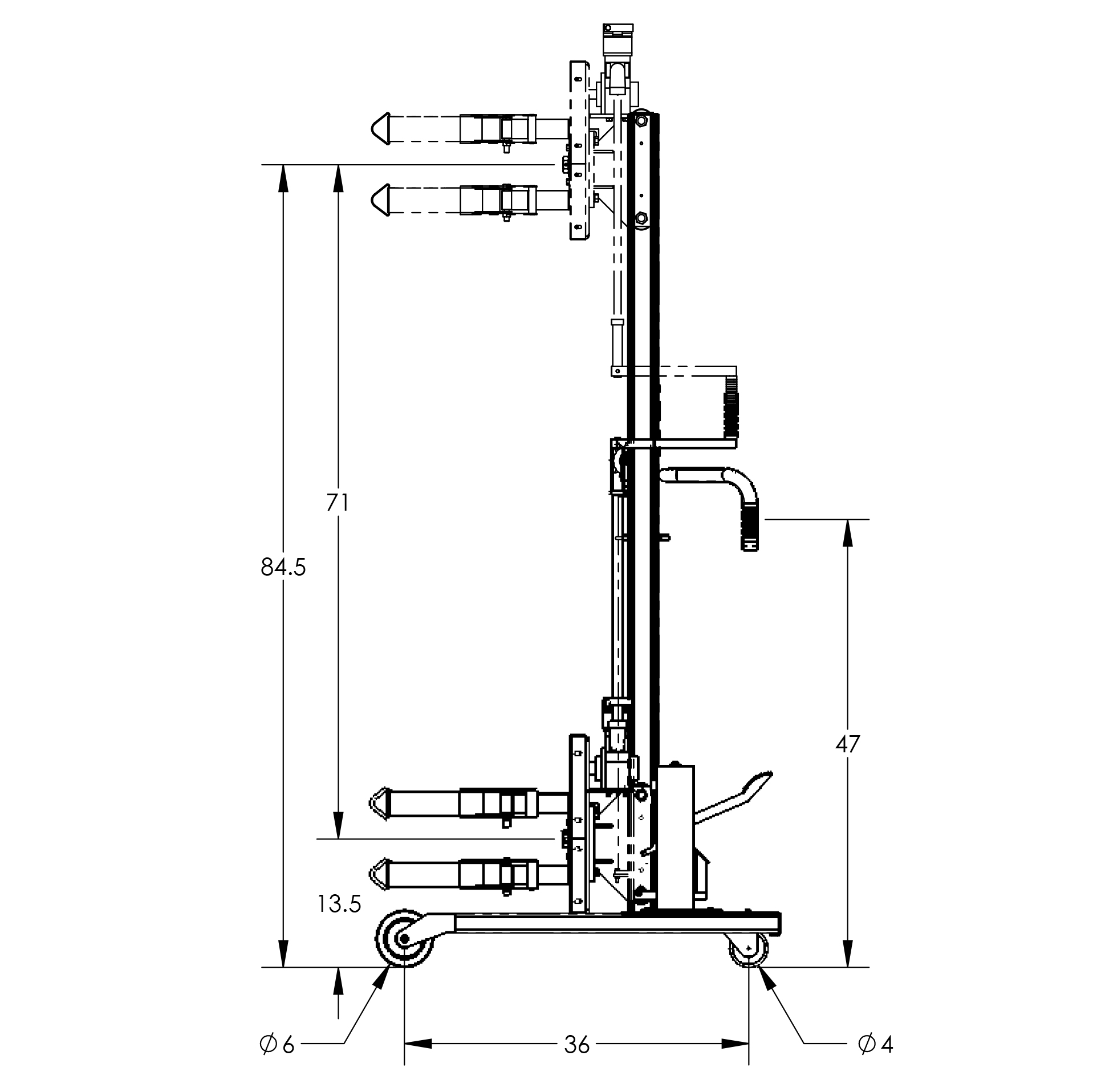

WEIGHTS & DIMENSIONS

Width30 in.
Length43 in.
Lift Height84 in.
Overall Dimensions L x W x H (in)43 x 30 x 90
Product Weight (lb)430 lb
Drum Diameter (in)14 - 24"
Drum Capacity (gal)30/55 gal
CapacitySee specs

POWER & DETAILS

ColorGreen
FinishPowder Coat Paint
Drum Typesteel, plastic, and fiber drums, 14 - 24" in diameter
Lift Distance (in)71
Power SourceManual Powered
MaterialSteel
Country of OriginU.S.A.
Model #F88564B8

All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price, and liftgate service is free whenever you need it. Other accessorial fees (residential, limited access) are disclosed in your quote before confirmation.
