Valley Craft Drum Lift & Rotator - Manual Lift/Rotate/Drive, Strap Connection, Counterweighted, 78"H, 800 lb. Capacity
Model: F88580B8
List Price
$10,189.00
Free shipping · standard freight included
Capacity / Key Spec
See specs
Valley Craft’s 78” Manual Powered Drum Lift and Rotator simplifies the lifting and rotating of drums for easy transporting, placing, or dumping throughout your facility. Compatible with all drum styles (steel, plastic and fiber), drum handling and maneuvering has never been easier. Drum lift heights up to 71” in less than 30 seconds, and a 360° continuous rotation in either direction provides versatility to fit your application. The included straps are compatible with drums ranging from 14-24” in diameter and secures them to the unit. With an 800 lb. capacity it is simple to maneuver on (4) casters ((2) 6” front rigid, and (2) 4” rear swivel). Designed as a standalone lift and rotator, forklift assistance is not required. This counter-weighted model improves handling with the ability to butt directly up to pallets, shelving, or other units without having to worry about extended front legs getting in the way that some other units have. Foot pedal lifting and hand crank rotating encourage safe and ergonomic handling while ensuring your unit always has power. Optional floor locks are available (sold separately). Valley Craft’s Manual Powered Drum Lifts and Rotator improve the safety and productivity of any facility that is lifting, rotating, and transporting drums. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.
Key Features
- Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
- Standalone unit (no forklift required).
- Manual drive, lift, and rotate.
- Lift using ergonomic foot pump.

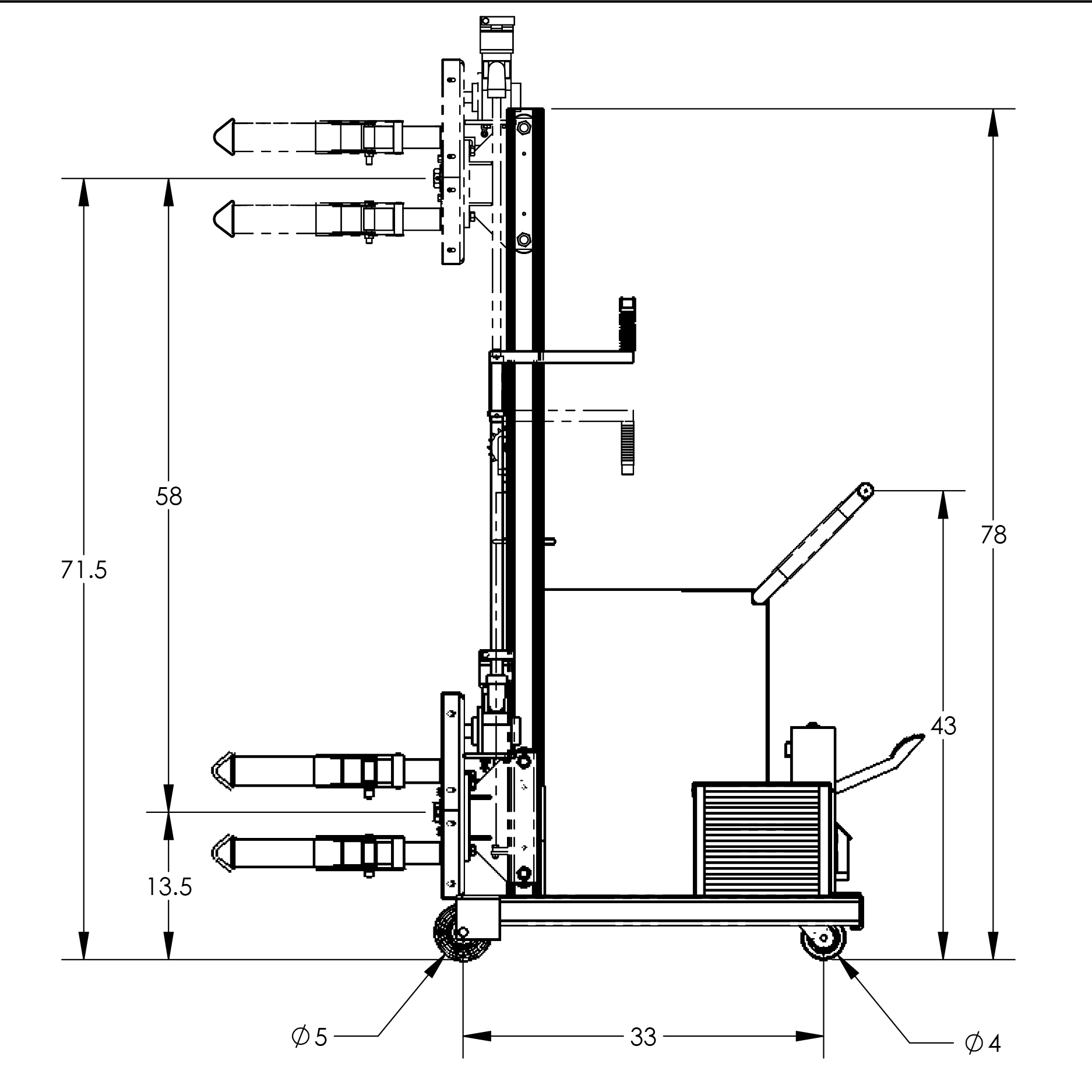

- Raise middle of drum to a maximum height of 71” off the floor.
- Minimum center grip height of 13” off the floor.
- Rotate 360° continuously in either direction using hand crank
- Counterweighted unit butts directly up to pallets, shelving, or other items.
- Dual ratchet straps for securing drums.
- Compatible with steel/plastic/fiber drums, 10-55 gallons (14-24” in diameter).
- Manuevers easily on 4 casters: (2) 6" front rigid, (2) 4" rear swivel.

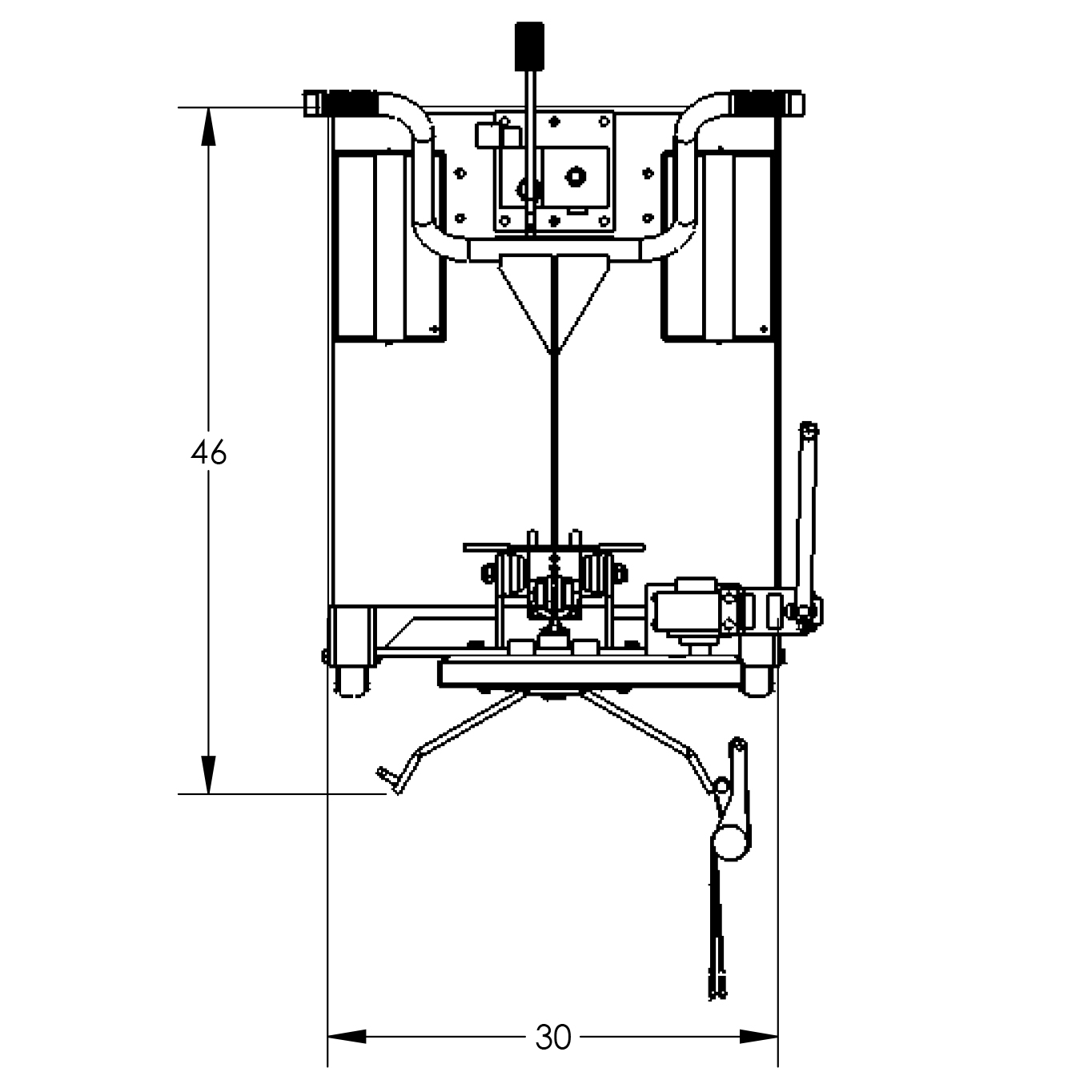

- 46"L x 30"W x 78"H.
- 800 lb. capacity.
- Heavy gauge steel construction.
- Premium powder coat paint finish in green.
- Accessory options include: floor lock (sold separately).
- Ships fully assembled, ready to use.
- Made in the U.S.A.
WEIGHTS & DIMENSIONS
| Width | 30 in. |
| Length | 46 in. |
| Lift Height | 71 in. |
| Overall Dimensions L x W x H (in) | 46 x 30 x 78 |
| Product Weight (lb) | 985 lb |
| Drum Diameter (in) | 14 - 24" |
| Drum Capacity (gal) | 30/55 gal |
POWER & DETAILS
| Color | Green |
| Finish | Powder Coat Paint |
| Drum Type | steel, plastic, and fiber drums, 14 - 24" in diameter |
| Lift Distance (in) | 58 |
| Power Source | Manual Powered |
| Material | Steel |
| Country of Origin | U.S.A. |
| Shipping Class | 150 |
| NMFC Number | 188760 |
Other Configurations
All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price. Accessorial fees (liftgate, residential, limited access) are disclosed in your quote before confirmation.
