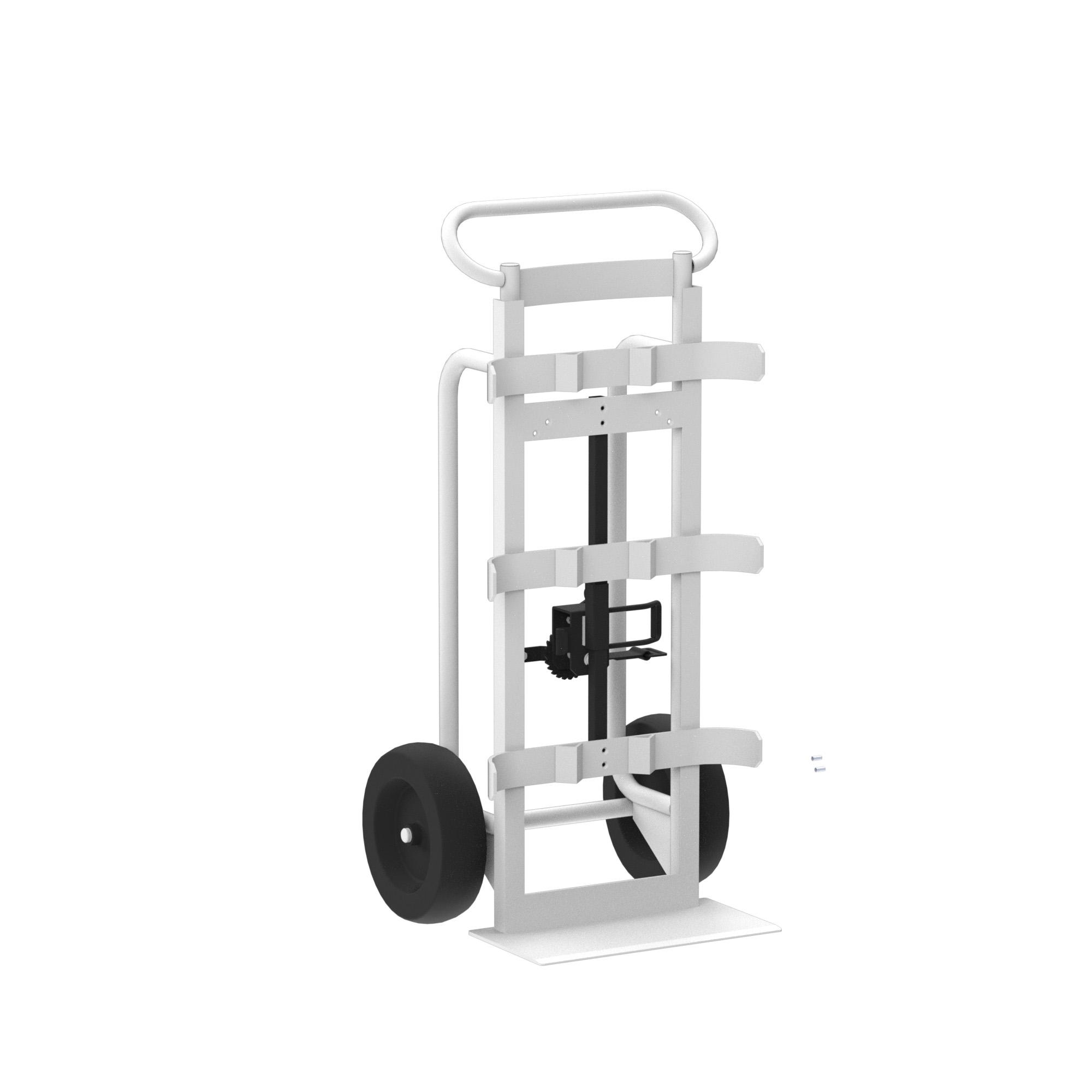

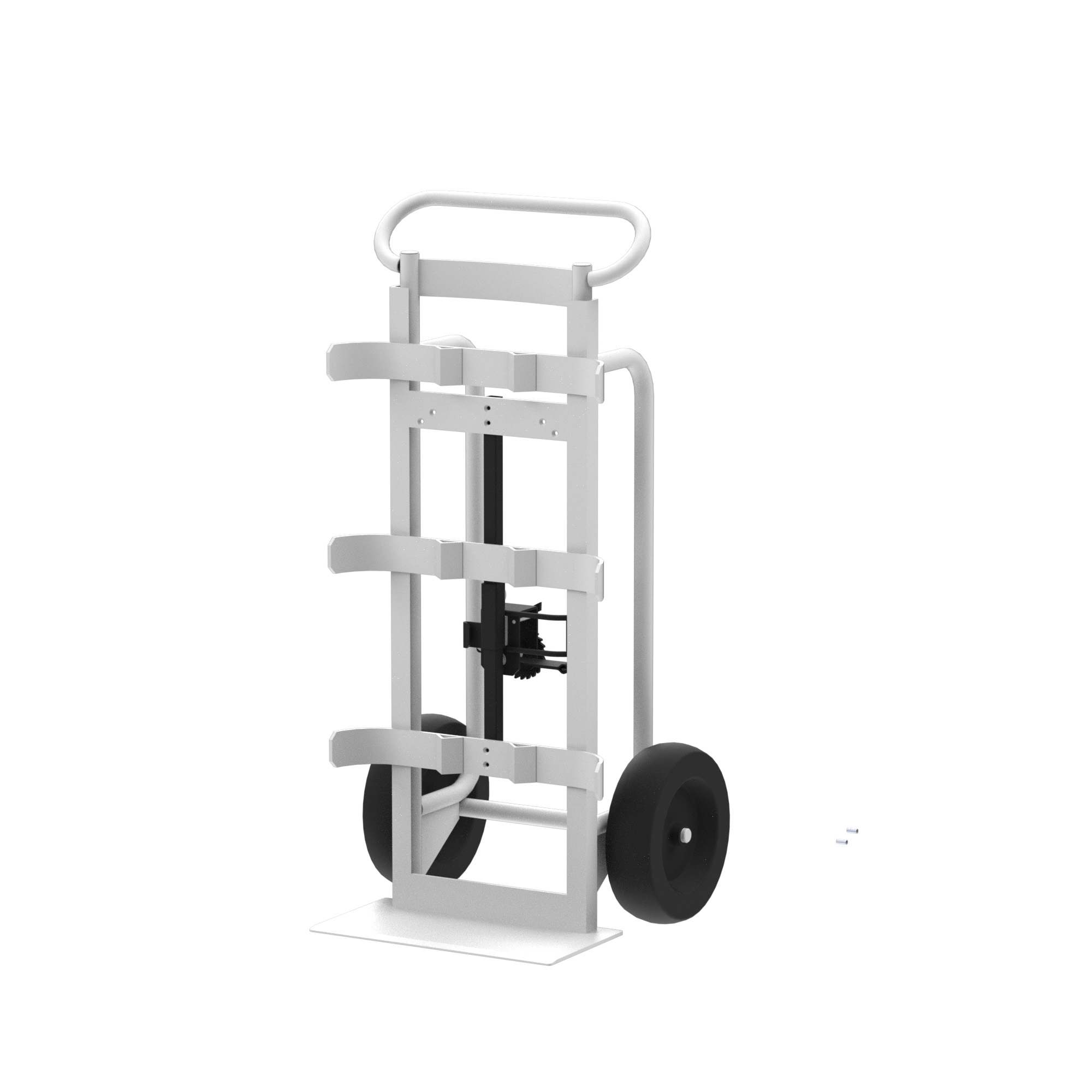

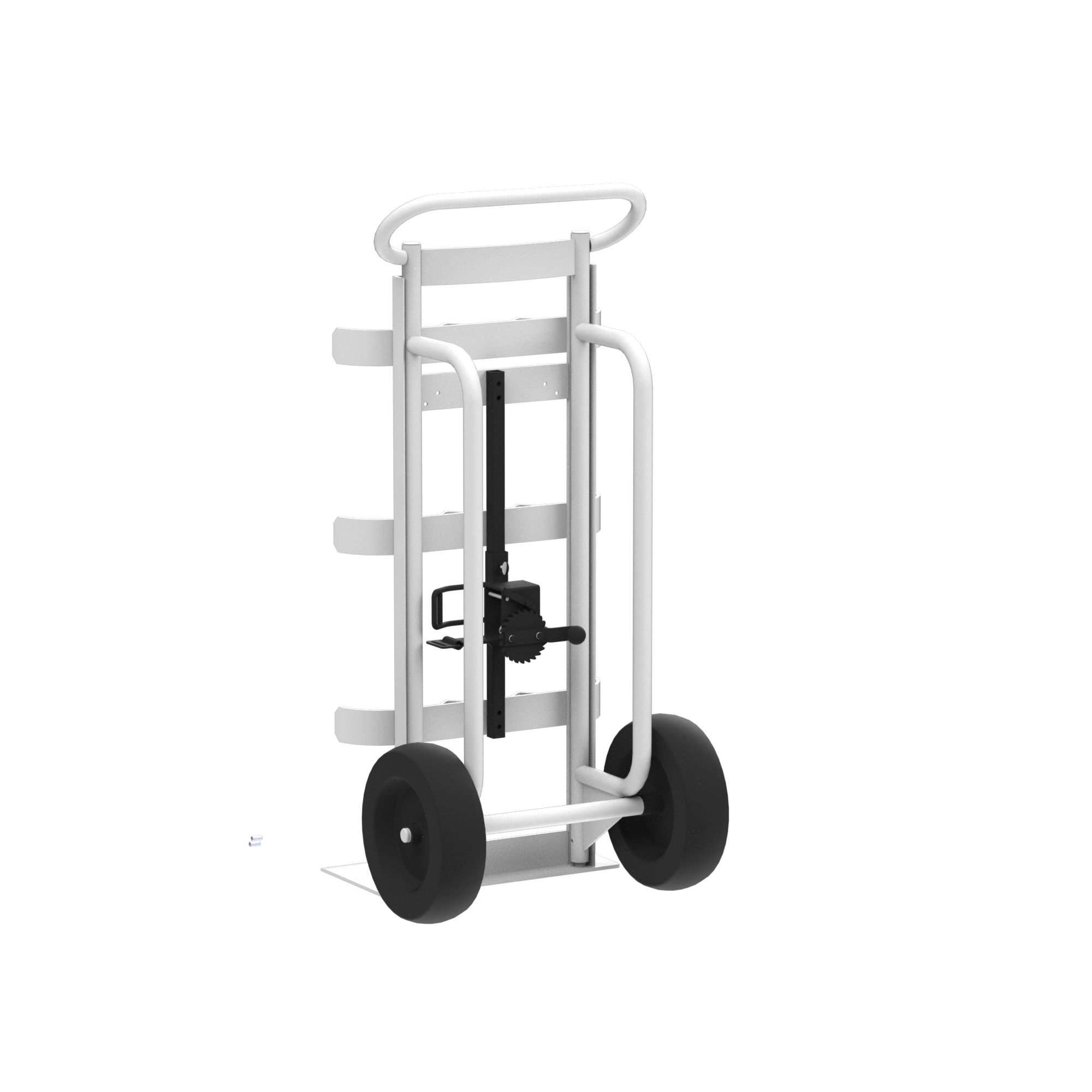

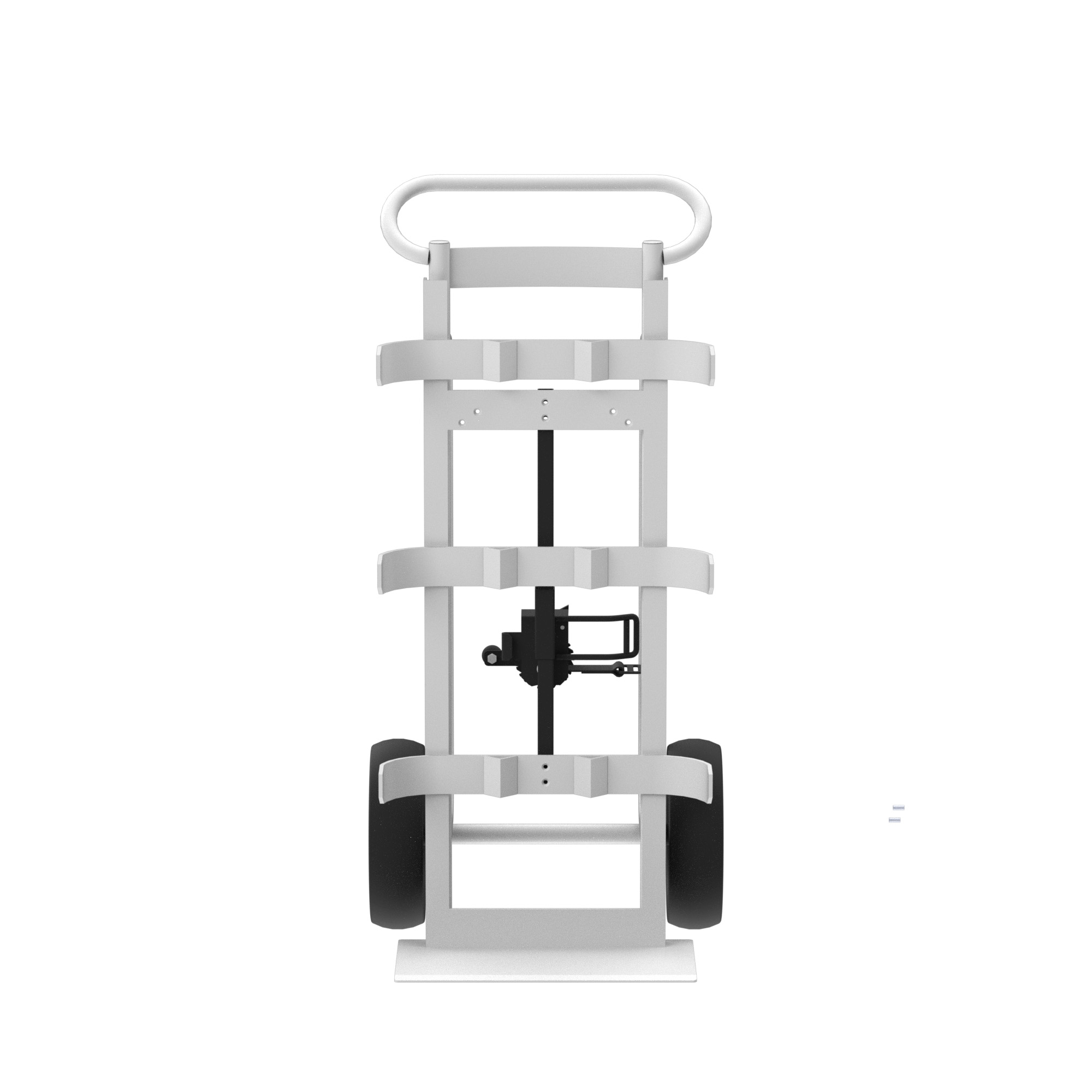

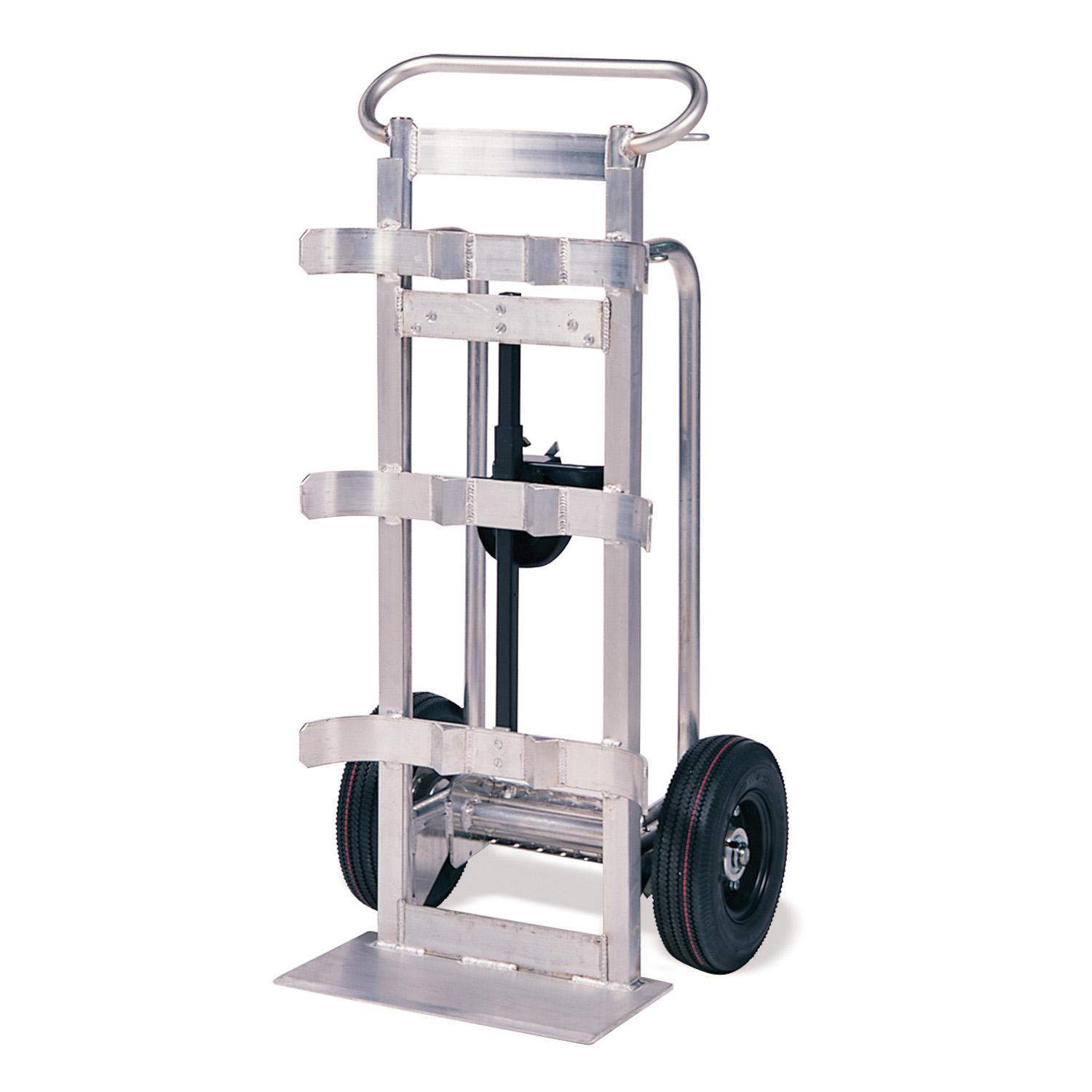

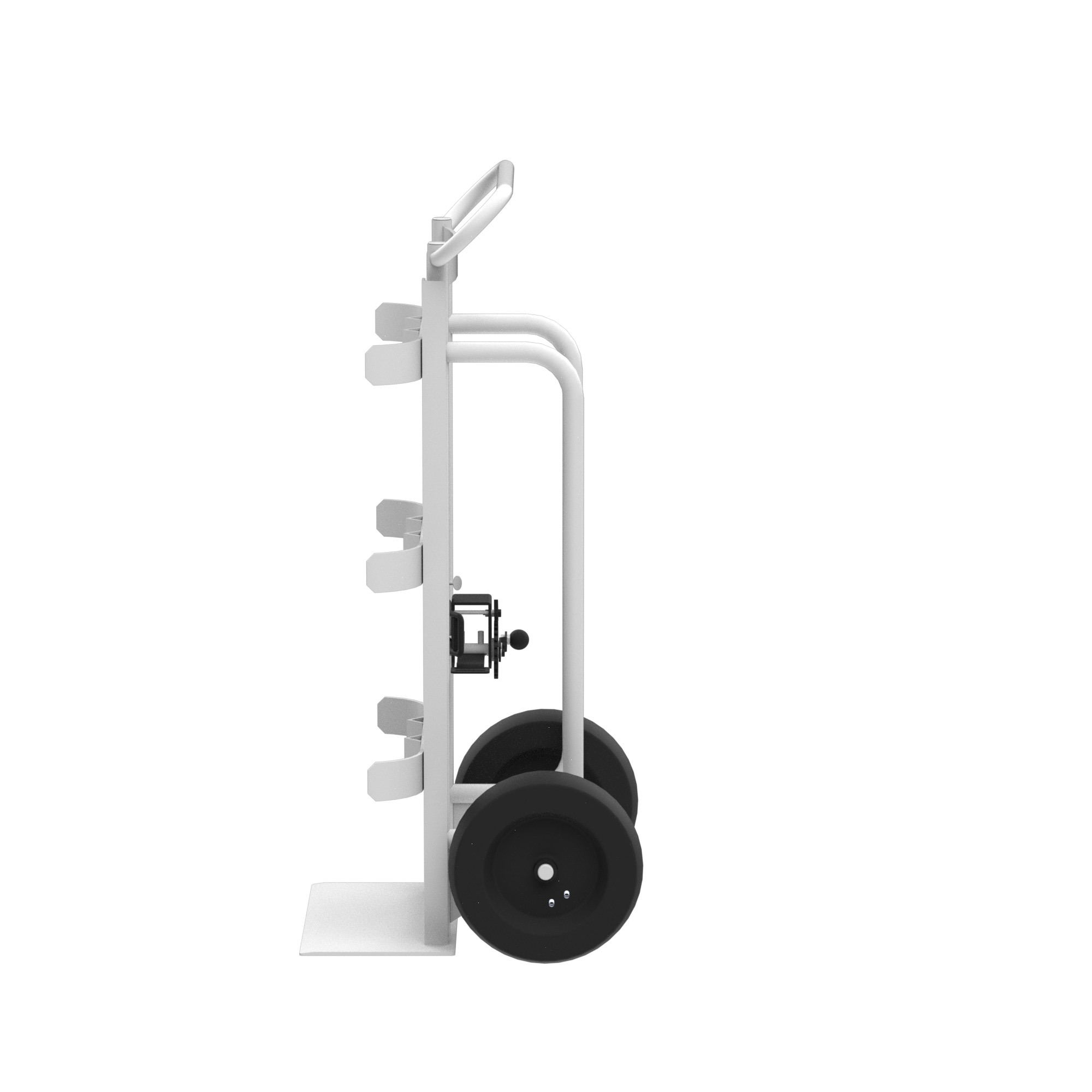

Valley Craft Cylinder Hand Truck, Double - (2) 9" Cylinders, Aluminum, (2) Pneumatic Wheels, 600 lb. Capacity
Model: F86070A9
List Price
$1,949.00
Free shipping · standard freight included
Capacity / Key Spec
See specs
Valley Craft’s Double Cylinder Hand Truck creates a safe and secure means to transport gas cylinders throughout your facility. Constructed of premium aluminum with solid welds, this hand truck provides superior durability. Cylinder hand trucks are lightweight and spark resistant. Load capacity is 600 lbs. and can be easily maneuvered across various terrain on (2) 12” pneumatic wheels. A retractable safety strap is built in to help secure cylinders. Simply disconnect using the quick release lever and retract the strap into the connected base to ensure it is out of the way when not in use. 1” steel axles are fully enclosed in a protective housing with sealed bearings to improve the durability, functionality, and longevity of your unit. The deep frame design provides added protection for operators should it fall back, as well as an alternative method for loading cylinders (while laying on its back). This double cylinder hand truck is compatible with up to 9” diameter tanks, which is the majority of what is in the market. Valley Craft’s Double Cylinder Hand Trucks improve handling and can withstand rigorous use, whether on delivery trucks or throughout facilities. Products are shipped fully assembled, ready-to-use, and are made in the U.S.A.
Key Features
- Provides safe and secure transportation of gas cylinders.
- Aluminum frame is lightweight for easy handling, and spark resistant.
- 19"W x 11 3/4"D steel shoe.
- Built-in retractable nylon safety strap secures cylinders.
- Compatible with cylinders up to 9” in diameter.
- Maneuvers easily on (2) 12” pneumatic wheels.
- Ergonomic loop handle for easy maneuvering.

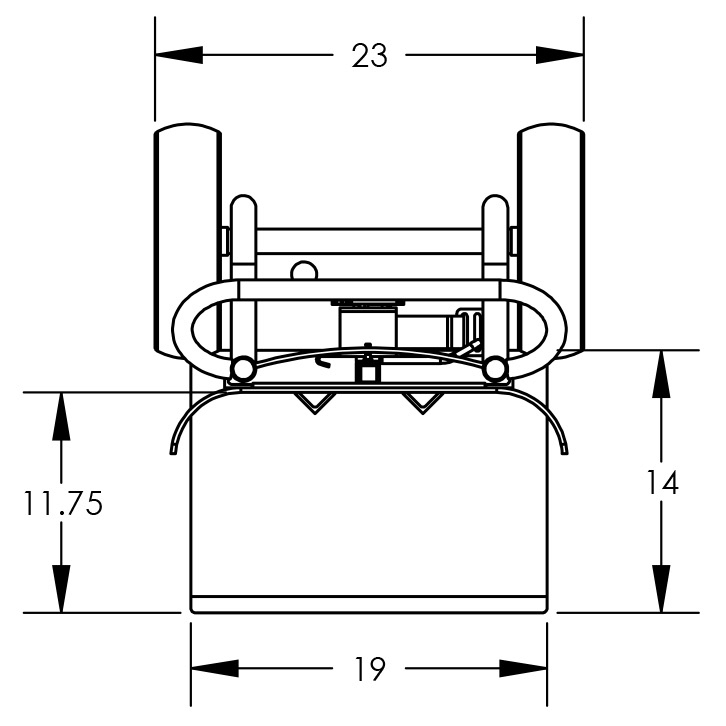

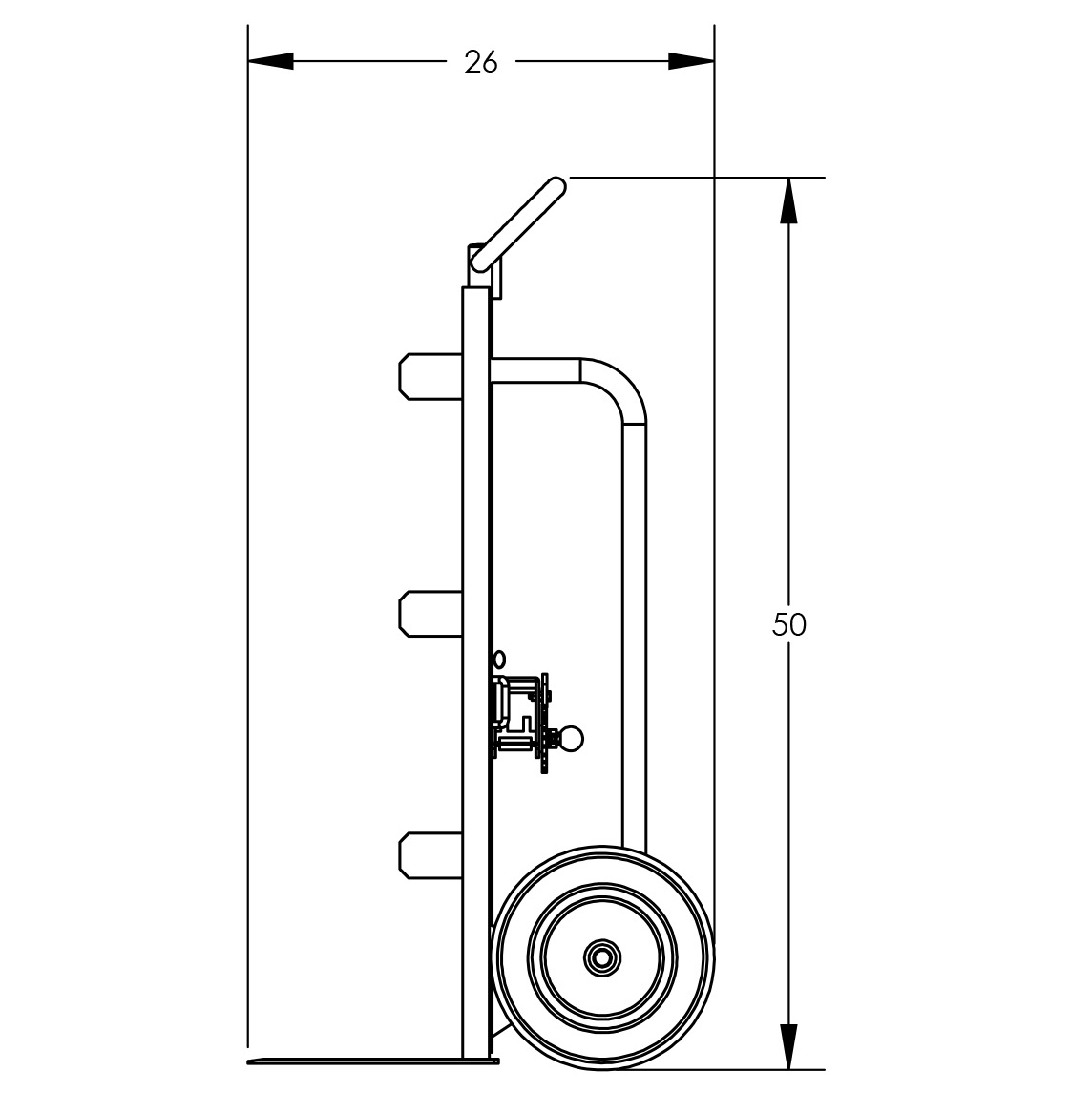

- 23"W x 26"D x 50"H.
- 600 lb. capacity.
- Heavy duty aluminum construction with solid welds.
- Ships fully assembled, ready to use.
- Made in the U.S.A.
WEIGHTS & DIMENSIONS
| Overall Dimensions W x D x H (in) | 23 x 26 x 50 |
| Product Weight (lb) | 56 lb |
| Drum Diameter (in) | 9" |
POWER & DETAILS
| Color | Silver |
| Finish | Aluminum |
| Drum Type | Cylinder |
| Material | Aluminum |
| Frame Material | Aluminum |
| Country of Origin | U.S.A. |
| Shipping Class | 250 |
| NMFC Number | 188560 |
