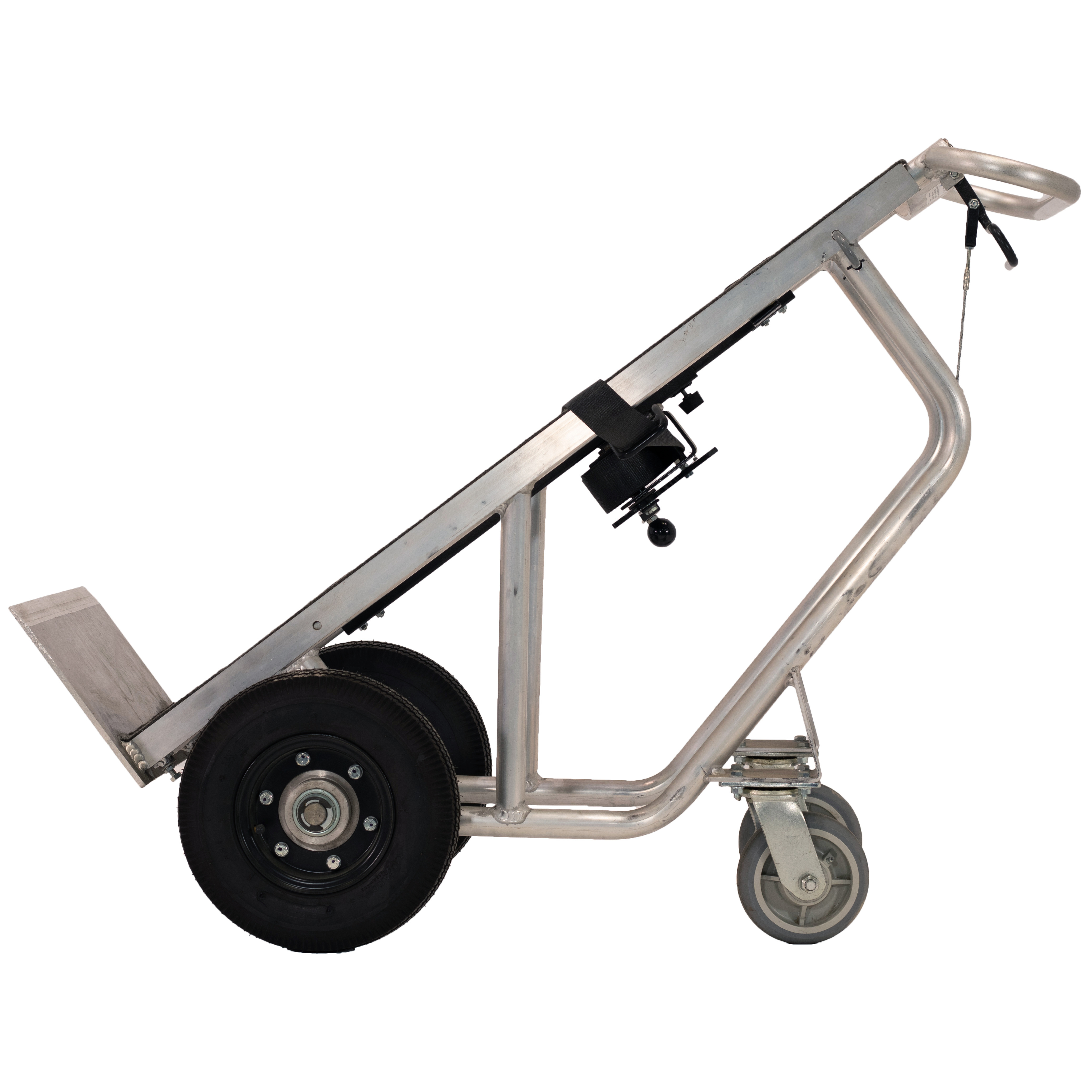

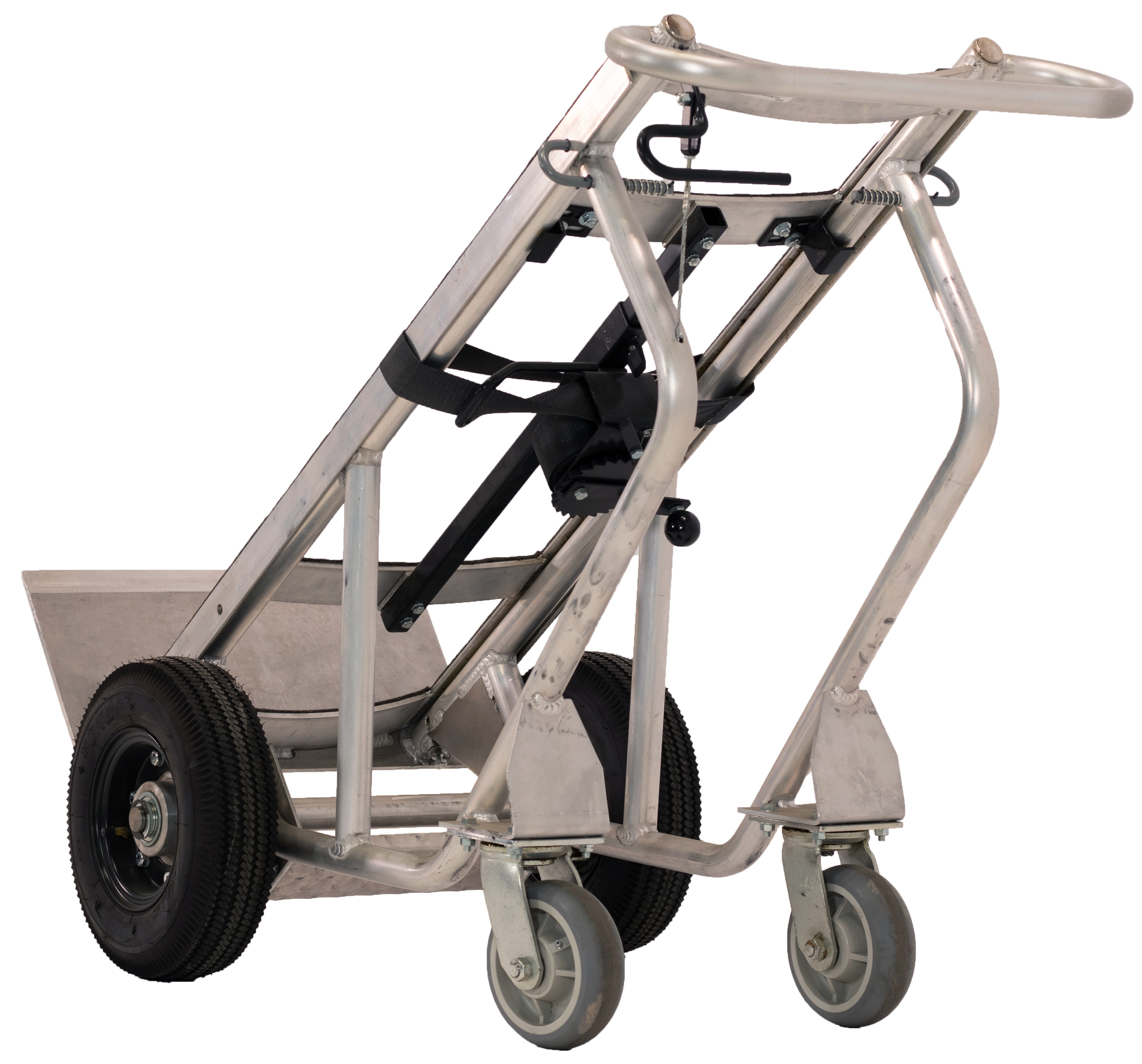

Valley Craft 4-Wheel Deluxe Commercial Hand Truck, Spring-Loaded Frame - Aluminum, (2) Pneumatic (2) Rear Rubber Swivel Wheels, 1000 lb. Capacity, 15' Retractable Safety Strap
Model: F89699
List Price
$2,799.00
Free shipping — standard LTL freight included to commercial addresses
Residential, jobsite, or liftgate delivery? See delivery options →
Capacity / Key Spec
See specs
Valley Craft’s Spring-Loaded Frame Commercial Hand Truck significantly improves the handling of casino slot machines and other tall or large similar sized items. This unit is full of premium features such as the frame suspension design. The frame-and-shoe assembly slides down as the truck is tilted back. This design helps operators easily break-over and tilt back heavy loads. It also improves the visibility and handling when maneuvering tall loads. A lock pin is included to lock this suspension feature, sometimes preferred or unnecessary to have suspension for certain smaller loads. Constructed of premium aluminum with solid welds, this hand truck provides superior durability. Unit is lightweight, spark resistant, and has a capacity of 1,000 lbs. Easily maneuver the hand truck over uneven surfaces or around corners on (4) premium wheels, (2) 12” pneumatic front wheels and (2) 6” rubber rear swivel casters. Shoe platform is sized at 19 x 14”. A 15’ retractable nylon strap is built in to help secure large and heavy loads. Simply disconnect using the quick release lever and retract the strap into the connected base to ensure it is out of the way when not in use. The included hand brake gives operators added control and safety while handling heavy loads or on uneven surfaces. This unit has a deep frame design (with 4 wheels) that provides added protection for operators when tilting back heavy loads. Valley Craft’s Spring-Loaded Frame Commercial Hand Trucks are built to withstand the most rigorous use and environments. Products are shipped fully assembled, ready-to-use, and are made in the U.S.A.
Key Features

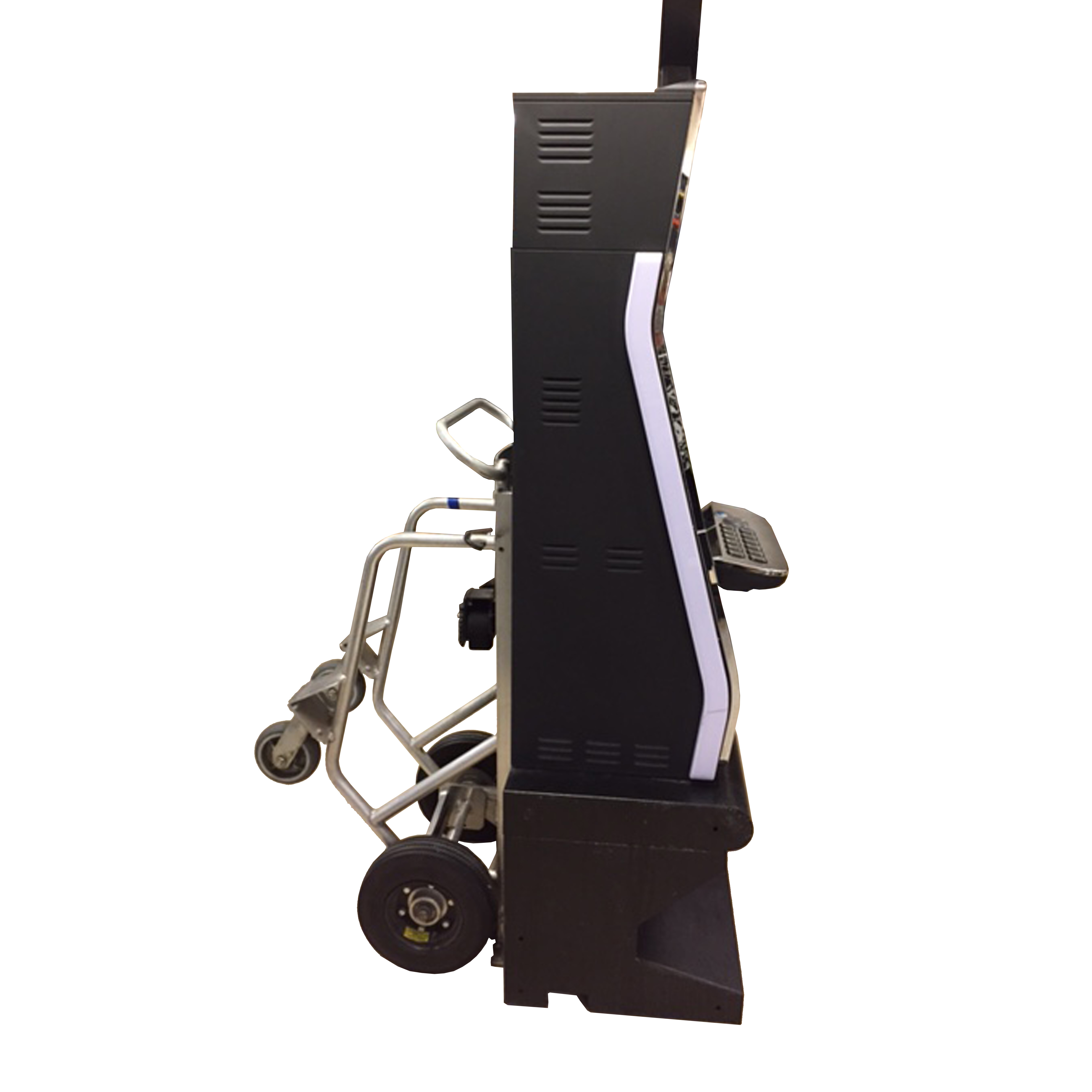

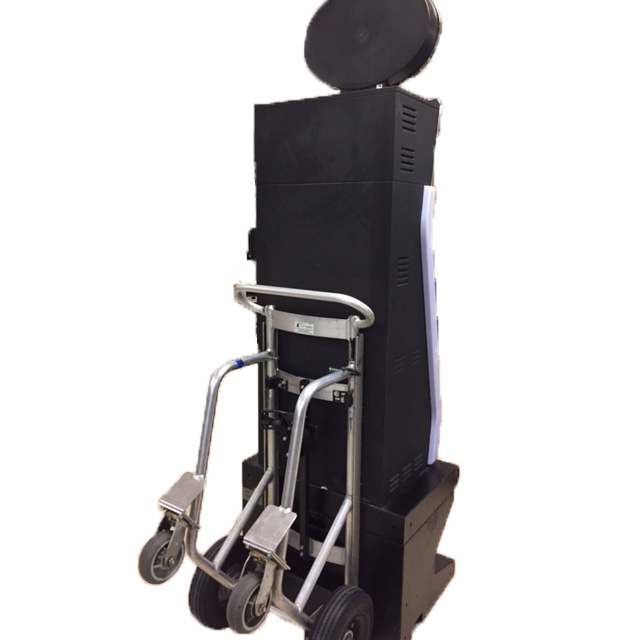

- Ideal for casino slot machines and other large items.
- 4-Wheel design for improved control, handling, and capacity.
- Aluminum frame is lightweight for easy handling, and spark resistant.
- 19"W x 12"D steel shoe.
- Frame suspension allows frame-and-shoe to slide down when truck is tilted back.
- Lowered frame/shoe improves operator’s visibility and handling with tall loads.
- Shoe suspension makes tilting back heavy loads easy.
- Lock pin included to lock suspension feature, if preferred for certain loads.
- 15’ built-in retractable nylon safety strap secures load.
- Maneuvers easily on (4) wheels: (2) 12" front pneumatic, (2) 6" rear rubber swivel casters.
- Hand brake provides added control and safety.
- Ergonomic loop handle for easy maneuvering.

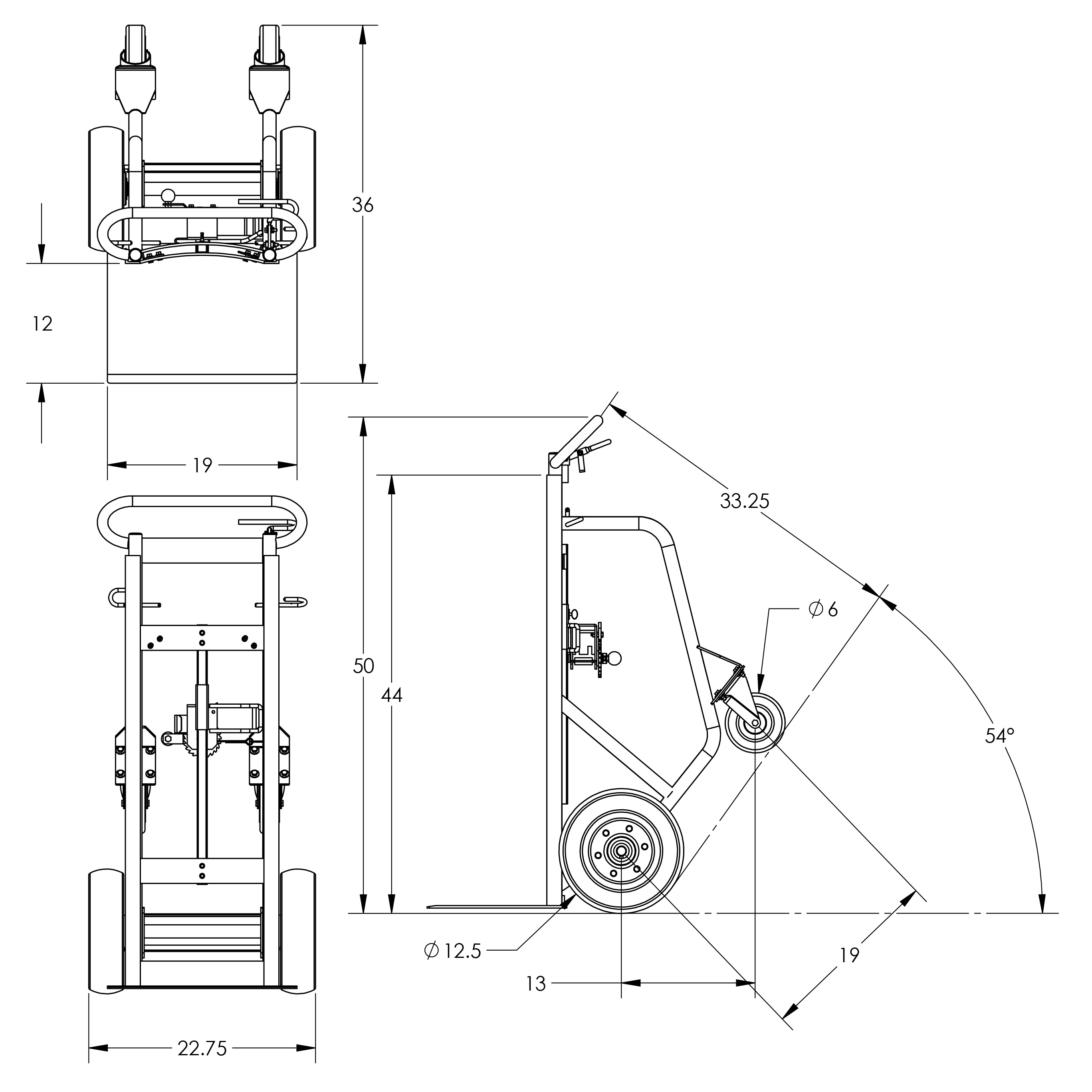

- 23"W x 37"D x 50"H.
- 1,000 lb. capacity.
- Heavy duty aluminum construction with solid welds.
- Ships fully assembled, ready to use.
- Made in the U.S.A.
WEIGHTS & DIMENSIONS
| Overall Dimensions W x D x H (in) | 23 x 37 x 50 |
| Product Weight (lb) | 75 lb |
POWER & DETAILS
| Color | Silver |
| Material | Aluminum |
| Frame Material | Aluminum |
| Country of Origin | U.S.A. |
