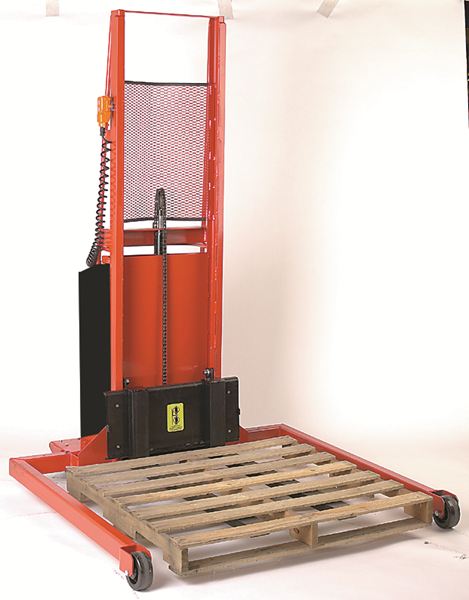

Wesco Adjustable Span Straddle Fork Stacker

Name: Wesco Adjustable Span Straddle Fork Stacker
Brand: Wesco
SKU: PASFL-64-40S-1K
Price: 9337.35 USD
Availability: InStock

Model: PASFL-64-40S-1K

25 Days

Configure — 16 options

CapacityRaised Height (in)Drive TypeModel #

Selected model: PASFL-64-40S-1K

List Price

$9,337.35

Free shipping · standard freight included

Request a Quote

Free shipping — standard LTL freight included to commercial addresses

Capacity / Key Spec

1000 lb

Equipment Weight

518 lbs

Adjustable Span Straddle Fork Stacker Extra deep (40") straddle legs and forks for lifting pallets. Versatile adjustable span straddle legs can be set from 34" to 50" inside dimension to handle most standard pallets. Forks are 25 inches long and 3 inches wide Load Center 20” Meets ASME B56.10 specifications. Remote control, floor lock, and safety screen are standard on all models. With a minimally charged battery, unit can be used while recharging. Easy to read illuminated battery status voltmeter – no extra cost! 12V DC battery or 110V AC units available. To order add AC to the end of the battery powered stacker part #.

Key Features

Extra deep (40") straddle legs and forks for lifting pallets
Versatile adjustable span straddle legs can be set from 34" to 50" inside dimension to handle most standard pallets
Forks are 25 inches long and 3 inches wide
Load Center 20”
Meets ASME B56.10 specifications
Remote control, floor lock, and safety screen are standard on all models
With a minimally charged battery, unit can be used while recharging
Easy to read illuminated battery status voltmeter – no extra cost!
12V DC battery or 110V AC units available
To order add AC to the end of the battery powered stacker part #

WEIGHTS & DIMENSIONS

Length (in)	58
Width (in)	54
Height (in)	80
Raised Height (in)	64
Capacity	1000
Weight (lb)	518
Caster Size	4
Battery Weight (lb)	518

POWER & DETAILS

Model #	PASFL-64-40S-1K
Material of Construction	Steel
Caster Type	Phenolic
Handle Type	Continuous
Floor Lock	1
Powered/Manual	P
Country of Origin	USA
Freight Class	175
Wesco Freight Class	151
UPC Code	678655657001
Cubic Ft	145
Sales Lead Time	25
Drive Type	Standard

All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price. Accessorial fees (liftgate, residential, limited access) are disclosed in your quote before confirmation.
