Valley Craft Drum Clamp & Rotate Powered Skid Steer Attachment - Skid Steer Powered Clamp/360° Rotation, 2000 lb. CapacityDouble-click to zoom

Valley Craft · Drum & Material Handling

Valley Craft Drum Clamp & Rotate Powered Skid Steer Attachment - Skid Steer Powered Clamp/360° Rotation, 2000 lb. Capacity

Model: F89698

1 Week

List Price

$9,449.00

Free shipping · standard freight included

Request a Quote

Free shipping — standard LTL freight included to commercial addresses

Capacity / Key Spec

See specs

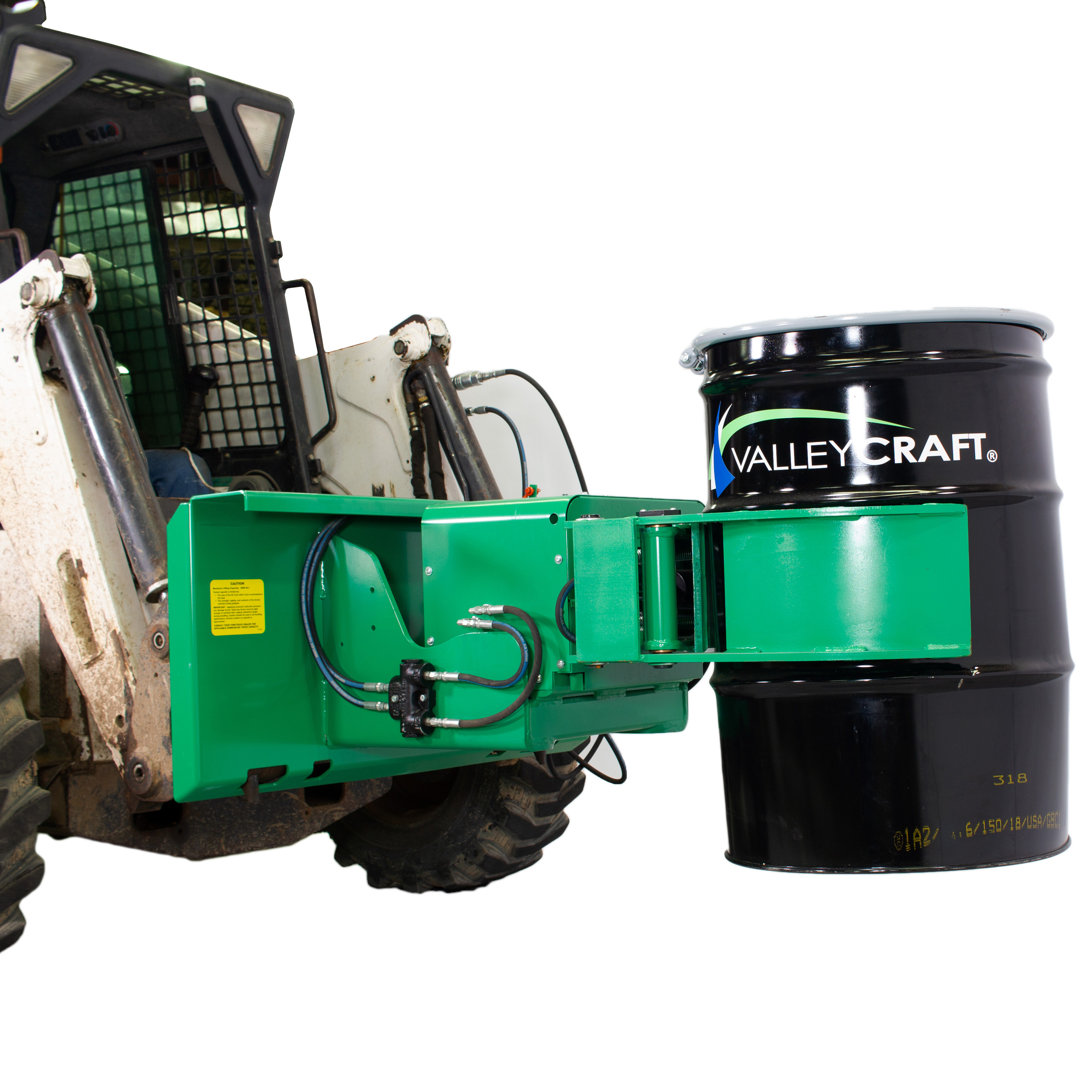

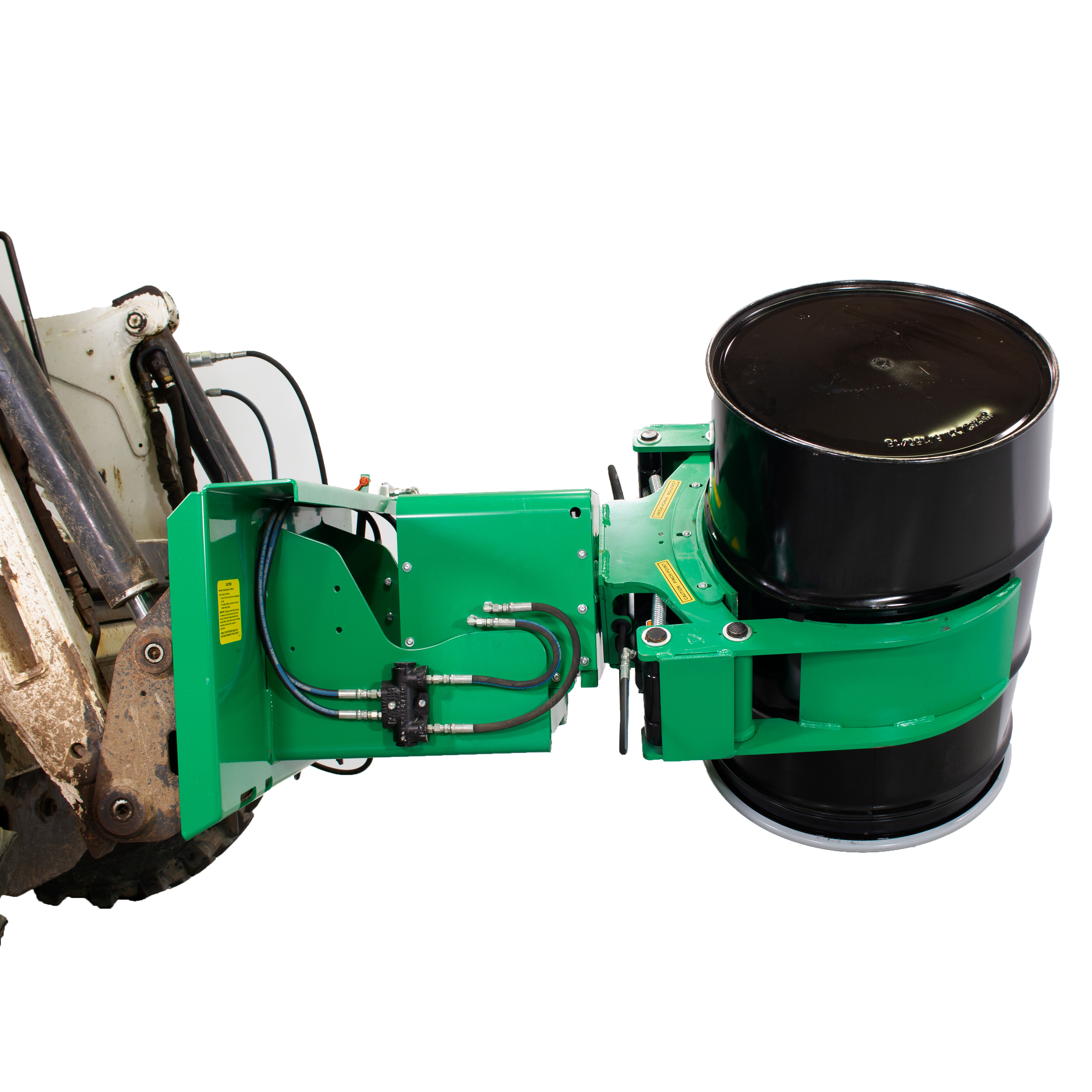

Valley Craft’s Powered Drum Skid Steer Attachments create a quick, safe and ergonomically friendly means of handling drums by utilizing power. You can simply lift, rotate, dump, transport and store your drums with ease, without having to leave the seat of your skid steer. Compatible with all drum styles (steel, plastic and fiber) with a diameter of 18-28” and a load capacity of 2,000 lbs., drum handling and maneuvering has never been easier. Units have hydraulic actuated jaws and an adjustable pressure gauge to help ensure the appropriate amount of pressure is applied to secure your drum without damaging it. Variable speed control improves safety and ease of operation. Skid steer powered units come with auxiliary lines and quick-connect couplers to easily connect to your skid steer. Skid steer powered units operate using convenient in-cab controls and have the ability to run continuously without the need to recharge. The clamp/unclamp function is accomplished by activating the selector valve (via a rope pull) on top of the frame. When the rope is not being pulled, the same hydraulic lever will activate the rotating function. Valley Craft’s Powered Drum Skid Steer Attachments improve the safety and productivity of any facility that is rotating or transporting drums by eliminating the need for hazardous manual assistance. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. Products are shipped fully assembled, and made in the U.S.A.

Key Features

  • Quickly and ergonomically transport, rotate, dump, and store drums.

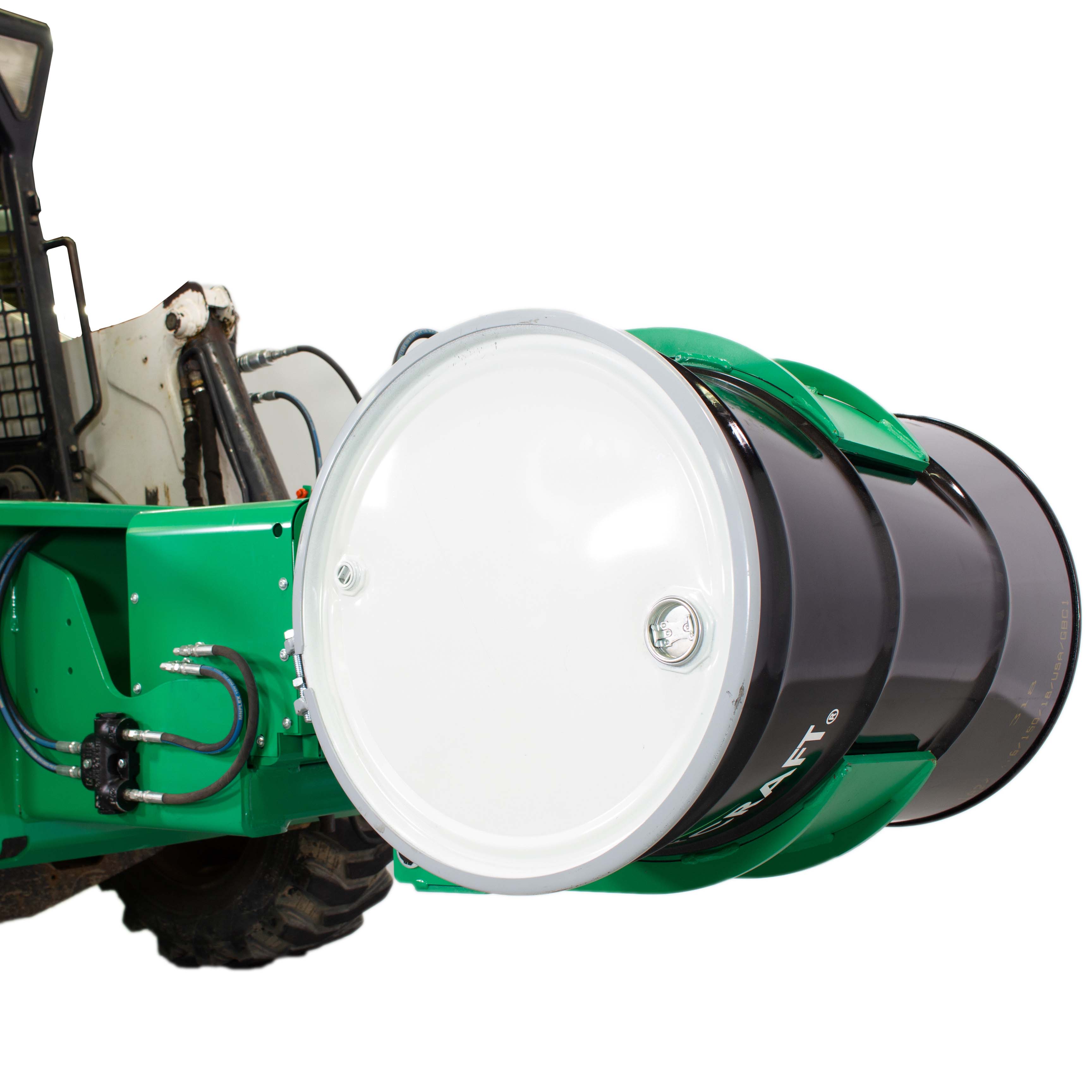

  • Powered grip, release, and rotate (360°).

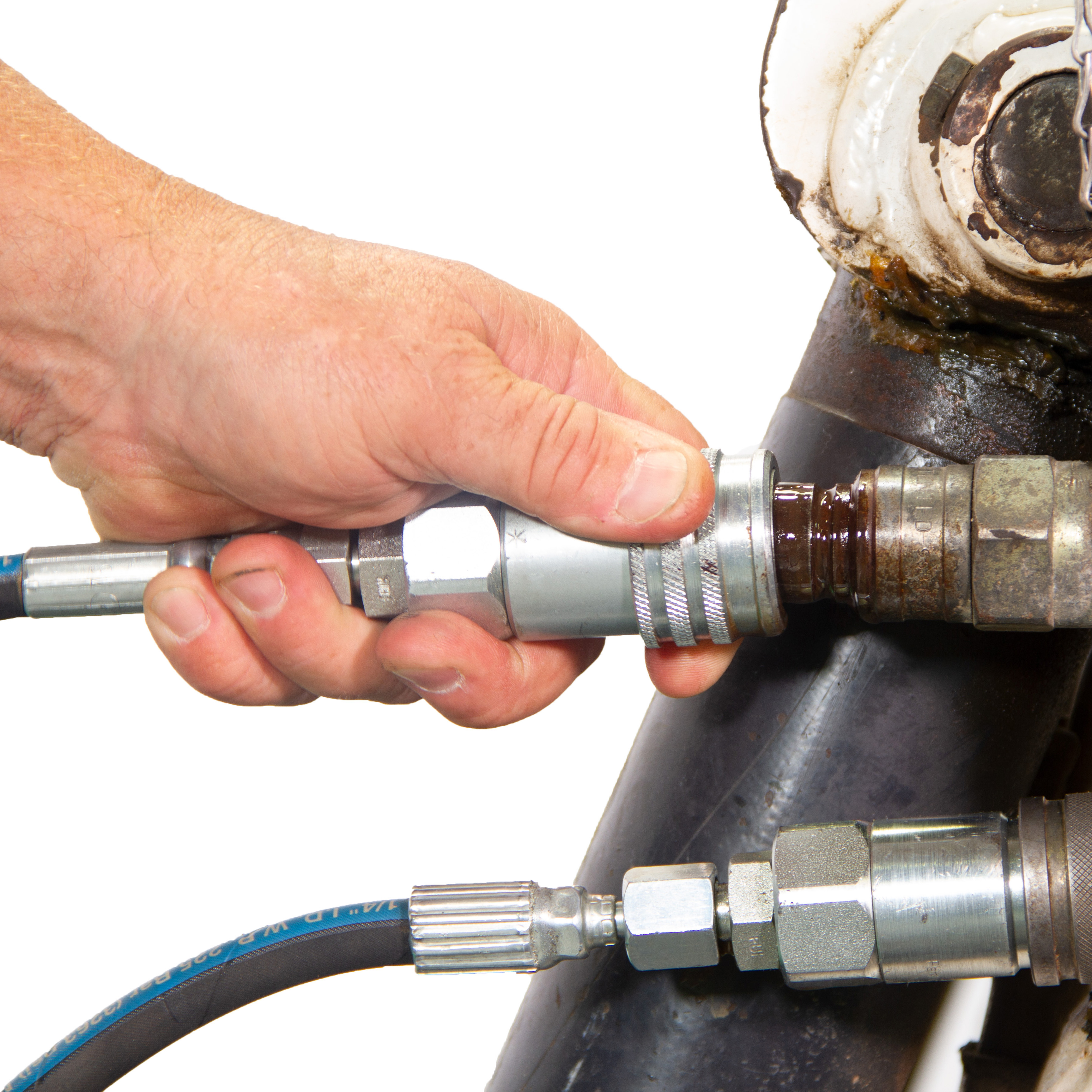

  • Skid Steer powered, connect unit by attaching included quick-connect couplers to skid steer auxiliary circuit.
  • Clamp/Unclamp: activate selector valve (via rope pull) on top of the frame.
  • Rotate: use hydraulic lever (when rope is not being pulled).

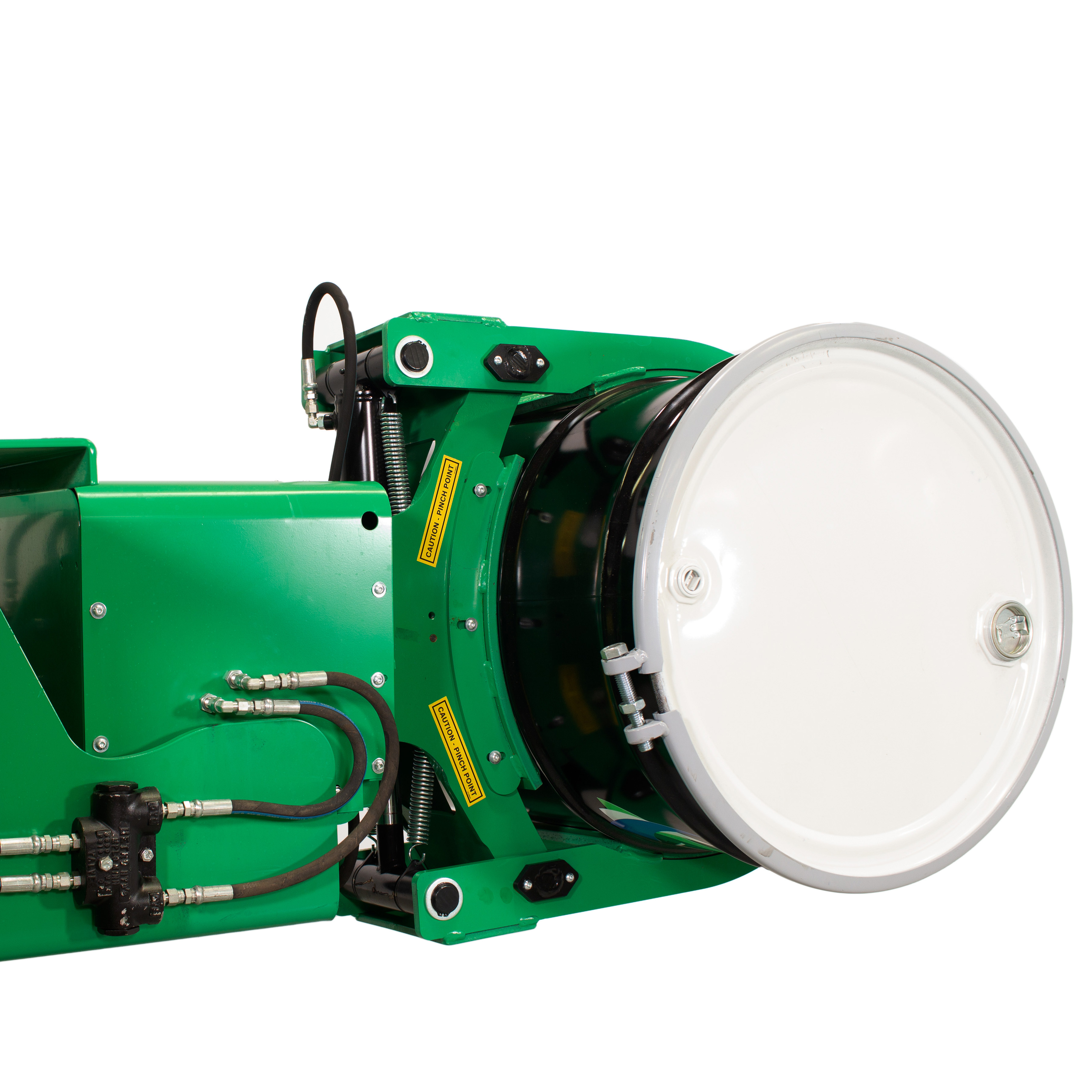

  • Hydraulic actuated jaws, with adjustable pressure gauge.
  • Variable speed control.
  • Compatible with steel/plastic/fiber drums, 30-85 gallons (18-28” in diameter).
  • 52"L x 46"W x 21"H.
  • 2,000 lb. capacity.
  • Heavy gauge steel construction.
  • Premium powder coat paint finish in green.
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

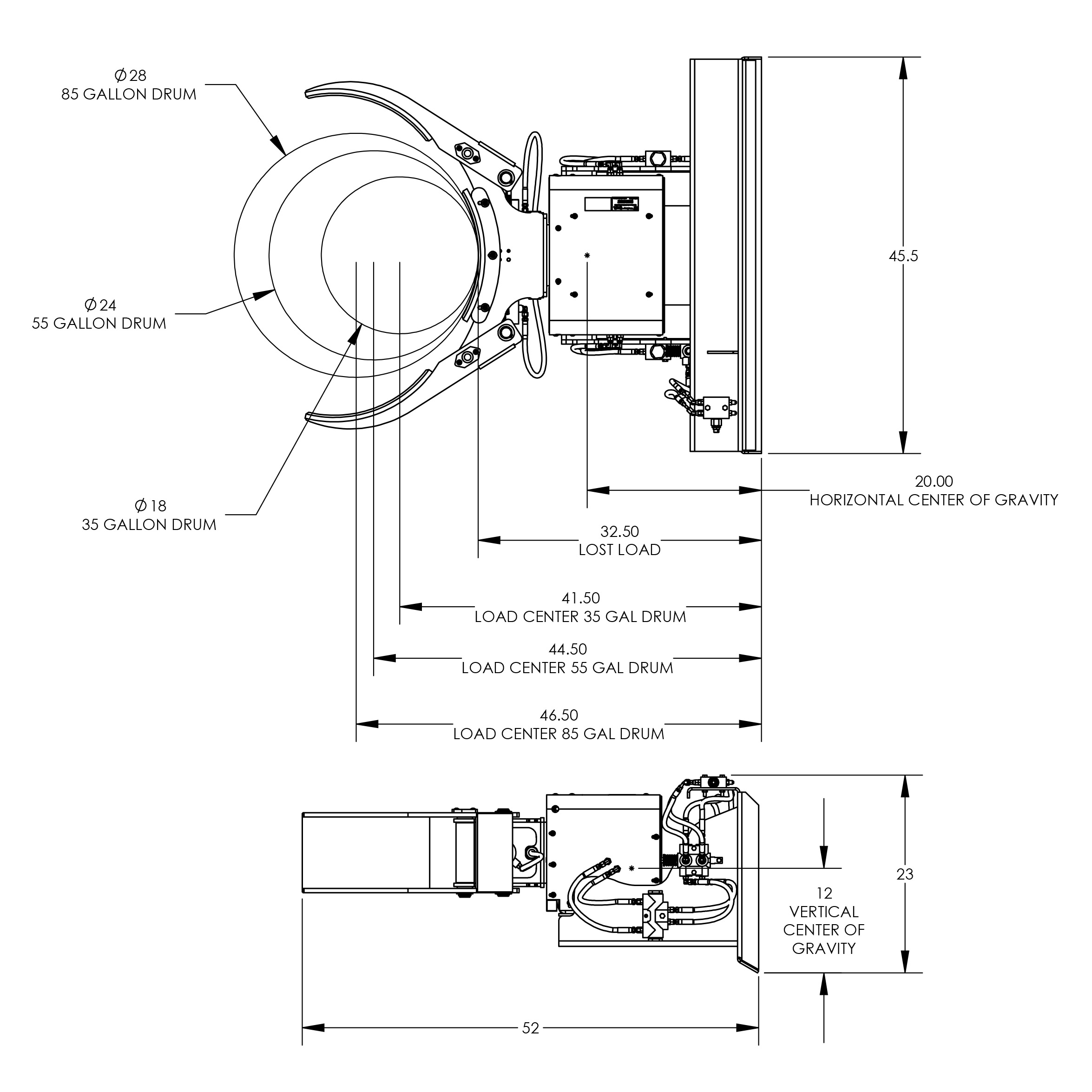

WEIGHTS & DIMENSIONS

Width46 in.
Length52 in.
Overall Dimensions L x W x H (in)52 x 46 x 21
Product Weight (lb)625 lb
Drum Diameter (in)18 - 28"
Drum Capacity (gal)30/55/85 gal

POWER & DETAILS

ColorGreen
FinishPowder Coat Paint
Drum Typesteel, plastic, and fiber drums, 18 - 28" in diameter
Power SourceAuxilary hydraulics on skid steer
MaterialSteel
Country of OriginU.S.A.
Shipping Class77.5
NMFC Number133300

All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price. Accessorial fees (liftgate, residential, limited access) are disclosed in your quote before confirmation.
