Valley Craft Drum Industrial Lift & Transporter - Strap Connection, 800 lb. Capacity, used w/ Steel/Plastic/Fiber Drums
Model: F88577B3
List Price
$3,449.00
Free shipping · standard freight included
Capacity / Key Spec
See specs

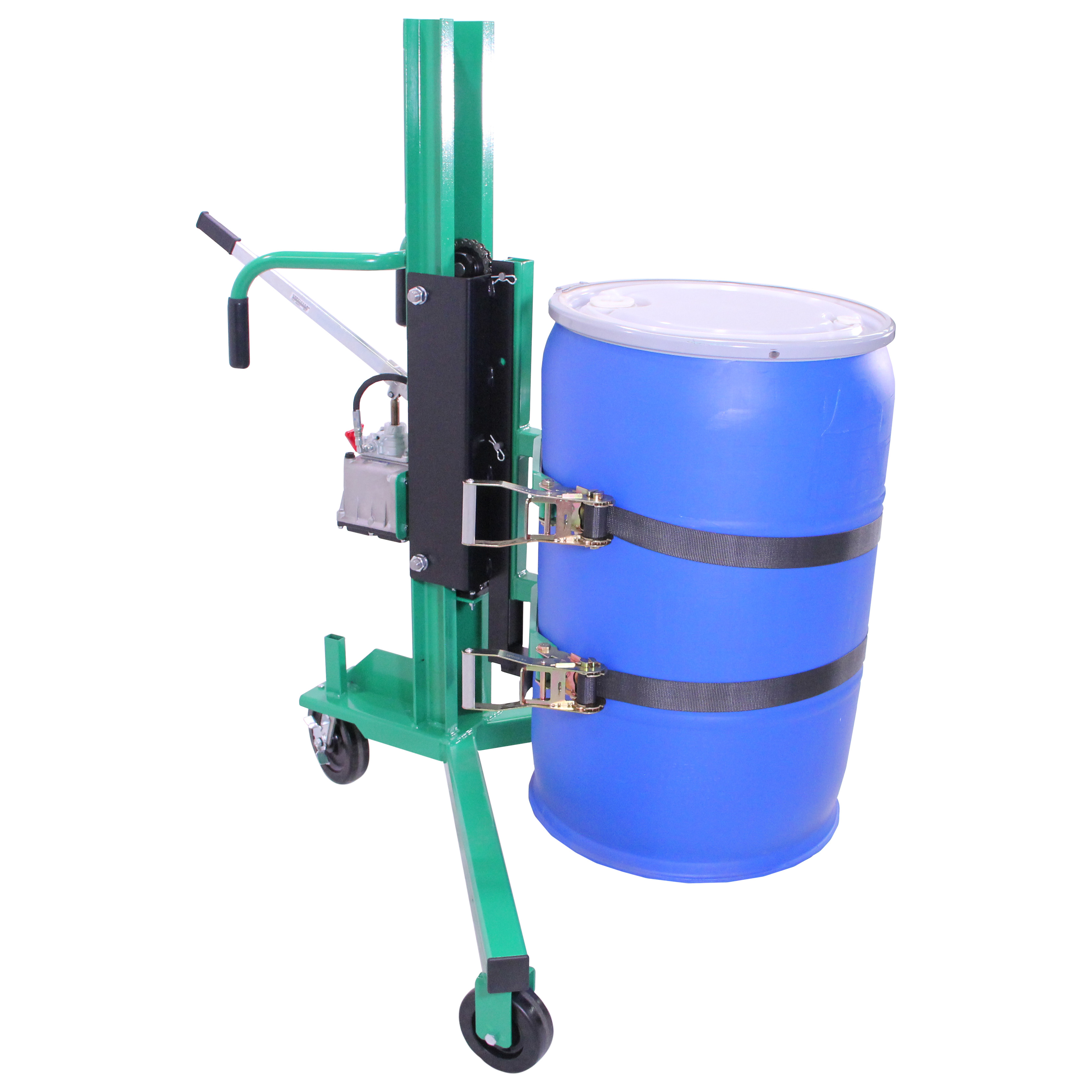

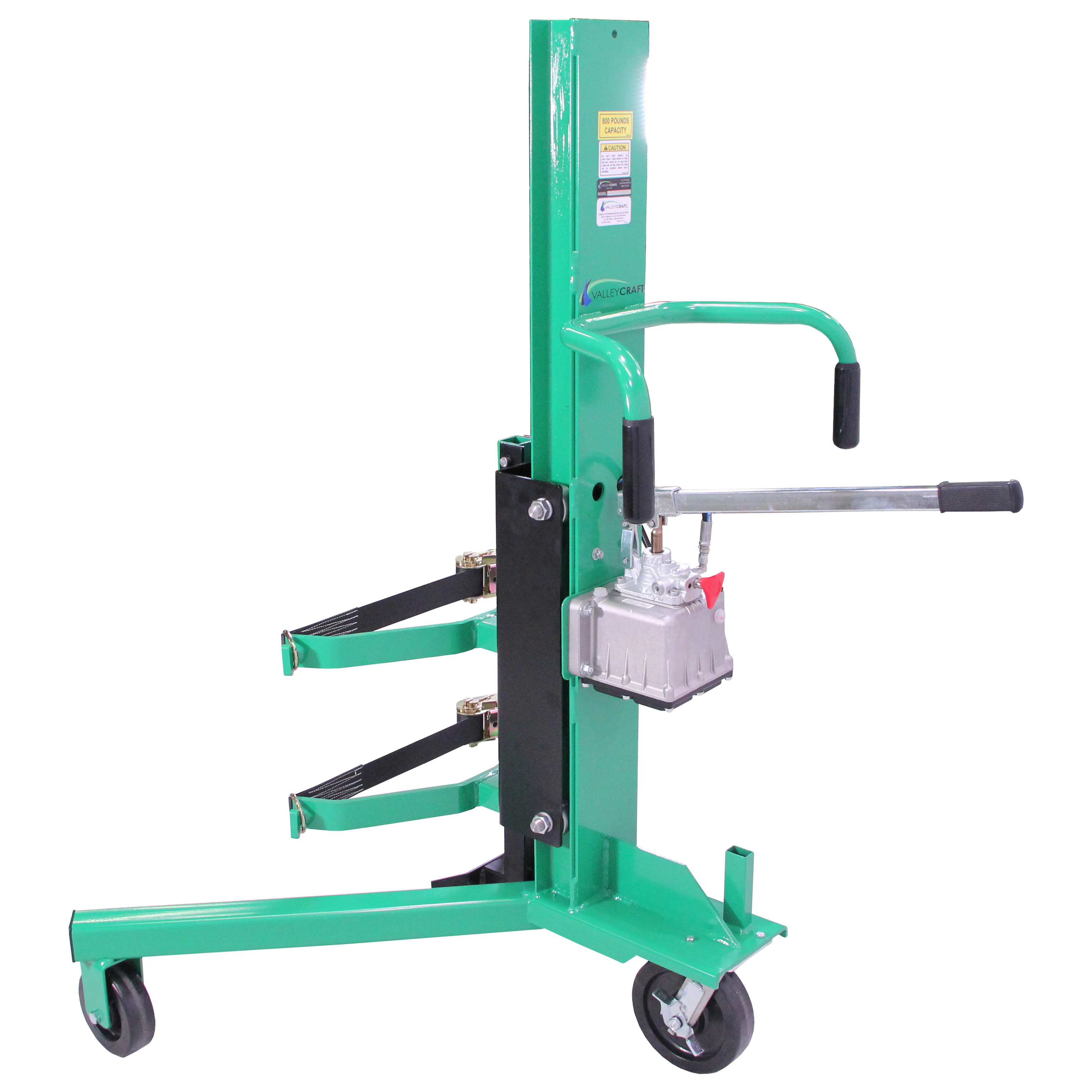

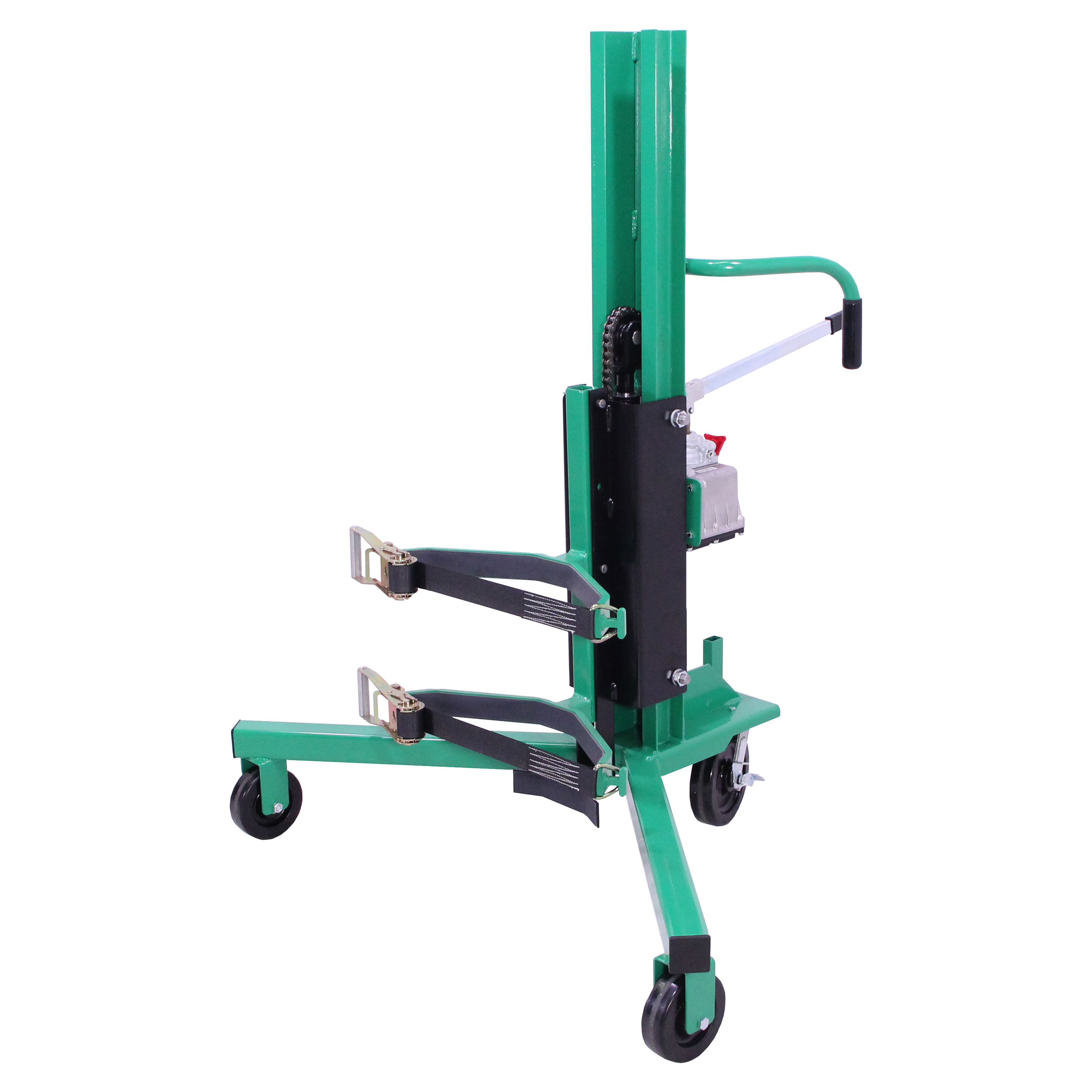

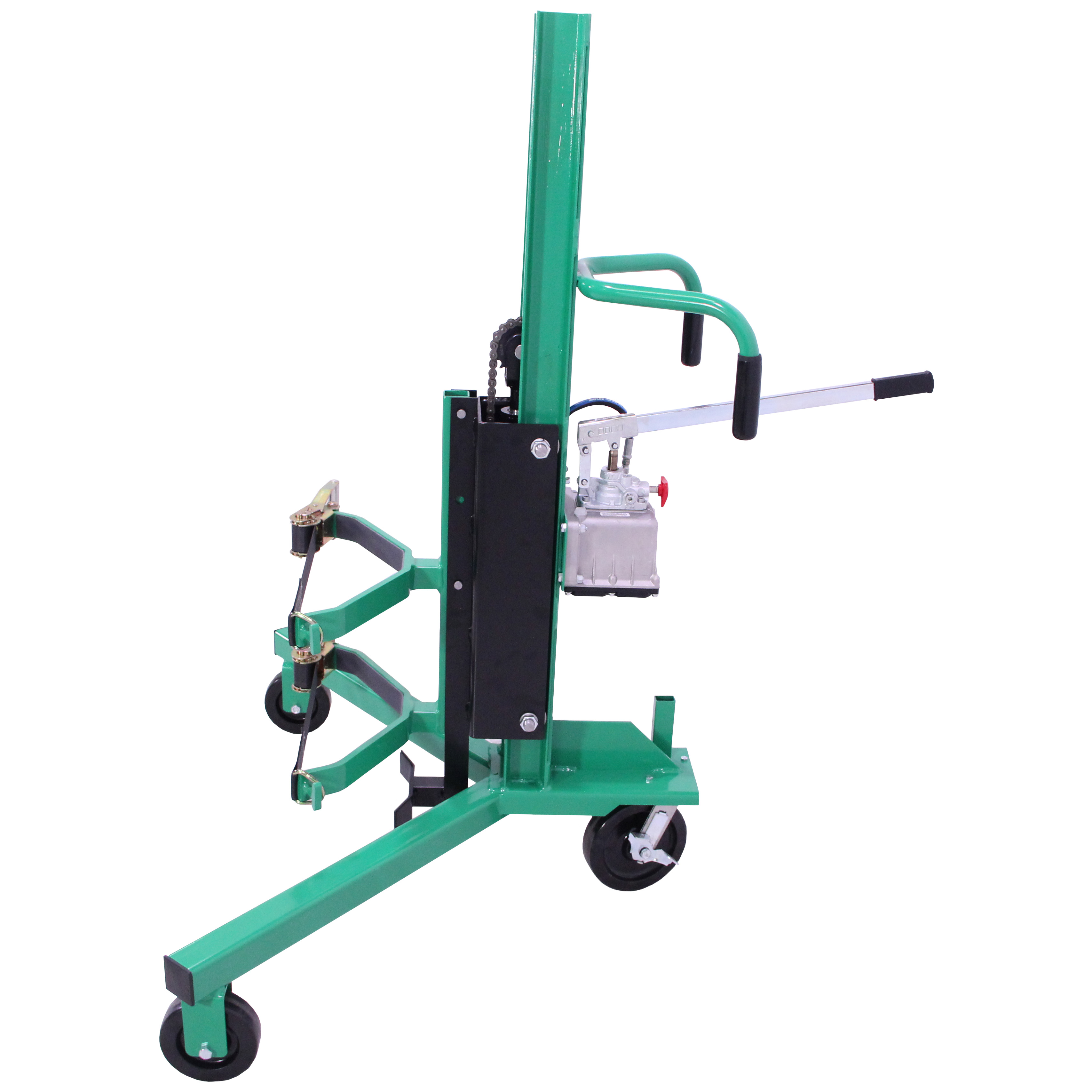

Valley Craft’s Industrial Drum Lift & Transporter with Strap Attachment is the perfect solution to safely and ergonomically lift and maneuver drums throughout your facility. This unit is ideal for picking and placing drums on/off pallets or spill containment platforms. Handle drums more efficiently while reducing worker fatigue and possible injury. The strap attachment utilizes a dual ratchet strap design that is certain to secure your drums. This option is common for applications with drums that have damaged rims or when operators are wanting additional security. The straps work with all styles (steel, plastic, and fiber) and sizes of drums up to 55 gallons and between 14-24” in diameter. This industrial style unit comes with an easy to use and compact hand pump. With a 800 lb. load capacity, maneuvering your unit is made simple on the (3) heavy duty wheel design (swivel rear, rigid front). Each unit has a versatile quick-release backplate that is compatible with additional attachments. You are able to purchase one base unit with additional attachments, and switch them out as needed. Valley Craft’s Industrial Drum Lifts & Transporters, are constructed of heavy gauge steel and have a premium powder coat paint finish in green. Products are shipped fully assembled, ready-to-use, and made in the U.S.A.
Key Features
- Safely and ergonomically lift and maneuver drums throughout your facility.
- Ideal for picking from pallets or spill containment platforms.

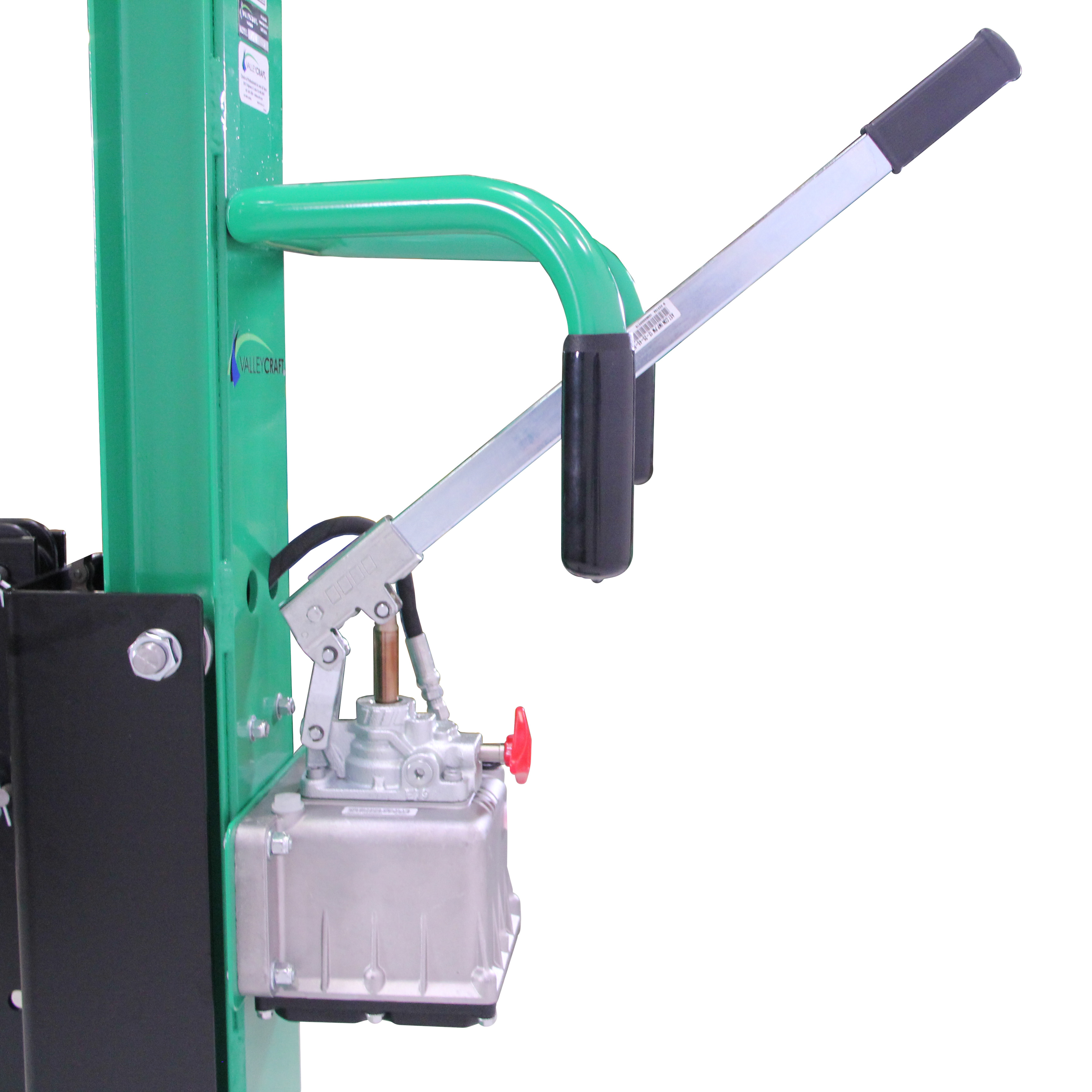

- Easy to use hand pump with compact design.

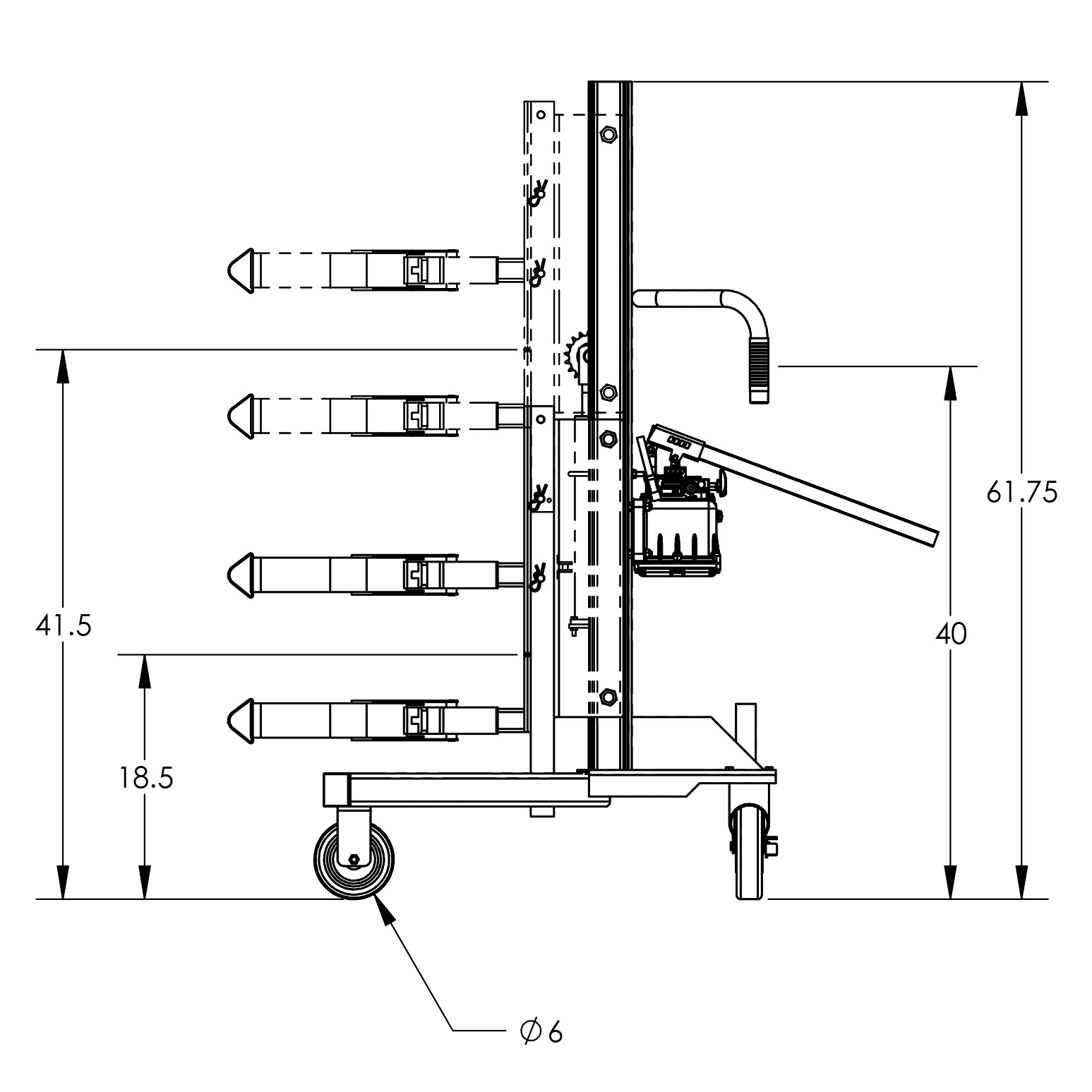

- Raise middle of drum to a maximum height of 41 1/2” off the floor.
- Minimum center grip height of 18 1/2” off the floor.

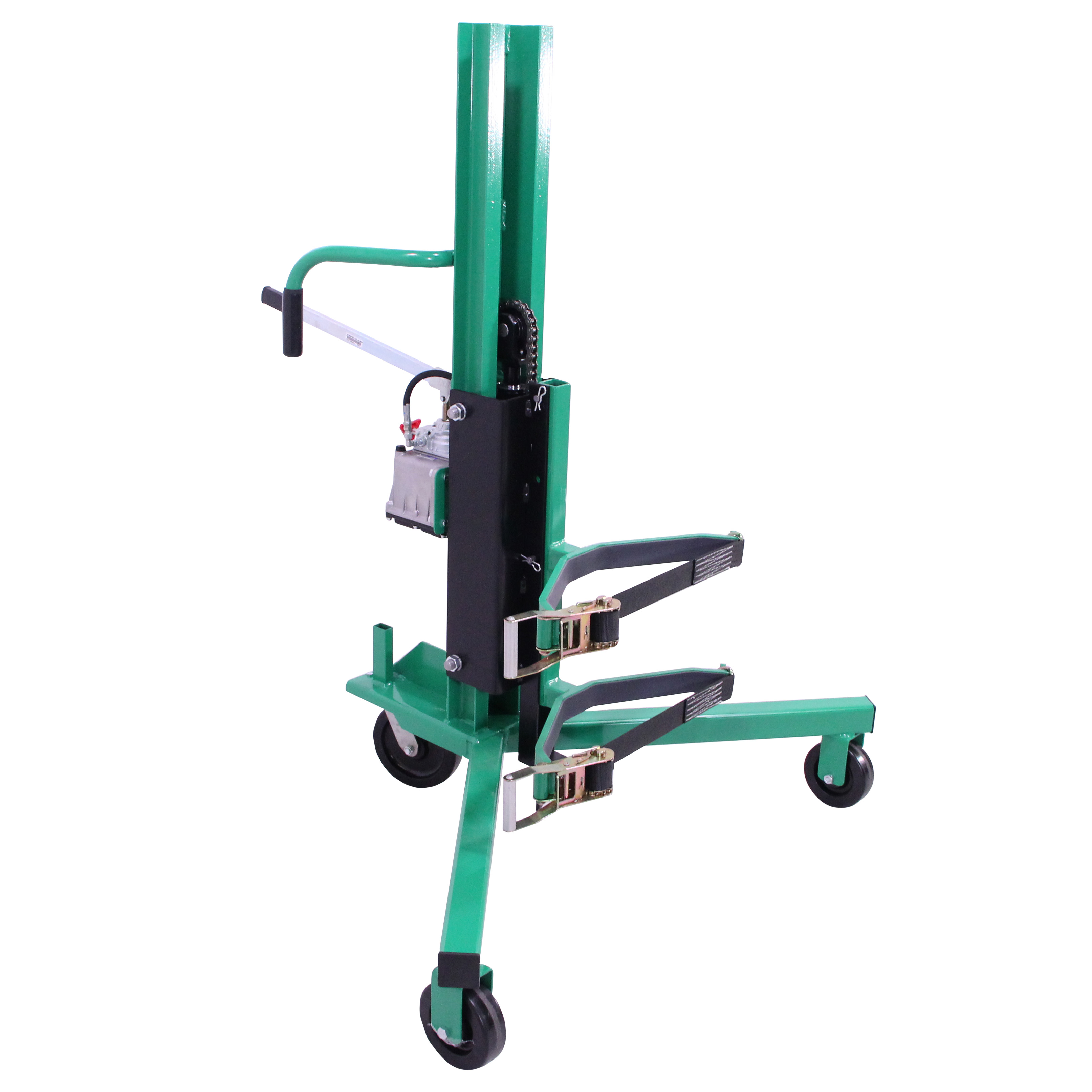

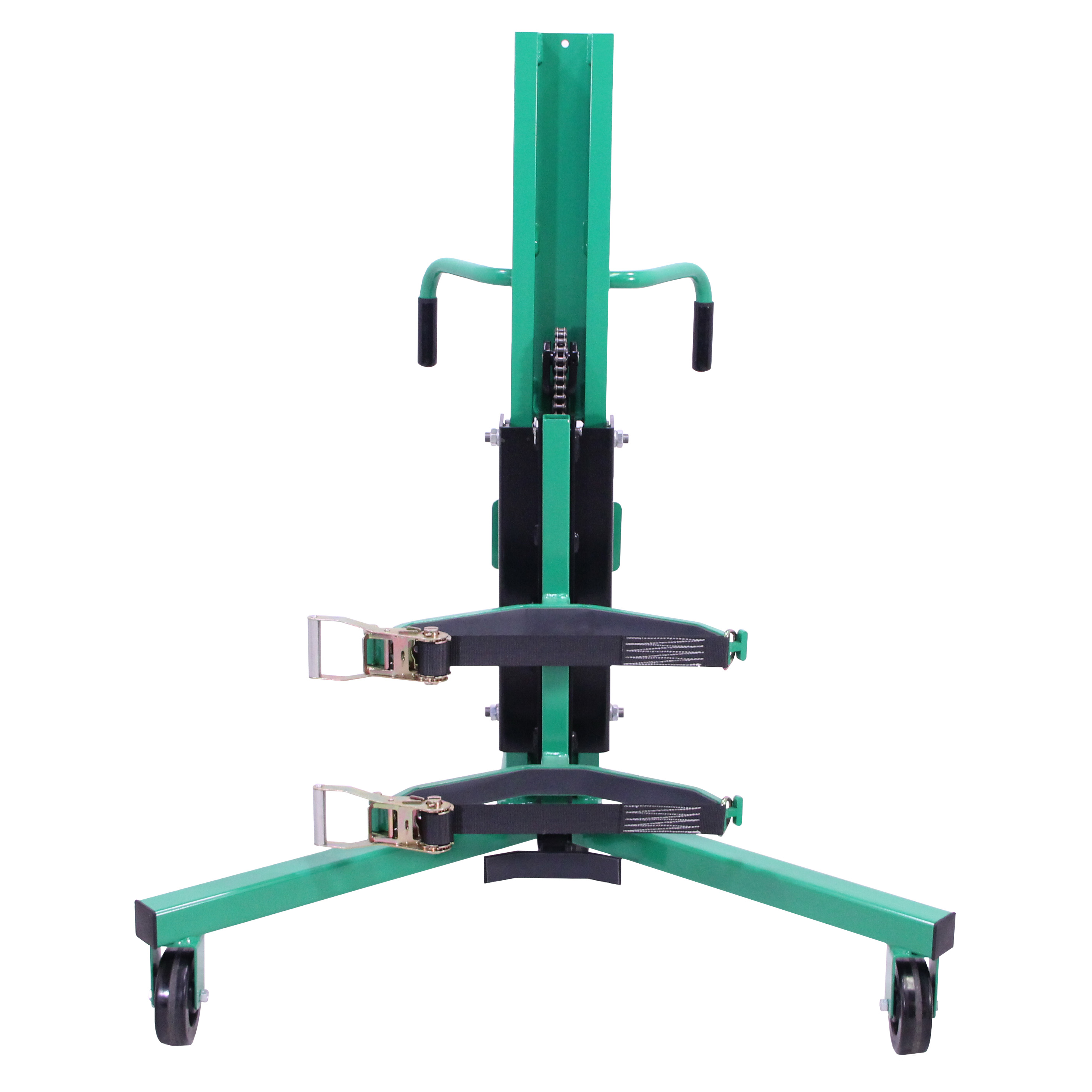

- Dual ratchet straps for securing drums.

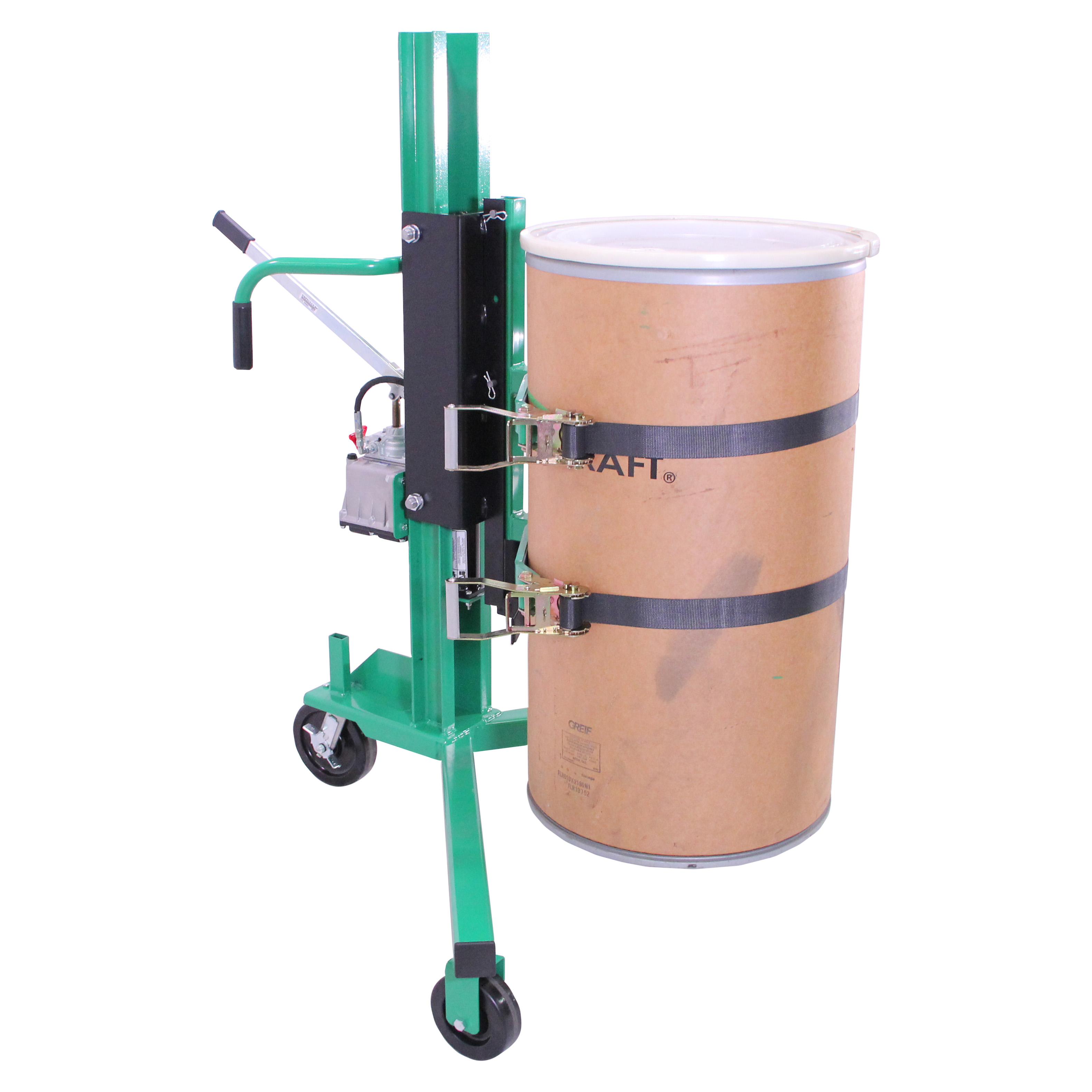

- Compatible with steel/plastic/fiber drums, 10-55 gallons (14-24” in diameter).

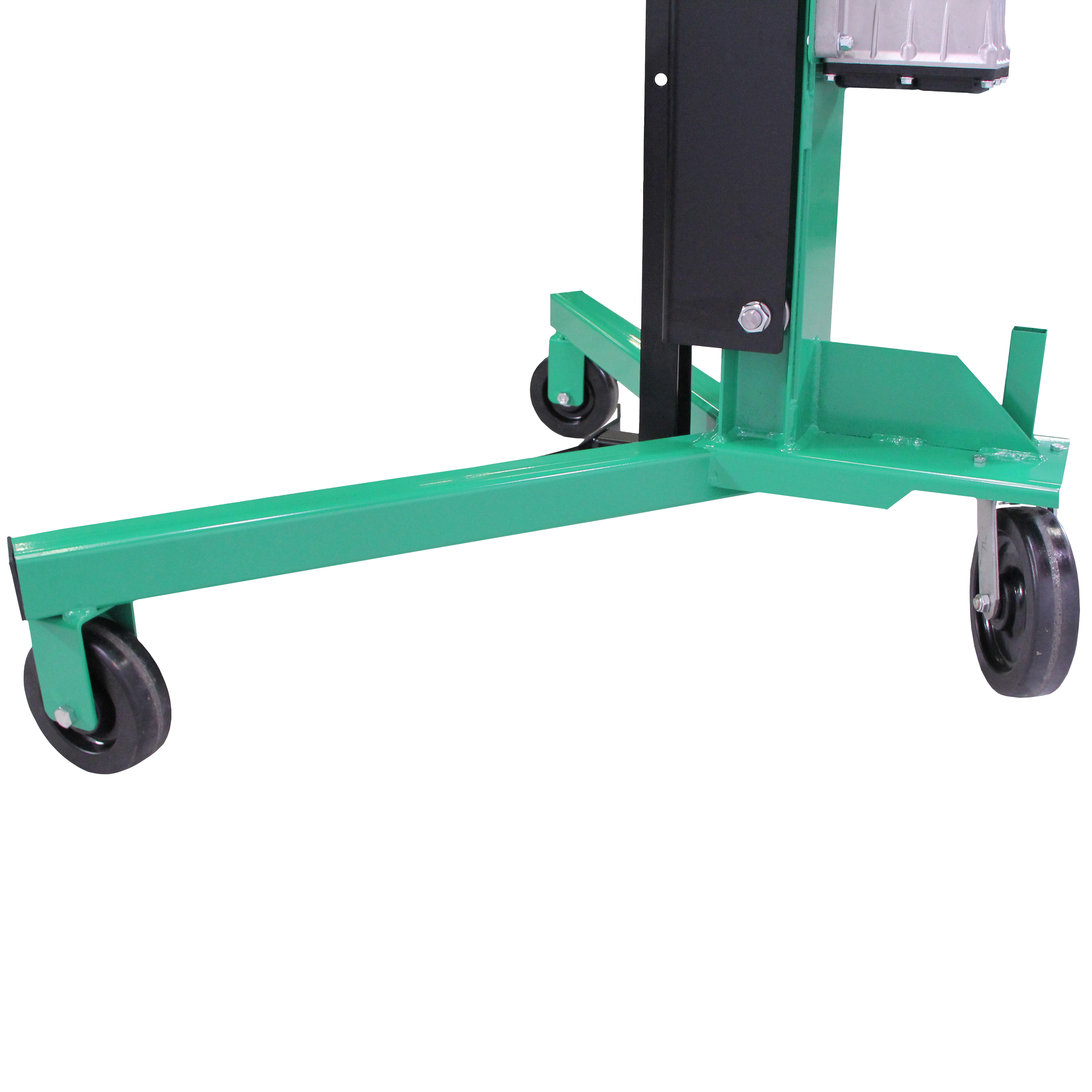

- Manuevers easily on and 3 casters: (2) 6" front rigid, (1) 8" rear swivel.

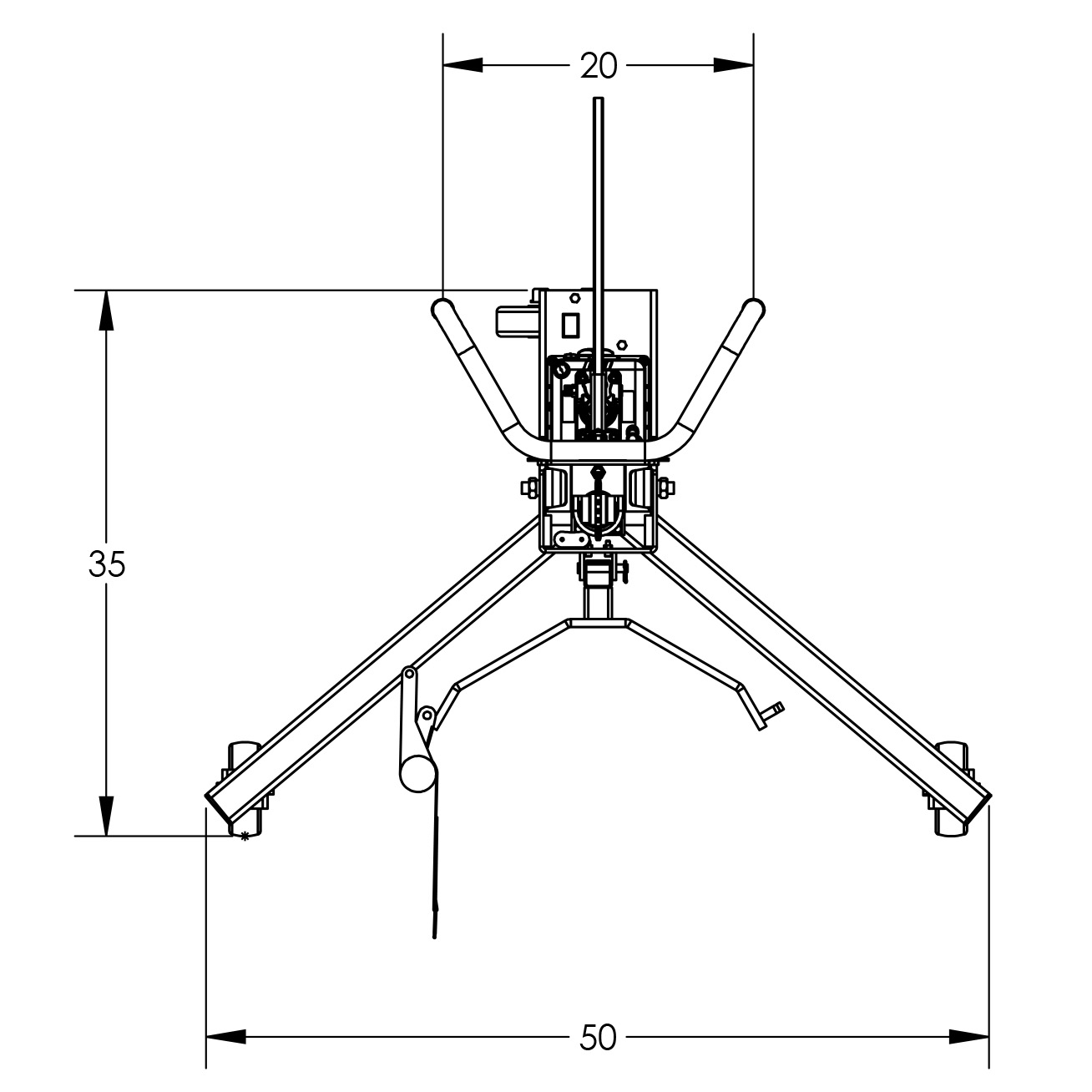

- 50"W x 35"D x 62"H.
- 800 lb. capacity.
- Heavy gauge steel construction.
- Premium powder coat paint finish in green.
- Accessory options include: beak and cylinder attachments (sold separately).
- Ships fully assembled, ready to use.
- Made in the U.S.A.
WEIGHTS & DIMENSIONS
| Overall Dimensions W x D x H (in) | 50 x 35 x 62 |
| Product Weight (lb) | 255 lb |
| Drum Diameter (in) | 14 - 24" |
| Drum Capacity (gal) | 30/55 gal |
POWER & DETAILS
| Color | Green |
| Finish | Powder Coat Paint |
| Drum Type | Steel, Plastic, Fiber |
| Material | Steel |
| Country of Origin | U.S.A. |
| Shipping Class | 150 |
| NMFC Number | 188760 |
All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price. Accessorial fees (liftgate, residential, limited access) are disclosed in your quote before confirmation.
