Valley Craft Universal Lift & Stacker, Steel Base Unit - Semi-Powered, Powered Lift/Manual Drive, 78"H, Straddle, 800 lb. Capacity (Attachments Sold Separately)Double-click to zoom

Valley Craft · Material & Scissor Lifts

Valley Craft Universal Lift & Stacker, Steel Base Unit - Semi-Powered, Powered Lift/Manual Drive, 78"H, Straddle, 800 lb. Capacity (Attachments Sold Separately)

Model: F88553C1

2 Weeks

List Price

$6,099.00

Free shipping · standard freight included

Request a Quote

Free shipping — standard LTL freight included to commercial addresses

Capacity / Key Spec

See specs

Valley Craft’s 78” Semi-Powered Steel Universal Lift & Stacker is the perfect solution to handle all your material handling needs with just one base unit. The base unit comes with a flexible mount that works with a variety of optional accessory attachments. Platforms, forks, and a variety of drum handling attachments can all easily be connected to the unit for simple operation. All accessories are interchangeable so you can use one unit for a variety of applications by purchasing different attachments and simply switch out attachments as needed. The powered lift raises to a height of 71” less than 30 seconds. The heavy duty wheels provide simple maneuvering and a 800 lb. capacity. The semi-powered design has a manual easy push drive, and a powered lifting/lowering system built in. The straddle legs provides additional stability and make the unit lighter and easier to maneuver around. Designed as a standalone lift, forklift assistance is not required. Valley Craft’s Steel Universal Lifts & Stackers are built to last utilizing heavy gauge material with a premium powder coat paint finish in green. Products are shipped fully assembled, and made in the U.S.A.

Key Features

  • Safely and ergonomically lift and/or rotate a variety of materials throughout facility.
  • Solves a variety of material handling needs with one base unit.
  • Base unit works with a variety of optional attachments.
  • Standalone unit (no forklift required).
  • 12V battery powered lift, manual drive.
  • Raise material to a maximum height of 71” off the floor.
  • Minimum center grip height of 13” off the floor.
  • Straddle legs extend under pallets, shelving, or on outside of drums.
  • Compatible with interchangeable platform, forks, and drum attachments.
  • Manuevers easily on (2) 6" front and (2) 4" rear casters: front rigid, rear swivel.
  • 43”L x 30”W x 78”H.
  • 800 lb. capacity.
  • Heavy gauge steel construction.
  • Premium powder coat paint finish in green.

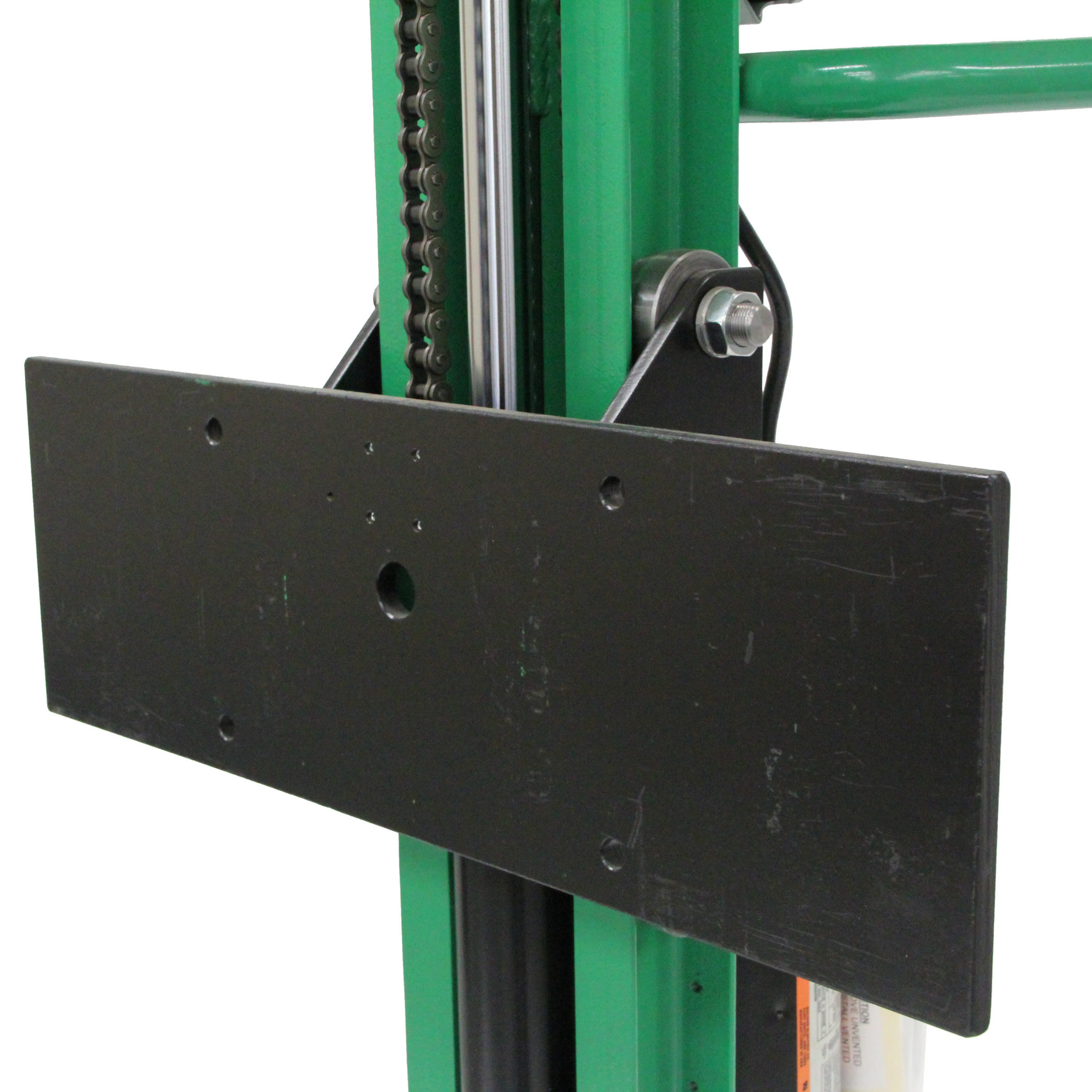

  • Accessory options include: drum grip, drum beak, drum rotator, drum tilter, pallet forks, and steel platform (sold separately). Backplate makes attachments interchangeable.
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

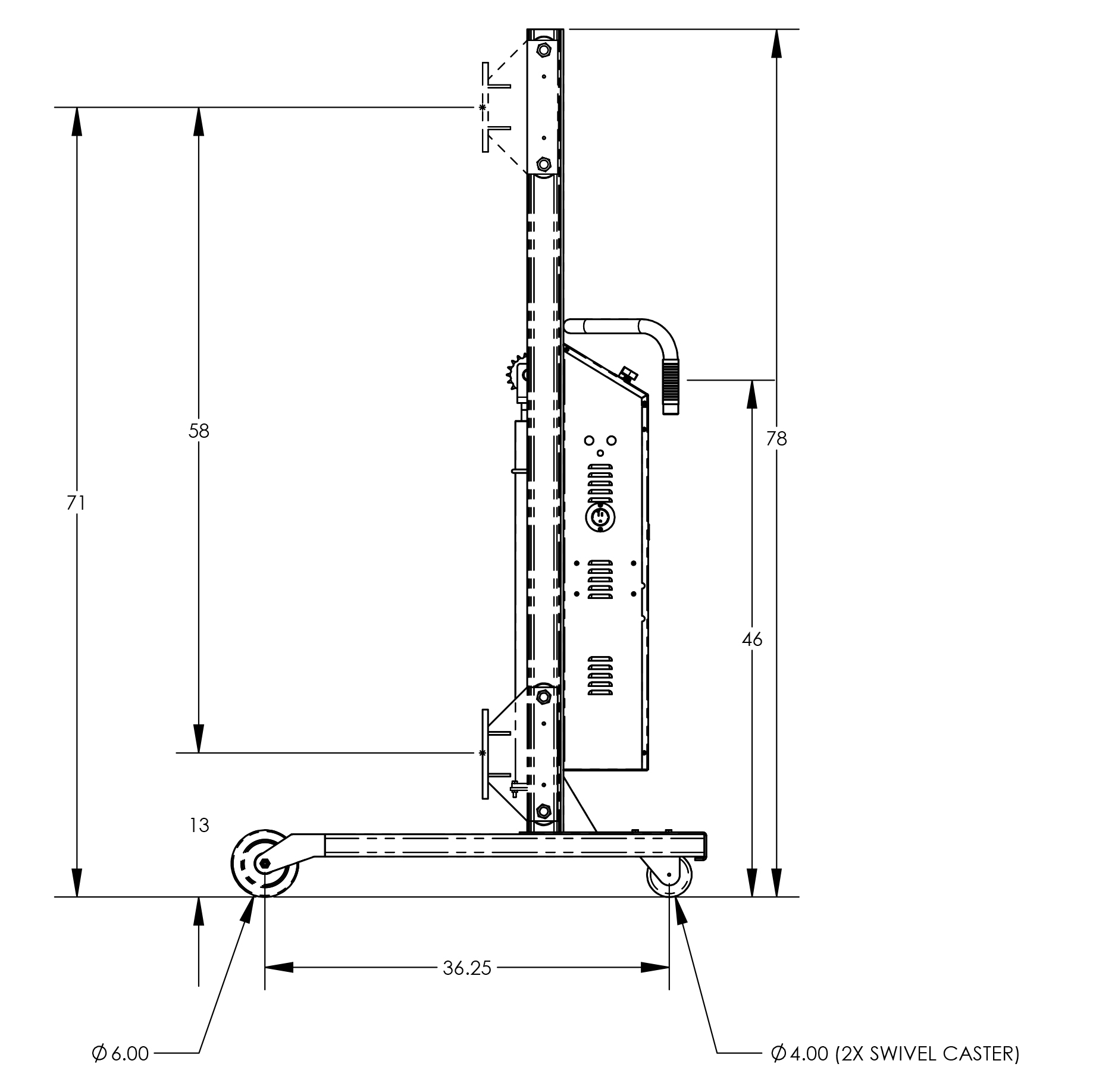

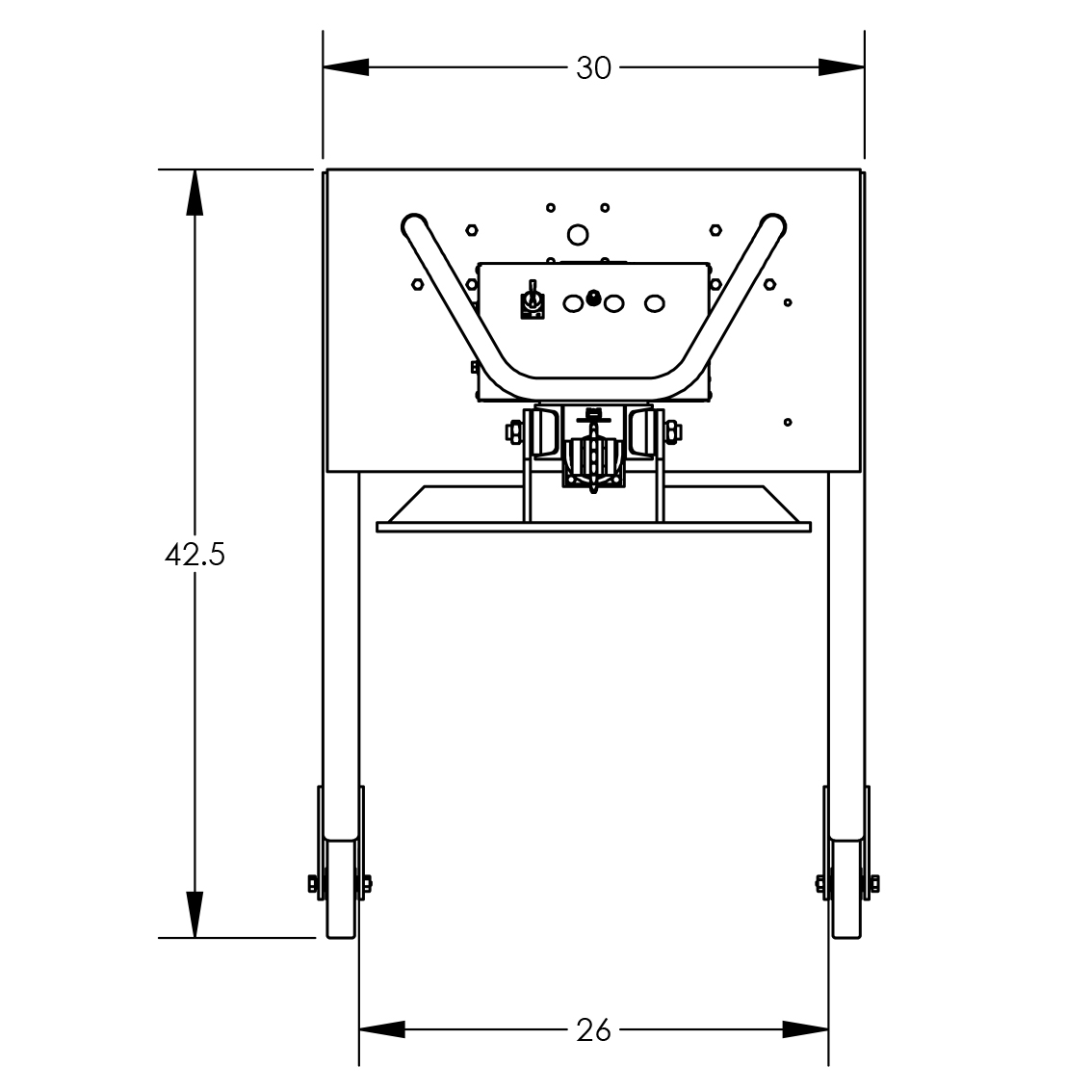

WEIGHTS & DIMENSIONS

Lift Height71 in.
Overall Dimensions L x W x H (in)43 x 30 x 78
Product Weight (lb)465 lb

POWER & DETAILS

ColorGreen
FinishPowder Coat Paint
Lift Distance (in)58
Power Source12V Battery Powered, Rechargable
MaterialSteel
Country of OriginU.S.A.
Shipping Class175
NMFC Number133300

All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price. Accessorial fees (liftgate, residential, limited access) are disclosed in your quote before confirmation.
