JET TS Series Two-Speed Electric Chain Hoist — 1/2 Ton, 10' Lift, 460V 3-PhaseDouble-tap to zoom

JET Tools · Hoists, Cranes & Rigging

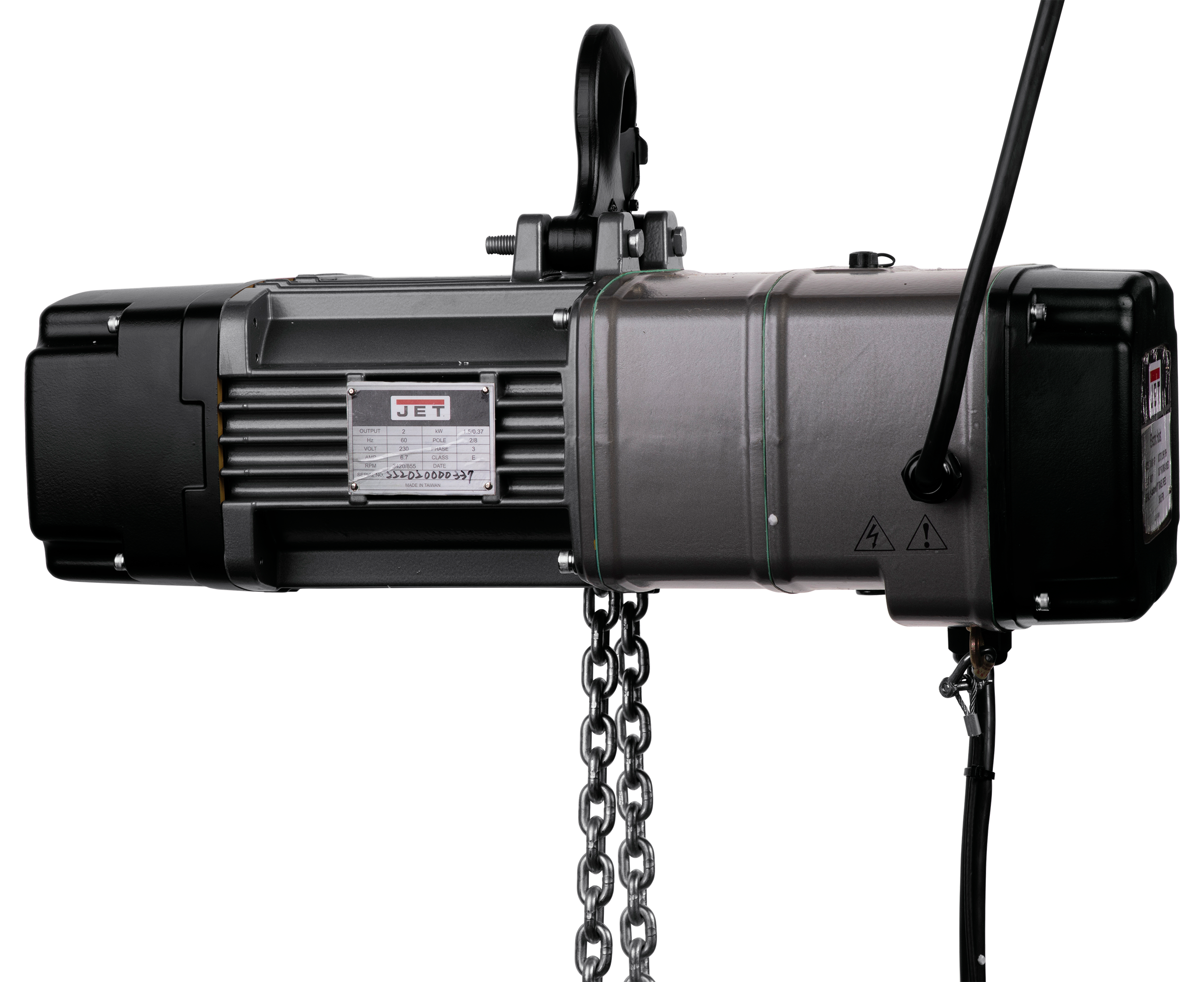

JET TS Series Two-Speed Electric Chain Hoist — 1/2 Ton, 10' Lift, 460V 3-Phase

Model: TS050-010

3–5 Business Days

Configure — 60 options

Selected model: TS050-010

List Price

$6,149.00

Freight Included — Delivered to Your Dock
Request a QuoteQuestions on specs or freight? Call (949) 773-2777

Free shipping — standard LTL freight included to commercial addresses

Residential, jobsite, or liftgate delivery? See delivery options →

Authorized JET Tools DealerFactory-New — Ships From the ManufacturerOEM Warranty — we advocate for you

Capacity / Key Spec

1/2 Ton

Equipment Weight

172 lbs

The JET TS Series Two-Speed Electric Chain Hoist is the industrial-grade solution for precision overhead lifting. Available in 1/2 to 5 ton capacities with 230V or 460V 3-phase power, the TS delivers two-speed performance — 3 fpm for precision positioning and 33 fpm for rapid travel — via an IP55-rated TEFC motor and IP65-rated pendant control. The 2-year warranty covers all electrical components.

Key Features

  • Two-speed operation: 3 fpm precision mode and 33 fpm travel mode
  • IP55-rated TEFC motor for washdown and outdoor environments
  • IP65-rated pendant control for waterproof protection
  • 230V and 460V 3-phase configurations available
  • 1/2 to 5 ton lifting capacity
  • Grade 80 load chain
  • 2-year warranty on all electrical components
  • ANSI/ASME B30.16 compliant

WEIGHTS & DIMENSIONS

Capacity1/2 Ton
Chain GradeGrade 80

POWER & DETAILS

Voltage460V 3-Phase
Lift10 ft
Lift SpeedHigh 33 fpm / Low 8 fpm
Motor1.5 HP high / 0.4 HP low TEFC (two-speed)
Power460V / 3-phase
Falls1
Headroom19-11/16"
IP RatingIP55 (motor), IP65 (pendant)

All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price, and liftgate service and residential delivery are free whenever you need them. Limited-access fees are disclosed in your quote before confirmation.
