JET TS Series Two-Speed Electric Chain Hoist — 1/2 Ton, 10' Lift, 230V 3-Phase

Name: JET TS Series Two-Speed Electric Chain Hoist — 1/2 Ton, 10' Lift, 230V 3-Phase
Brand: JET Tools
SKU: TS050-010
Price: 6449 USD
Availability: InStock

Model: TS050-010

3–5 Business Days

Configure — 60 options

CapacityLiftVoltage

Selected model: TS050-010

List Price

$6,449.00

Free shipping · standard freight included

Request a Quote

Free shipping — standard LTL freight included to commercial addresses

Capacity / Key Spec

1/2 Ton

Equipment Weight

172 lbs

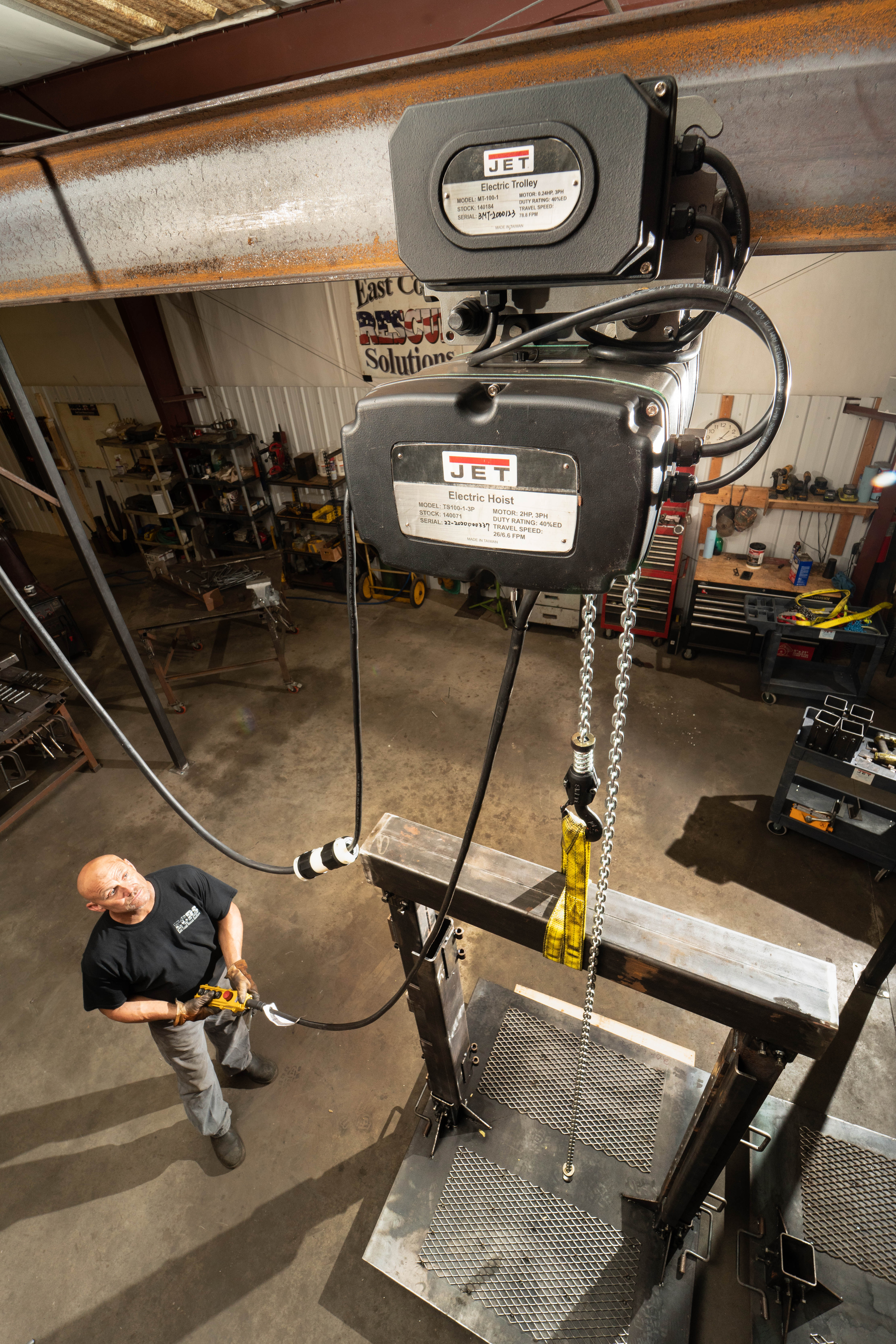

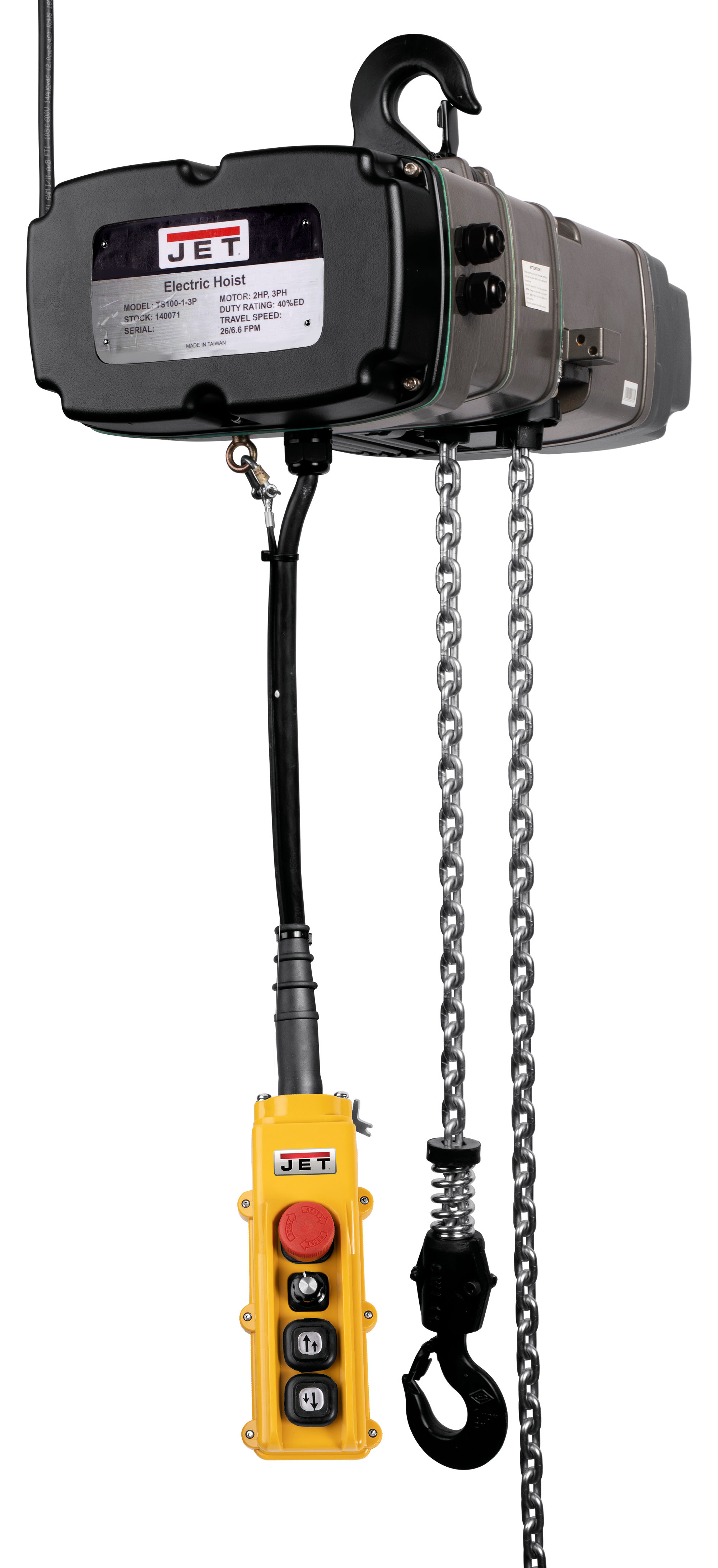

The JET TS Series Two-Speed Electric Chain Hoist is the industrial-grade solution for precision overhead lifting. Available in 1/2 to 5 ton capacities with 230V or 460V 3-phase power, the TS delivers two-speed performance — 3 fpm for precision positioning and 33 fpm for rapid travel — via an IP55-rated TEFC motor and IP65-rated pendant control. The 2-year warranty covers all electrical components.

Key Features

Two-speed operation: 3 fpm precision mode and 33 fpm travel mode

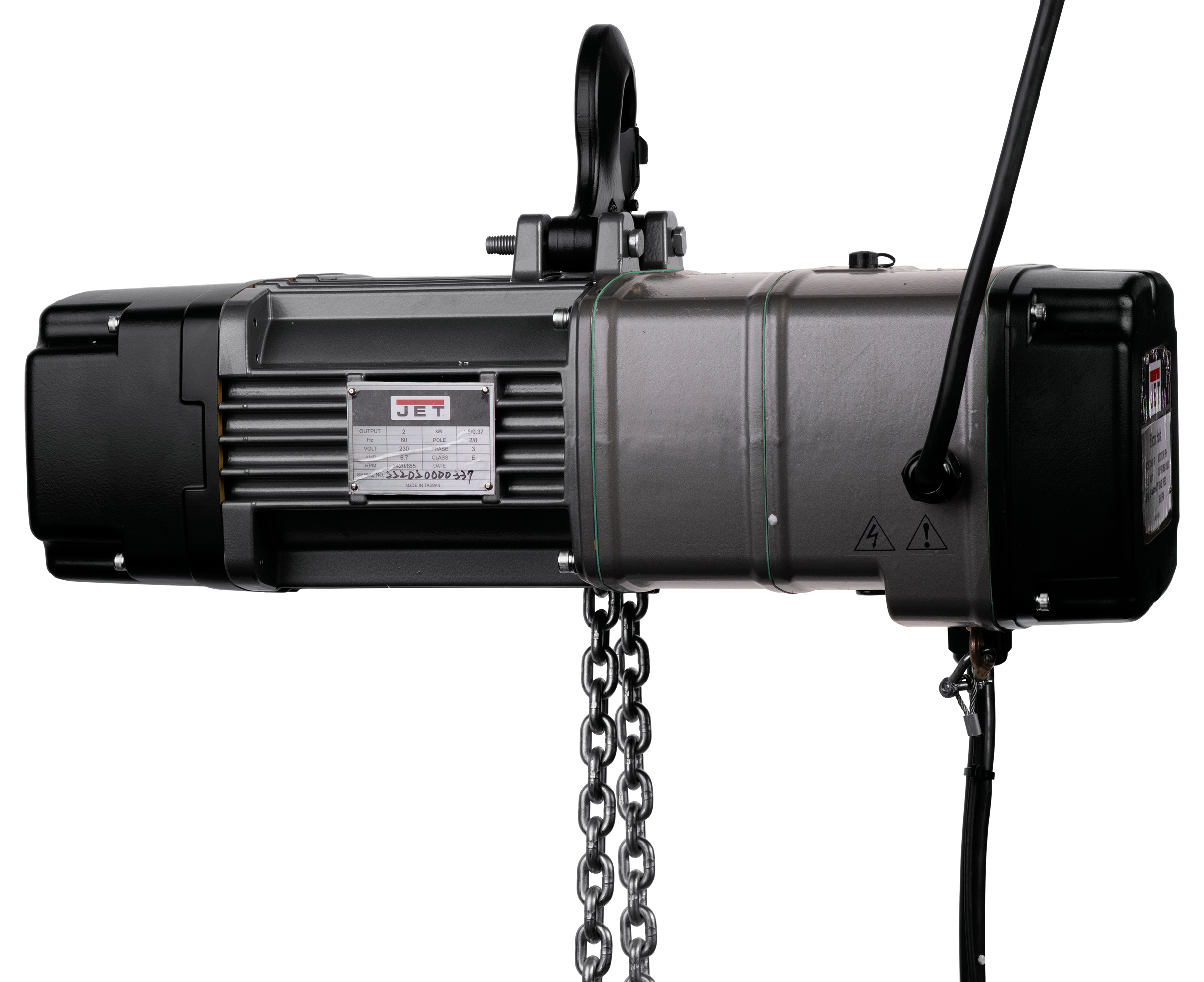

IP55-rated TEFC motor for washdown and outdoor environments
IP65-rated pendant control for waterproof protection
230V and 460V 3-phase configurations available
1/2 to 5 ton lifting capacity

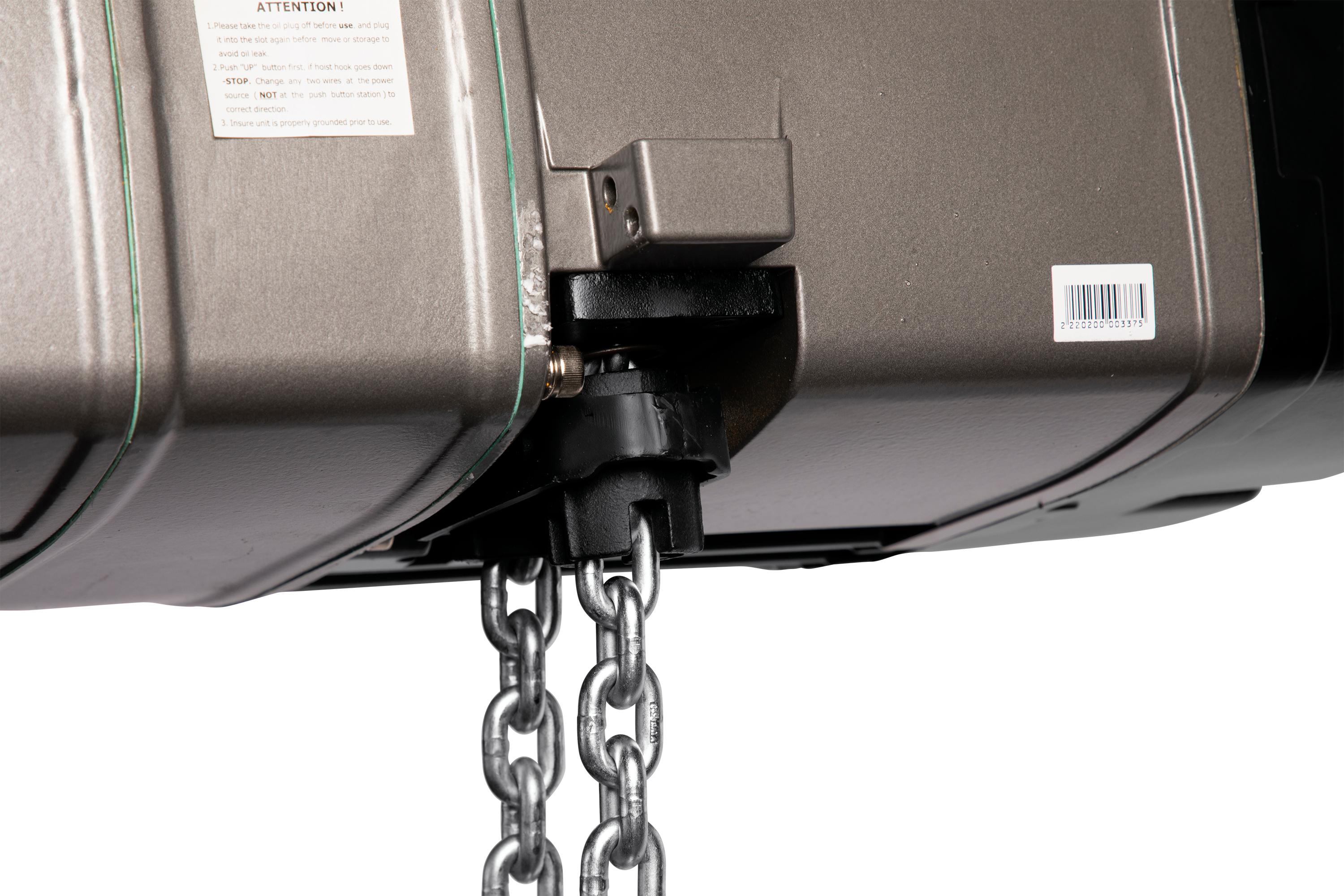

Grade 80 load chain
2-year warranty on all electrical components
ANSI/ASME B30.16 compliant

Voltage	230V 3-Phase
Capacity	1/2 Ton (1,100 lb)
Lift	10 ft
Chain Falls	1
Lift Speed (Low / High)	8 / 33 fpm
Motor	0.4 / 1.5 HP, 230V 3-Phase
Amp Draw (Low / High)	4.0 / 6.9 A
Headroom	19.7"
Duty Rating	H4
Time Rating	7.5 min on / 30 min cycle
Standards	ANSI/ASME B30.16

All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price. Accessorial fees (liftgate, residential, limited access) are disclosed in your quote before confirmation.
