Copperloy SYR16-70-36PL8 Steel Mobile Yard Ramp
Model: SYR16-70-36PL8
Configure — 7 options
Selected model: SYR16-70-36PL8
List Price
$26,769.00
Orders over $15,000 go through our verified purchase process — checkout completes on Shopify as normal, and we confirm your order within one business day to make sure payment and freight cleared cleanly. Prefer a quote first?
Questions on specs or freight? Call (949) 773-2777Free shipping — standard LTL freight included to commercial addresses
Residential, jobsite, or liftgate delivery? See delivery options →
Capacity / Key Spec
16,000 lb · 70 in. Wide · 36 ft Long
Equipment Weight
5,350 lbs

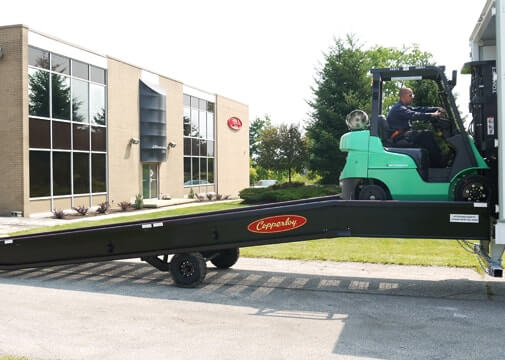

Copperloy SYR steel mobile yard ramp bridges ground level to trailer height anywhere on your property without a permanent dock. The steel grating deck provides maximum forklift traction in all weather conditions. Hydraulic adjustable legs dial in the exact working height for each trailer across a 38-65 in. range. Positioning sleeve included standard on all steel ramp models. Sold with 20 pct re-sale discount. Freight Class 150.
Key Features
- Steel grating deck for maximum forklift traction in all weather

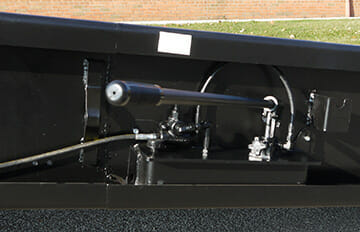

- Hydraulic adjustable legs — height range: 38 to 65 in.
- Positioning sleeve included standard on all steel models

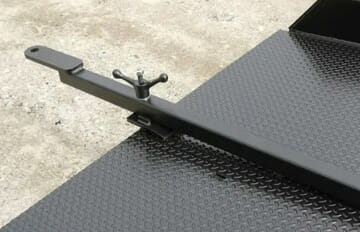

- Towbar available as option (CR-01-00177)
- 36 ft overall length on all models
- Available in 16,000, 20,000, 25,000, and 30,000 lb capacities
- Made in USA by JH Industries
| Capacity | 16,000 lb |
| Width | 70 in. |
| Length | 36 ft |
| Height Range | 38–65 in. |
| Deck | Steel grating |
Built-to-order — specs confirmed before production — our team verifies your exact configuration and freight before your order goes to the factory, so it's right the first time. As a made-to-order build, it is non-cancelable and non-returnable once submitted.
All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price, and liftgate service is free whenever you need it. Other accessorial fees (residential, limited access) are disclosed in your quote before confirmation.
