Copperloy SDG16-70-30 Dock-to-Ground Ramp
Model: SDG16-70-30
Configure — 13 options
Selected model: SDG16-70-30
List Price
$19,799.00
Orders over $15,000 go through our verified purchase process — checkout completes on Shopify as normal, and we confirm your order within one business day to make sure payment and freight cleared cleanly. Prefer a quote first?
Questions on specs or freight? Call (949) 773-2777Free shipping — standard LTL freight included to commercial addresses
Residential, jobsite, or liftgate delivery? See delivery options →
Capacity / Key Spec
16,000 lb · 70 in. Wide · 30 ft Long
Equipment Weight
4,030 lbs

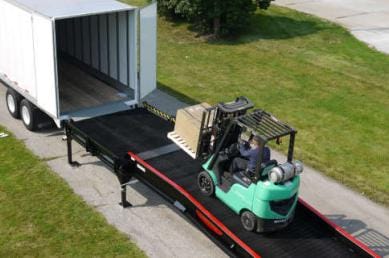

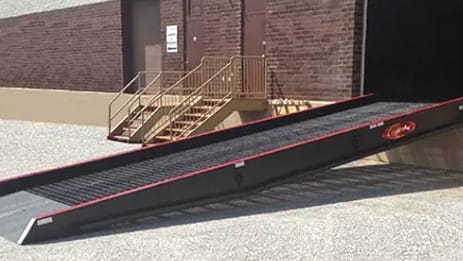

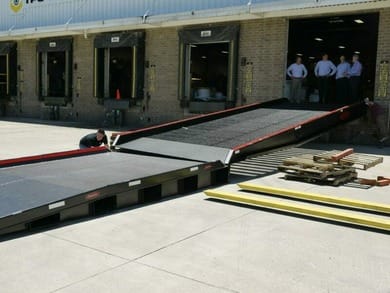

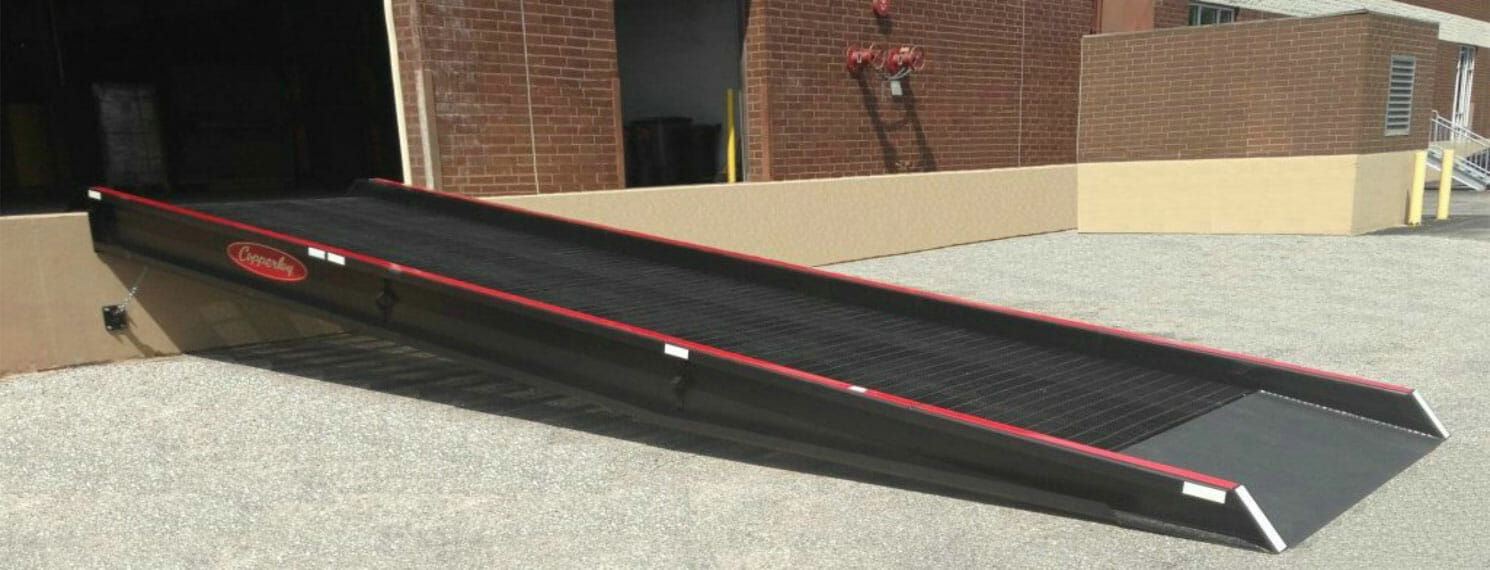

Copperloy SDG dock-to-ground ramp is a permanently positioned steel ramp that creates a fixed forklift access point from ground level to dock height — no wheels or undercarriage. Built for facilities with a permanent ground-level loading location, the SDG provides a clean, stable solution without the cost of a pit-style dock. All SDG ramps are 30 ft long with steel grating decks and a height range of 36-59 in. Sold with 20 pct re-sale discount. Freight Class 150.
Key Features
- Permanent ground-level installation — no wheels or undercarriage
- Steel grating deck for heavy forklift traffic
- Height range: 36 to 59 in.
- 30 ft overall length on all models
- Available in 70 in., 84 in., and 96 in. widths
- Capacities from 12,000 to 30,000 lb
- Made in USA by JH Industries
| Capacity | 16,000 lb |
| Width | 70 in. |
| Length | 30 ft |
| Height Range | 36–59 in. |
| Deck | Steel grating, permanent mount |
Built-to-order — specs confirmed before production — our team verifies your exact configuration and freight before your order goes to the factory, so it's right the first time. As a made-to-order build, it is non-cancelable and non-returnable once submitted.
All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price, and liftgate service is free whenever you need it. Other accessorial fees (residential, limited access) are disclosed in your quote before confirmation.
Authorized Dealer For
How Ordering Works
Order or request a quote
Buy online or talk to a specialist. We confirm your exact specs and application.
We schedule freight
Standard LTL freight is included — we arrange delivery to your commercial dock. No surprise bill.
Delivered to your dock
Factory-direct with tracking. Full OEM warranty, and we advocate for any claim.
We accept Visa, Mastercard, Amex, ACH & wire · Secure checkout
More in this category
Dock Equipment & Yard Ramps
Copperloy
SKU: SEL2066CG

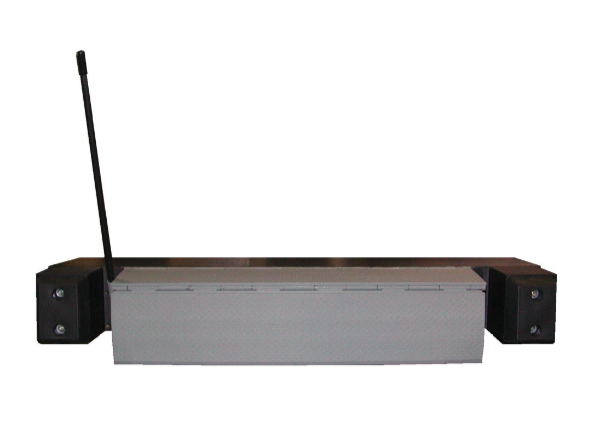

Copperloy SEL2066CG Edge-of-Dock Leveler
