JET SSC Series Electric Chain Hoist — 3 Ton, 20' Lift, 115/230V 1-Phase

Name: JET SSC Series Electric Chain Hoist — 3 Ton, 20' Lift, 115/230V 1-Phase
Brand: JET Tools
SKU: 3SS-1C-20
Price: 8219 USD
Availability: InStock

Model: 3SS-1C-20

3–5 Business Days

Configure — 30 options

CapacityLiftVoltage

Selected model: 3SS-1C-20

List Price

$8,219.00

Free shipping · standard freight included

Request a Quote

Free shipping — standard LTL freight included to commercial addresses

Capacity / Key Spec

3 Ton

Equipment Weight

246 lbs

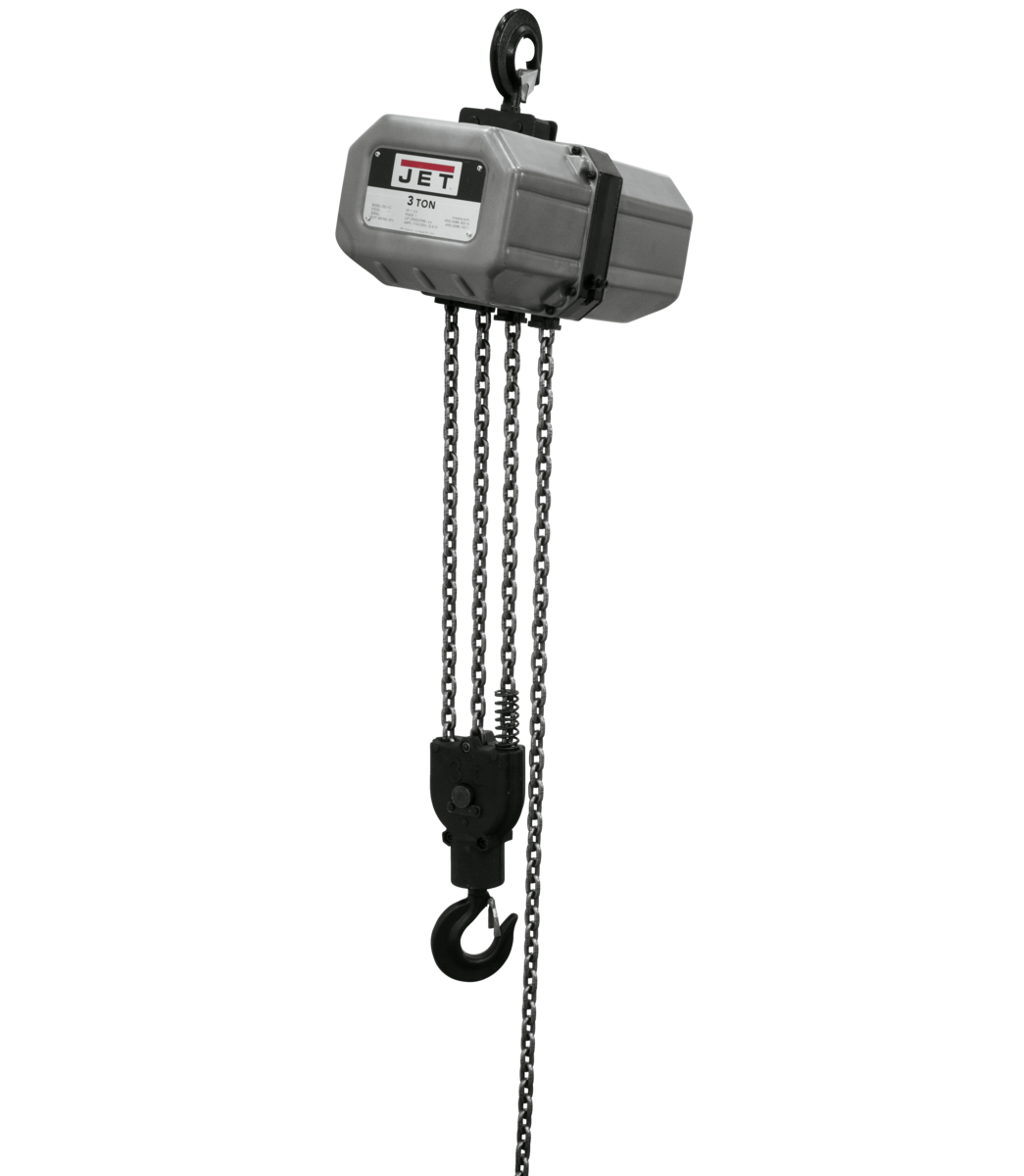

The JET SSC Series Single-Speed Electric Chain Hoist is the professional-grade solution for heavy-duty overhead lifting. Available from 1/2 to 5 tons in single-phase (115/230V) or 3-phase (230/460V) configurations, the SSC features a slip clutch overload protection system, DC electromagnetic brake for precise load control, and Grade 80 load chain. Built for consistent industrial use.

Key Features

Slip clutch overload protection
DC electromagnetic brake for precise, controlled load holding
Grade 80 load chain
1/2 to 5 ton capacity
Single-phase (115/230V) and 3-phase (230/460V) configurations
Standard lifts: 10', 15', and 20'
ANSI/ASME B30.16 compliant

Voltage	115/230V 1-Phase
Capacity	3 Ton (6,600 lb)
Lift	20 ft
Motor	1-3/4 HP (prewired 230V; usable 115/230V)
Lift Speed	6.6 fpm
Headroom	31-1/2"
Chain Falls	3 (8 mm × 3)
Rated Amps	20.8 A @ 115V / 10.0 A @ 230V
Brake	DC electromagnetic
Overload Protection	Slip clutch
Duty Rating	H3 (15 min. on / 150 starts/hr)
Standards	ANSI/ASME B30.16 / HST-1

All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price. Accessorial fees (liftgate, residential, limited access) are disclosed in your quote before confirmation.
