JET TS Series Two-Speed Electric Chain Hoist — 1 Ton, 10' Lift, 460V 3-Phase

Name: JET TS Series Two-Speed Electric Chain Hoist — 1 Ton, 10' Lift, 460V 3-Phase
Brand: JET Tools
SKU: TS100-010
Price: 7699 USD
Availability: InStock

Model: TS100-010

3–5 Business Days

Configure — 60 options

CapacityLiftVoltage

Selected model: TS100-010

List Price

$7,699.00

Free shipping · standard freight included

Request a Quote

Free shipping — standard LTL freight included to commercial addresses

Capacity / Key Spec

1 Ton

Equipment Weight

218 lbs

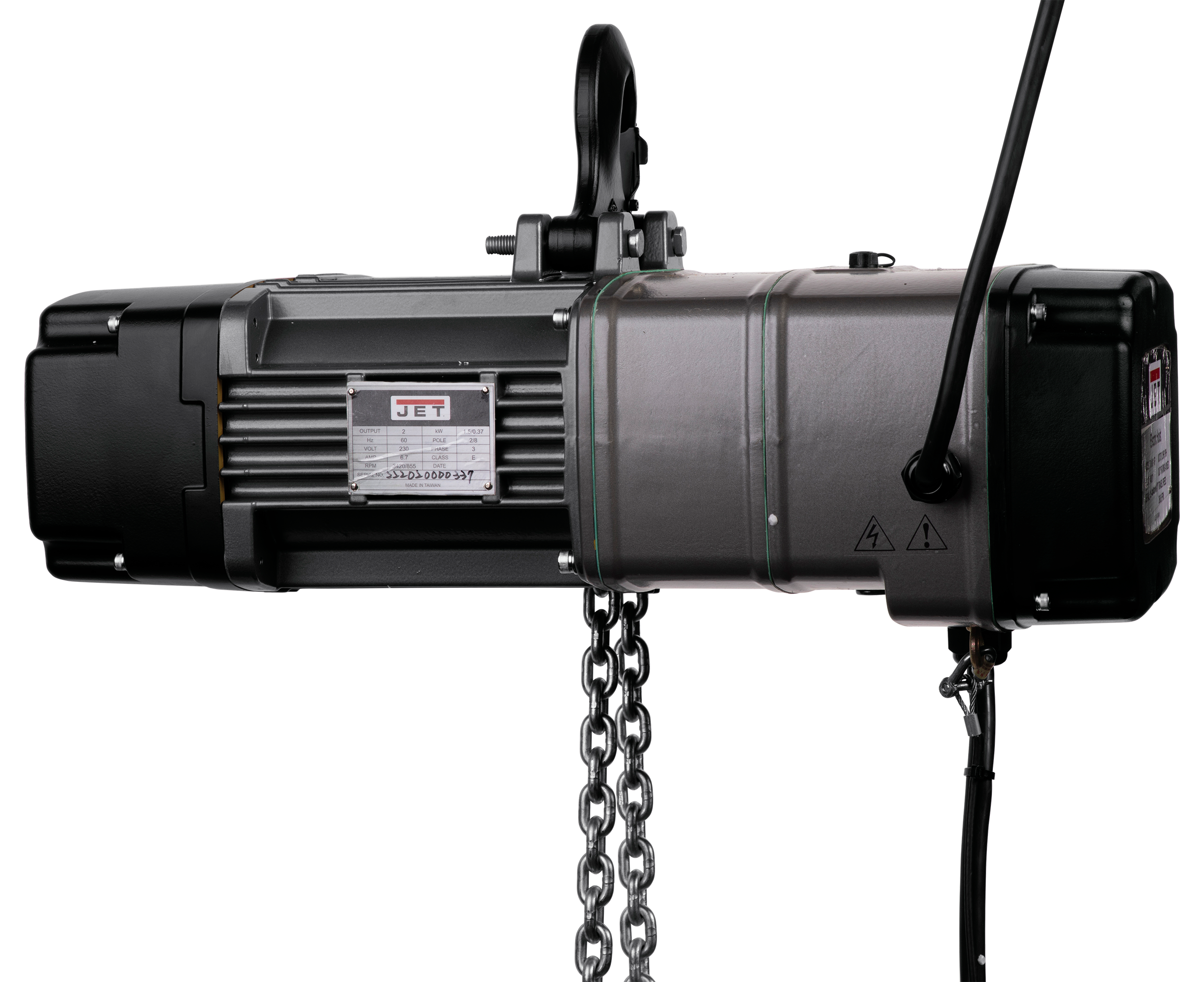

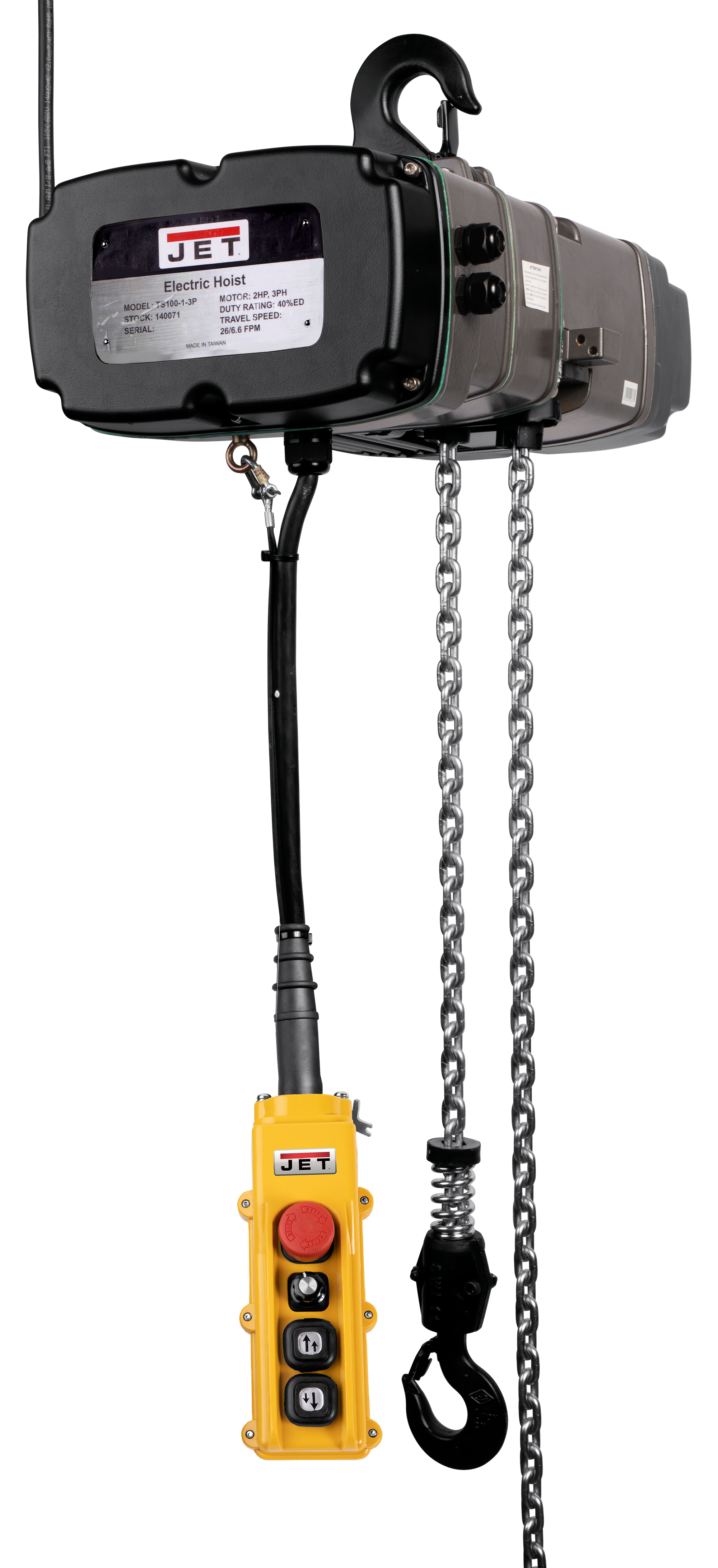

The JET TS Series Two-Speed Electric Chain Hoist is the industrial-grade solution for precision overhead lifting. Available in 1/2 to 5 ton capacities with 230V or 460V 3-phase power, the TS delivers two-speed performance — 3 fpm for precision positioning and 33 fpm for rapid travel — via an IP55-rated TEFC motor and IP65-rated pendant control. The 2-year warranty covers all electrical components.

Key Features

Two-speed operation: 3 fpm precision mode and 33 fpm travel mode
IP55-rated TEFC motor for washdown and outdoor environments
IP65-rated pendant control for waterproof protection
230V and 460V 3-phase configurations available
1/2 to 5 ton lifting capacity
Grade 80 load chain
2-year warranty on all electrical components
ANSI/ASME B30.16 compliant

WEIGHTS & DIMENSIONS

Capacity	1 Ton
Chain Grade	Grade 80

POWER & DETAILS

Voltage	460V 3-Phase
Lift	10 ft
Lift Speed	High 26 fpm / Low 7 fpm
Motor	2 HP high / 0.5 HP low TEFC (two-speed)
Power	460V / 3-phase
Falls	1
Headroom	21-5/16"
IP Rating	IP55 (motor), IP65 (pendant)

All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price. Accessorial fees (liftgate, residential, limited access) are disclosed in your quote before confirmation.
