JET TS+MT Electric Hoist & Trolley Kit — 1/2 Ton, 10' Lift, 230V 3-Phase

Name: JET TS+MT Electric Hoist & Trolley Kit — 1/2 Ton, 10' Lift, 230V 3-Phase
Brand: JET Tools
SKU: TS050-010
Price: 9439 USD
Availability: InStock

Model: TS050-010

3–5 Business Days

Configure — 60 options

CapacityLiftVoltage

Selected model: TS050-010

List Price

$9,439.00

Free shipping · standard freight included

Request a Quote

Free shipping — standard LTL freight included to commercial addresses

Capacity / Key Spec

1/2 Ton

Equipment Weight

172 lbs

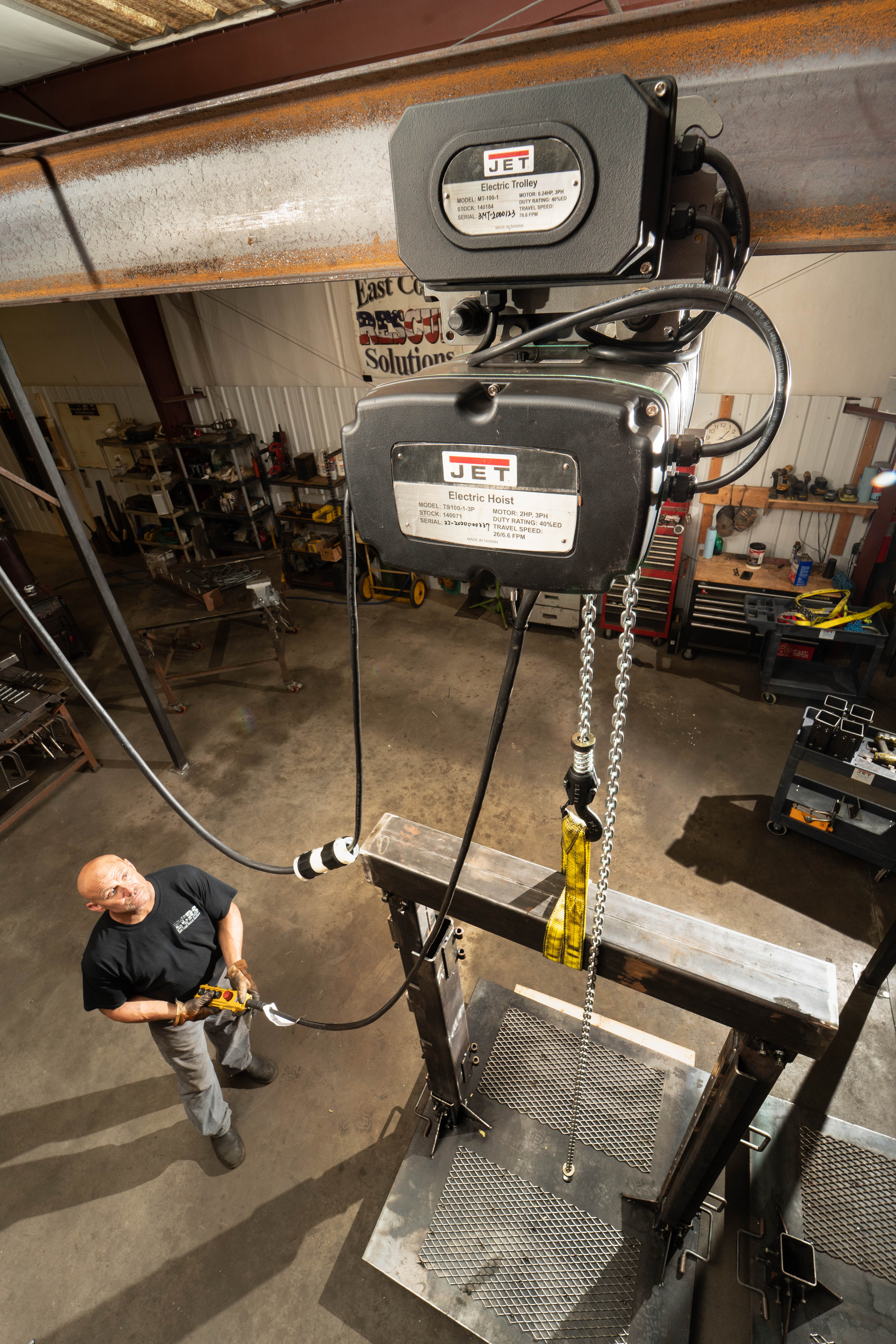

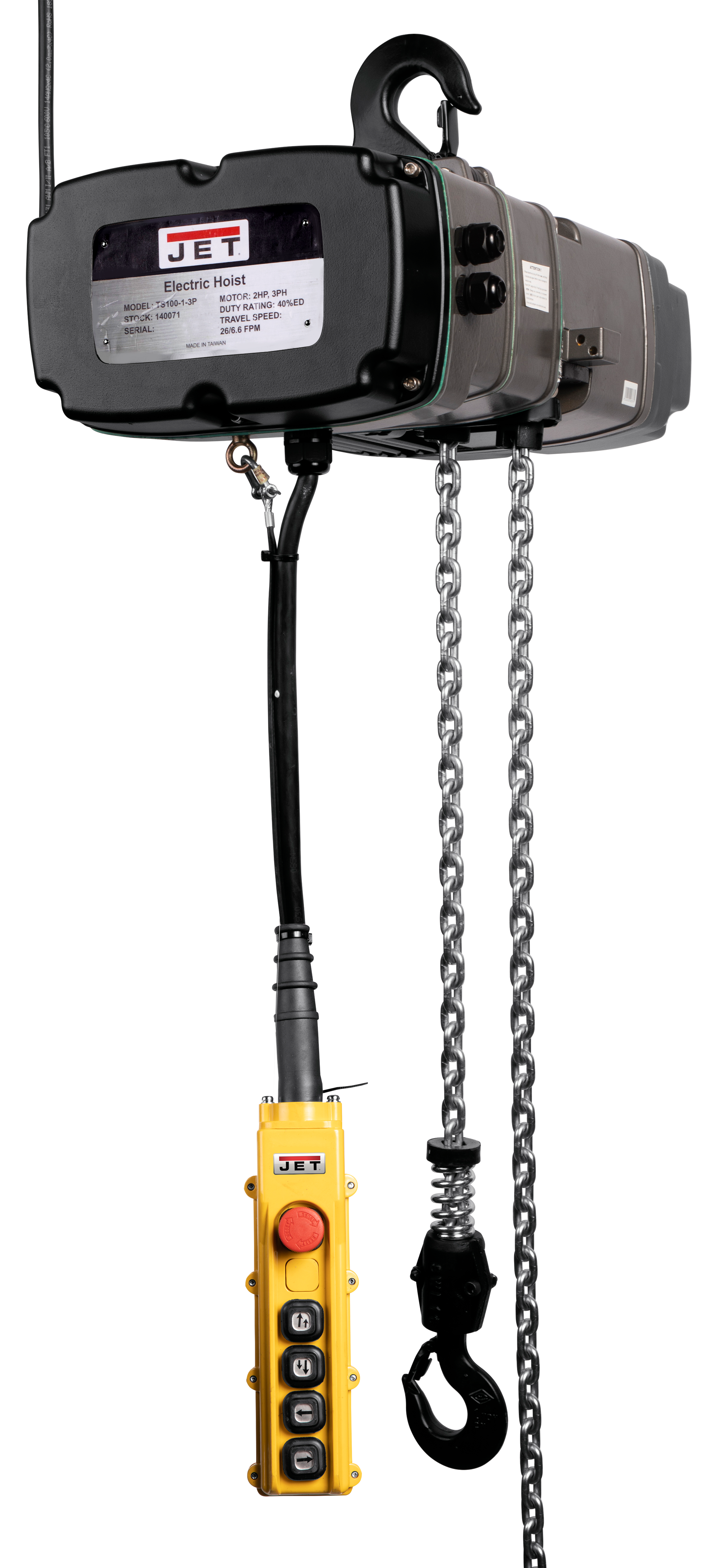

The JET TS+MT Combo includes a TS Series Two-Speed Electric Chain Hoist factory-matched with an MT Series Motorized Trolley and 4-button pendant control — everything needed for a complete overhead crane lifting system out of the box. The 4-button pendant provides independent hoist and trolley directional control. Available in 230V and 460V 3-phase across 1/2 to 5 ton capacities.

Key Features

Complete overhead crane system: hoist + trolley + 4-button pendant

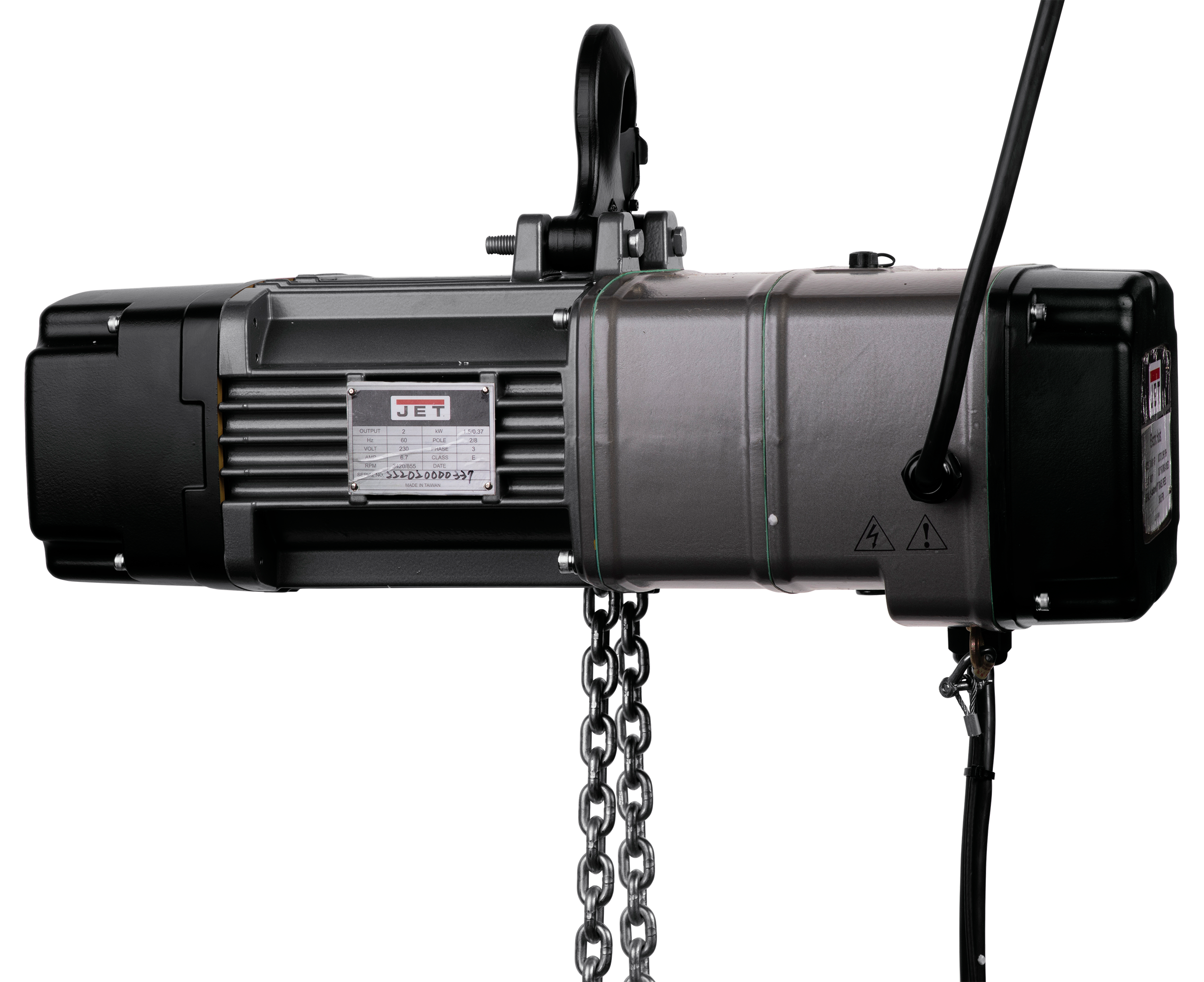

TS Series two-speed hoist: 3 fpm precision / 33 fpm travel

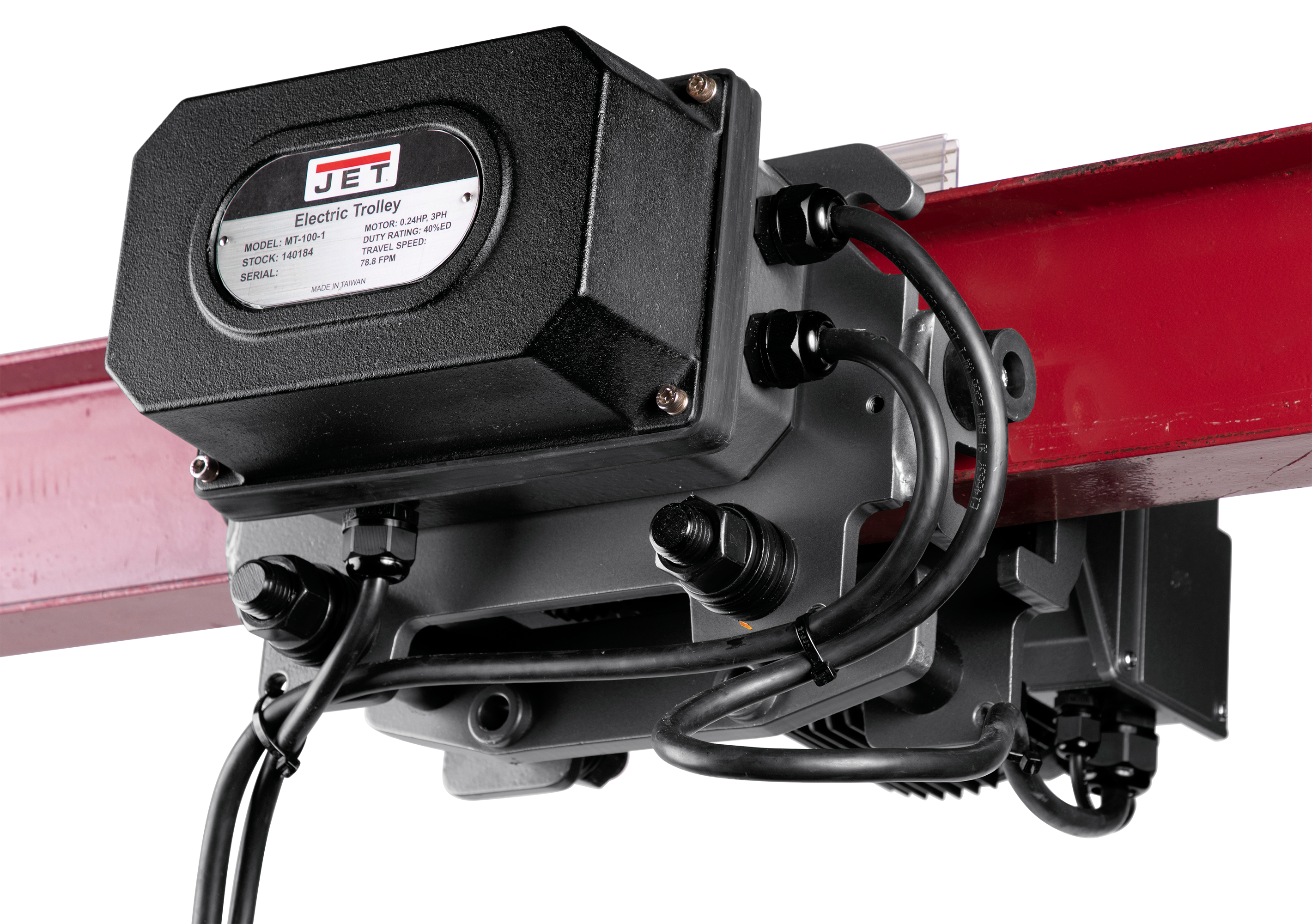

MT Series motorized trolley: 20 fpm / 79 fpm beam travel

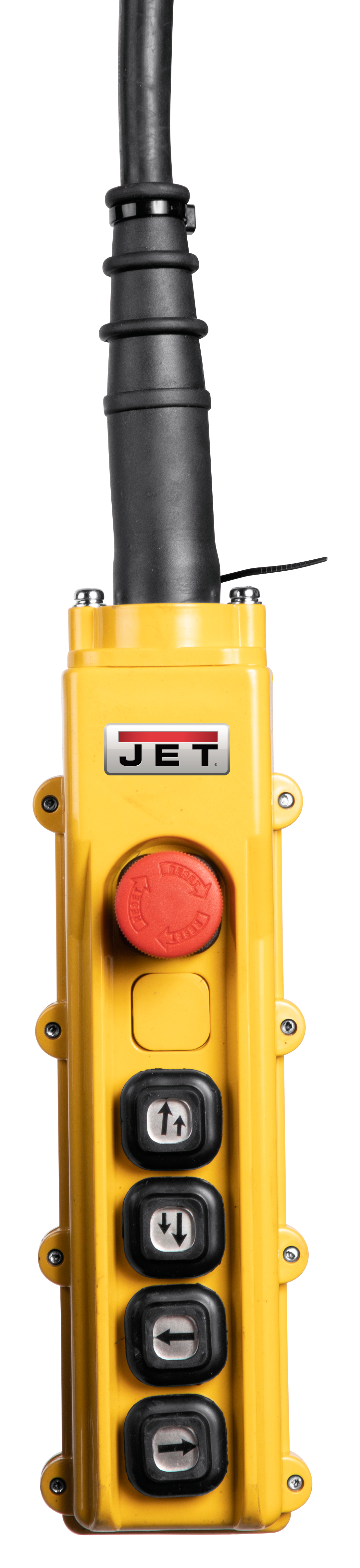

4-button pendant for independent hoist and trolley control
IP55/IP65 weather-rated motor and controls
230V and 460V 3-phase configurations
1/2 to 5 ton capacity
2-year warranty on all electrical components

Voltage	230V 3-Phase
Capacity	1/2 Ton (1,100 lb)
Lift	10 ft
Chain Falls	1
Lift Speed (Low / High)	8 / 33 fpm
Motor	0.4 / 1.5 HP, 230V 3-Phase
Amp Draw (Low / High)	4.0 / 6.9 A
Headroom	19.7"
Duty Rating	H4
Time Rating	7.5 min on / 30 min cycle
Standards	ANSI/ASME B30.16

All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price. Accessorial fees (liftgate, residential, limited access) are disclosed in your quote before confirmation.
