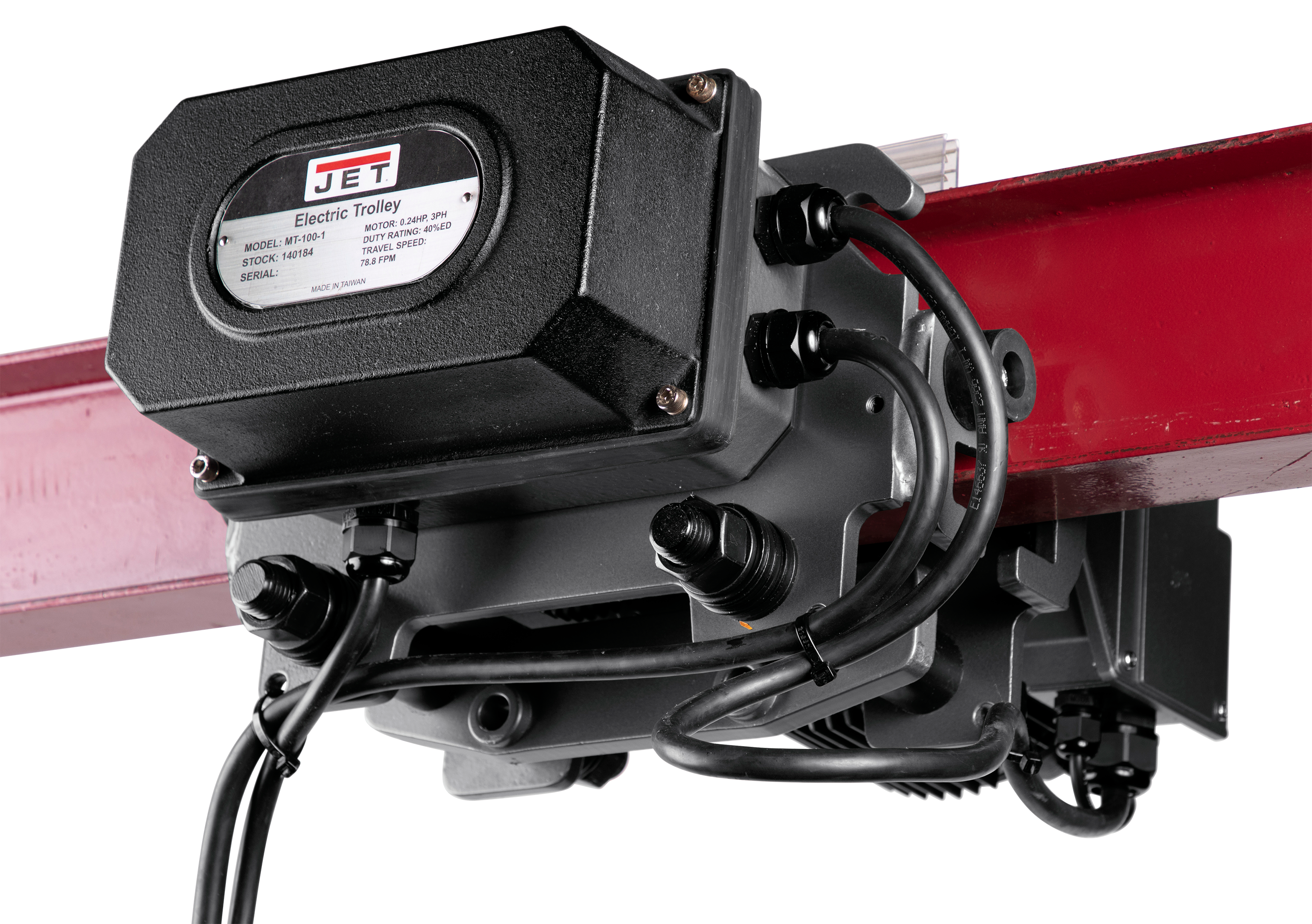

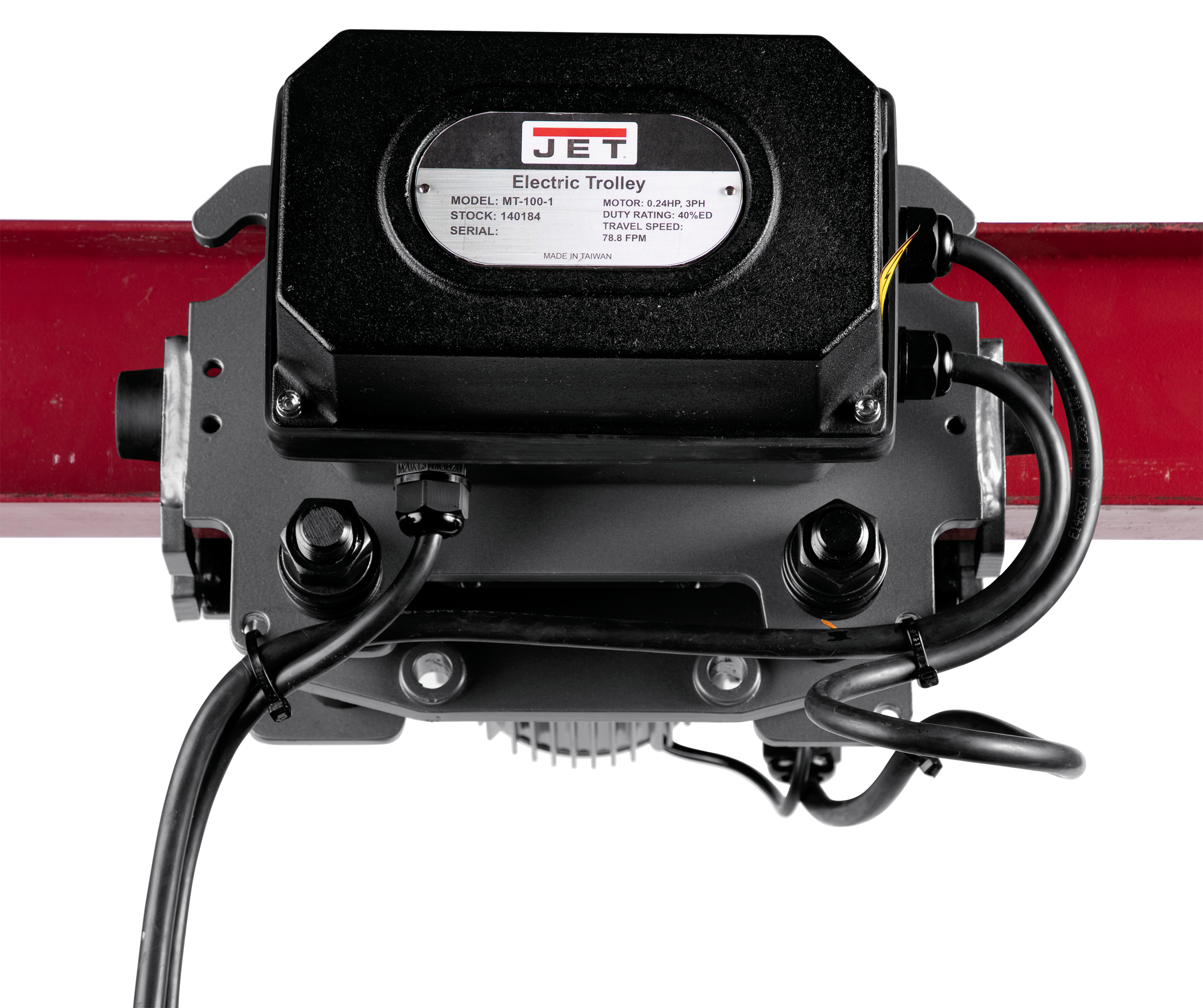

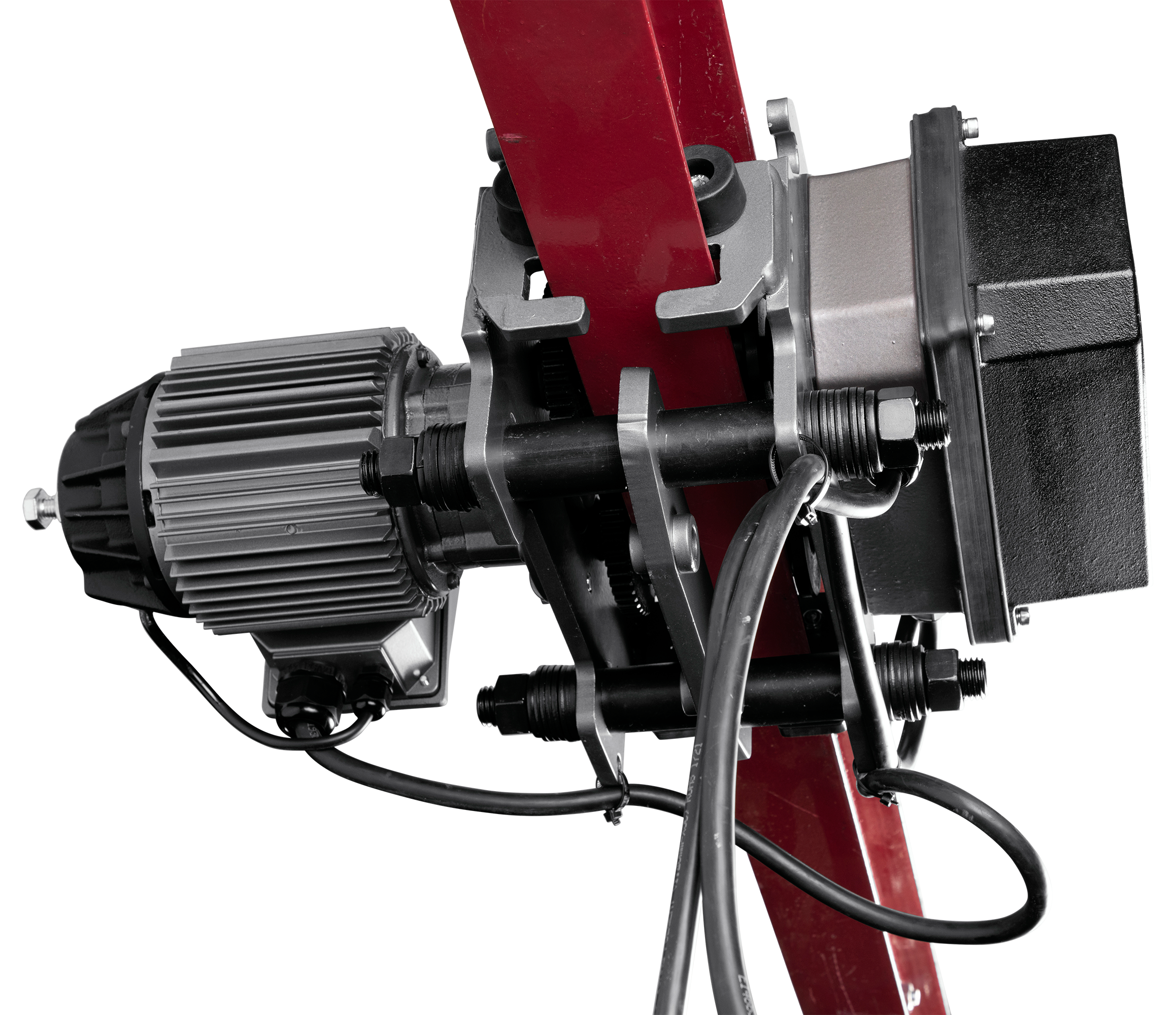

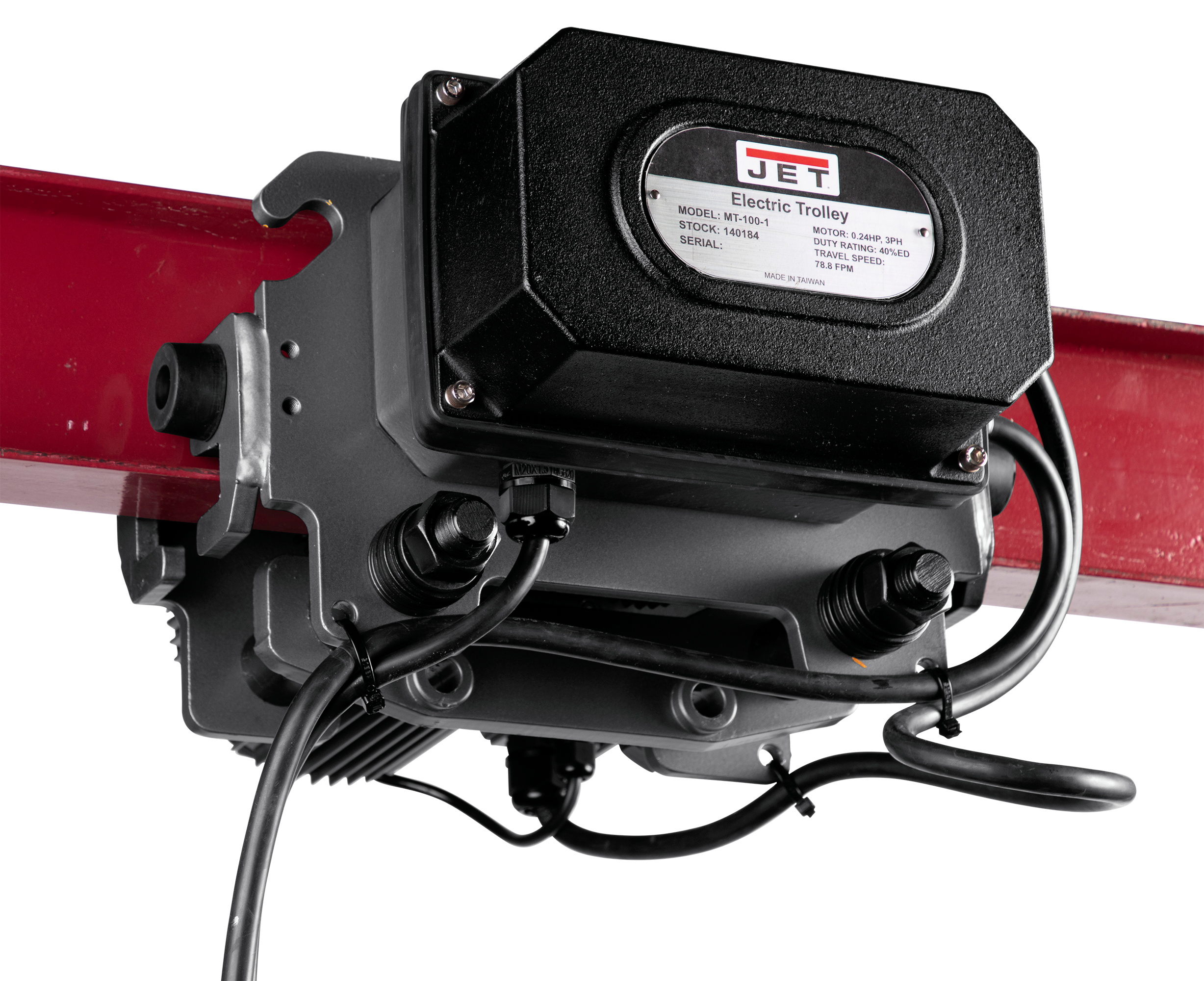

JET MT Series Two-Speed Motorized Trolley — 3 Ton, 230V 3-Phase
Model: MT300
Configure — 10 options
Selected model: MT300
List Price
$4,169.00
Free shipping · standard freight included
Capacity / Key Spec
3 Ton
Equipment Weight
243 lbs
The JET MT Series Two-Speed Motorized Trolley is engineered to pair with JET TS Series electric hoists for complete overhead crane system solutions. Available in 230V and 460V 3-phase, the MT features two-speed beam travel (20 fpm precision / 79 fpm rapid), IP55/IP65 weather ratings, and 0.8HP maximum output across capacities from 1/2 to 5 tons.
Key Features
- Two-speed beam travel: 20 fpm (precision) and 79 fpm (rapid)
- 0.8HP maximum motor output
- IP55/IP65 weather-rated motor and controls
- Matches TS Series capacity ratings (1/2 to 5 tons)
- 230V and 460V 3-phase configurations

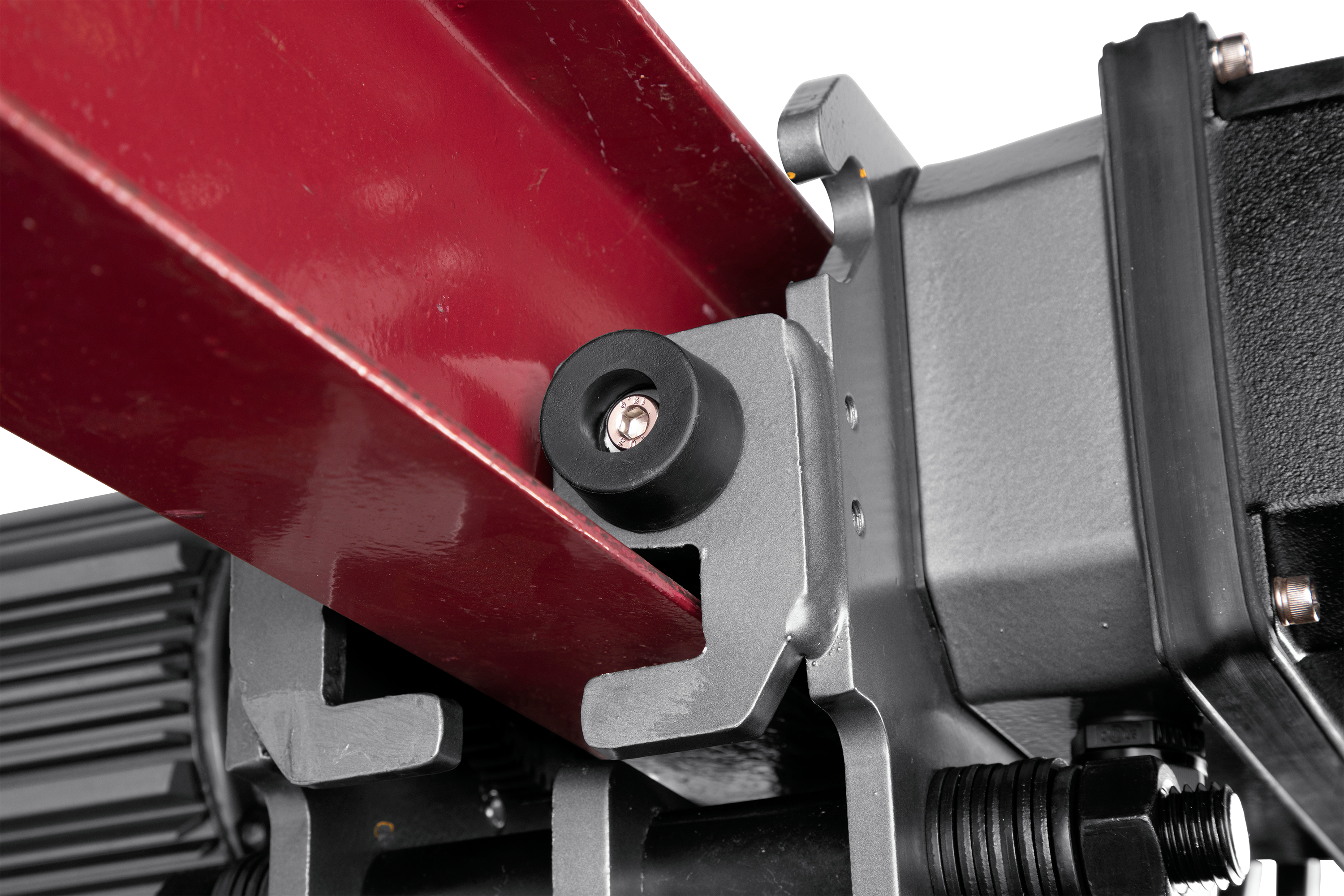

- Compatible with standard I-beam and wide-flange beams
WEIGHTS & DIMENSIONS
| Travel Speed | High 79 fpm / Low 20 fpm |
| Capacity | 3 Ton (6,600 lb) |
POWER & DETAILS
| Voltage | 230V 3-Phase |

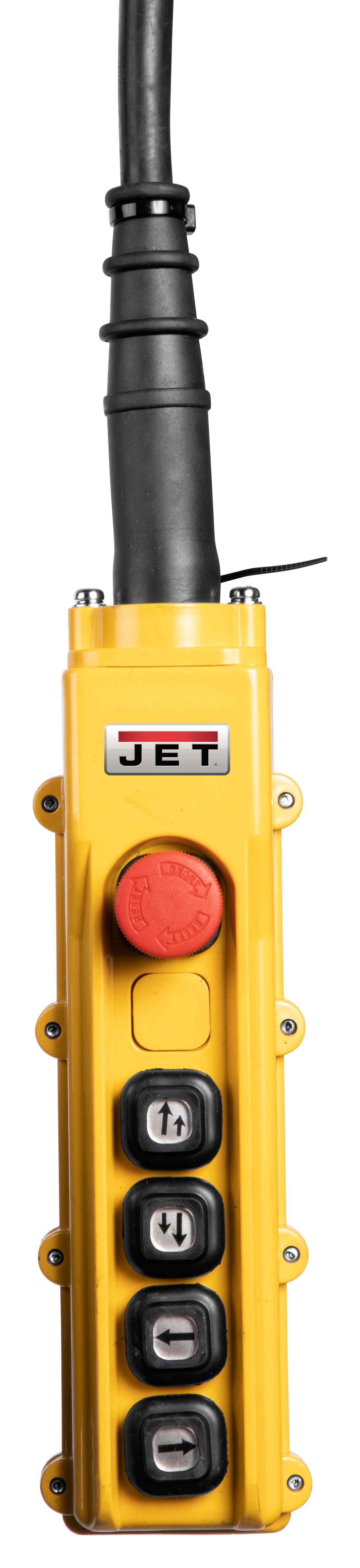

| IP Rating | IP55 (trolley), IP65 (pendant) |
| Standards | ANSI/ASME B30.16 / TAA compliant |
| Motor | 0.2 / 0.8 HP TEFC (low/high speed) |
| Power | 230V / 3-Phase |
| Beam Flange | 5"–7" |
| Wheel Dia. | 1-1/2" |
All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price. Accessorial fees (liftgate, residential, limited access) are disclosed in your quote before confirmation.
