JET TS+MT Electric Hoist & Trolley Kit — 3 Ton, 15' Lift, 230V 3-Phase

Name: JET TS+MT Electric Hoist & Trolley Kit — 3 Ton, 15' Lift, 230V 3-Phase
Brand: JET Tools
SKU: TS300-015
Price: 14819 USD
Availability: InStock

Model: TS300-015

3–5 Business Days

Configure — 60 options

CapacityLiftVoltage

Selected model: TS300-015

List Price

$14,819.00

Free shipping · standard freight included

Request a Quote

Free shipping — standard LTL freight included to commercial addresses

Capacity / Key Spec

3 Ton

Equipment Weight

421 lbs

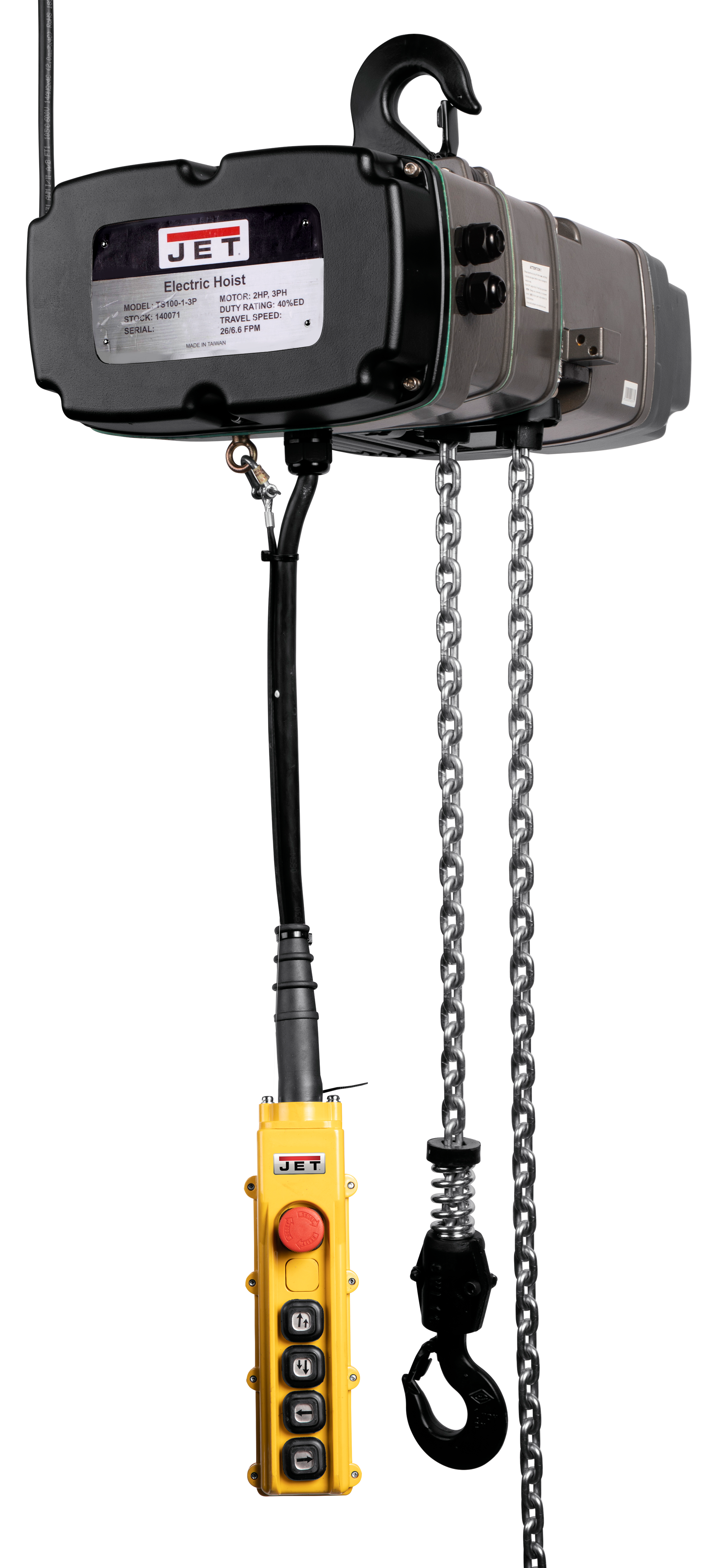

The JET TS+MT Combo includes a TS Series Two-Speed Electric Chain Hoist factory-matched with an MT Series Motorized Trolley and 4-button pendant control — everything needed for a complete overhead crane lifting system out of the box. The 4-button pendant provides independent hoist and trolley directional control. Available in 230V and 460V 3-phase across 1/2 to 5 ton capacities.

Key Features

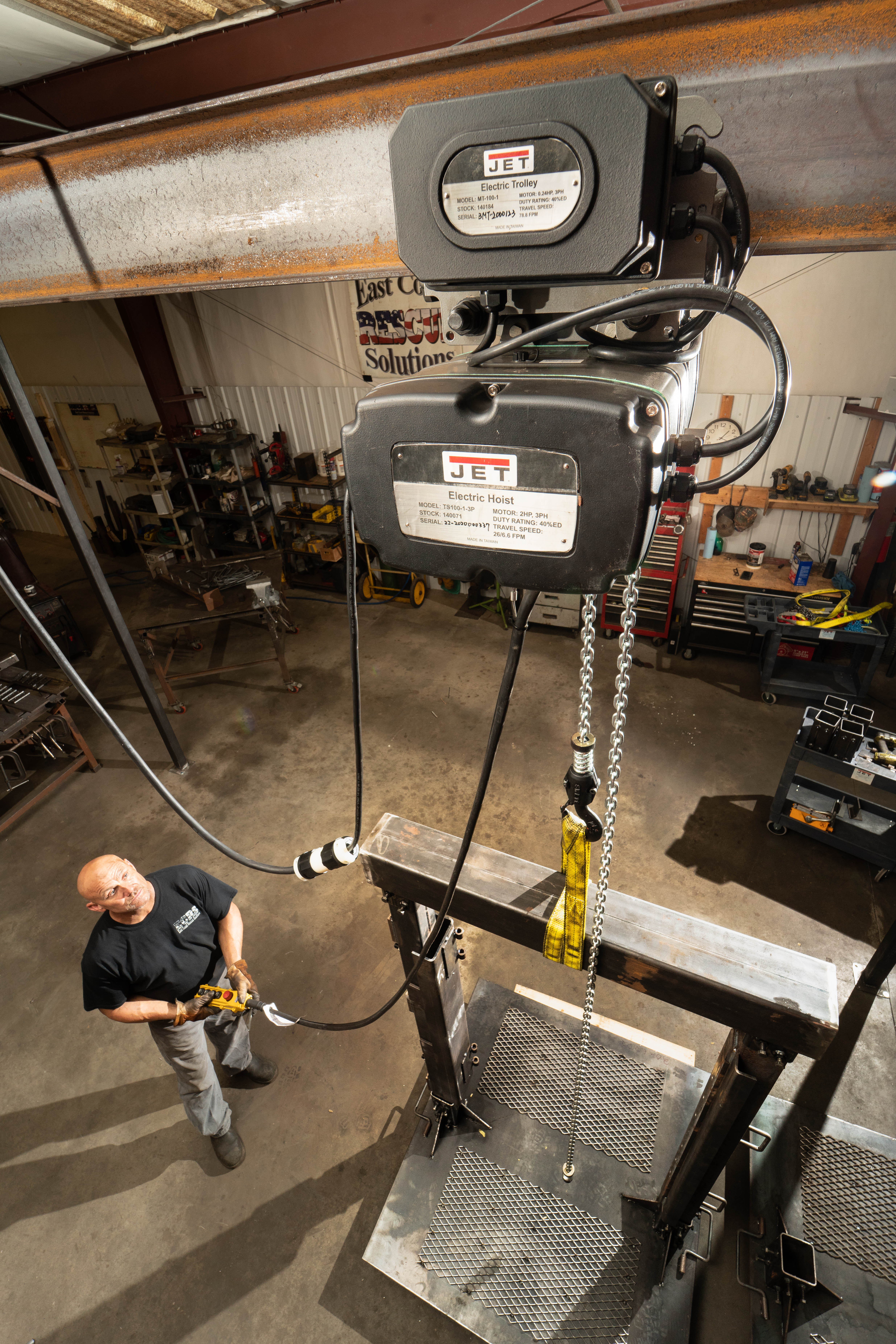

Complete overhead crane system: hoist + trolley + 4-button pendant

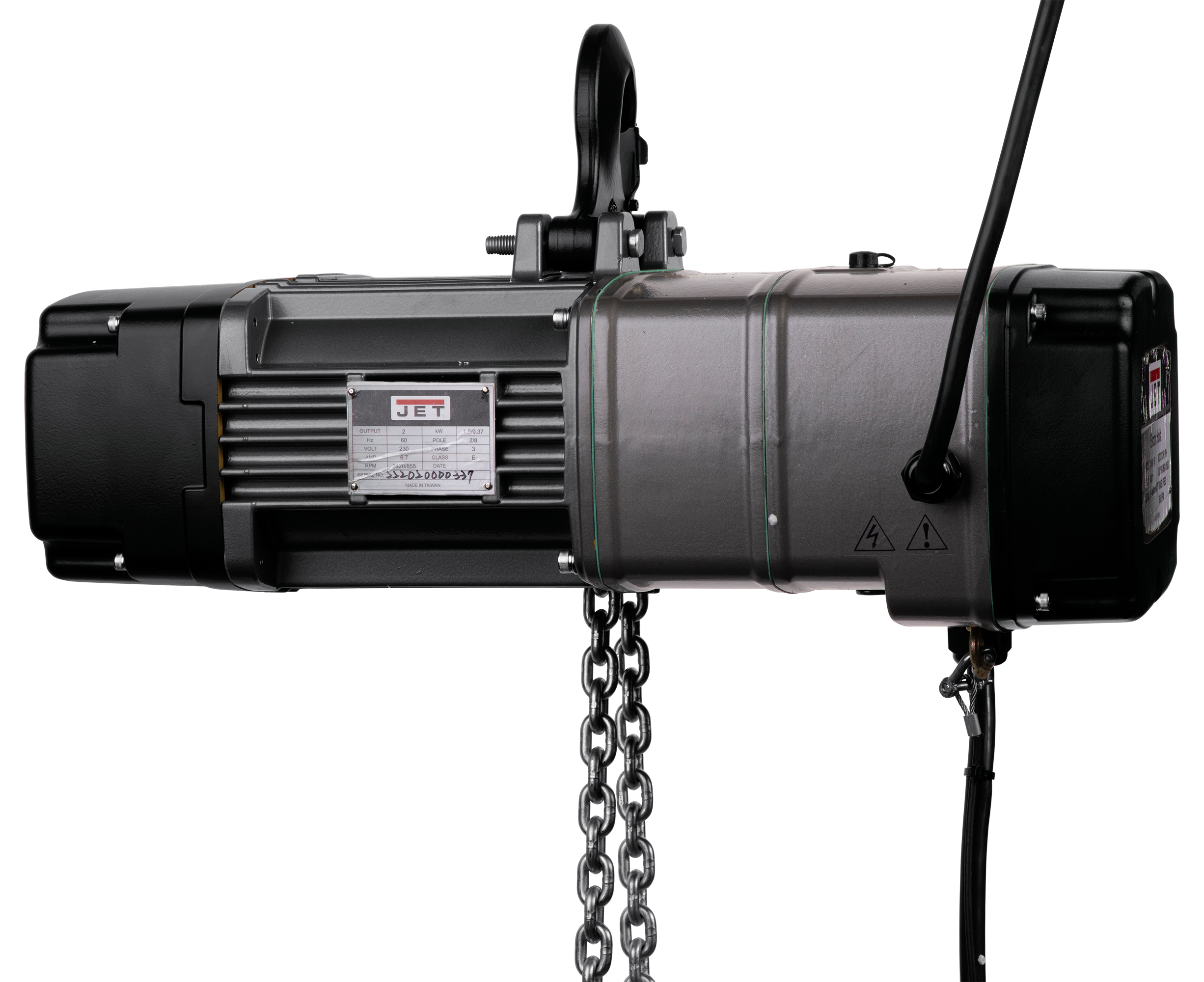

TS Series two-speed hoist: 3 fpm precision / 33 fpm travel

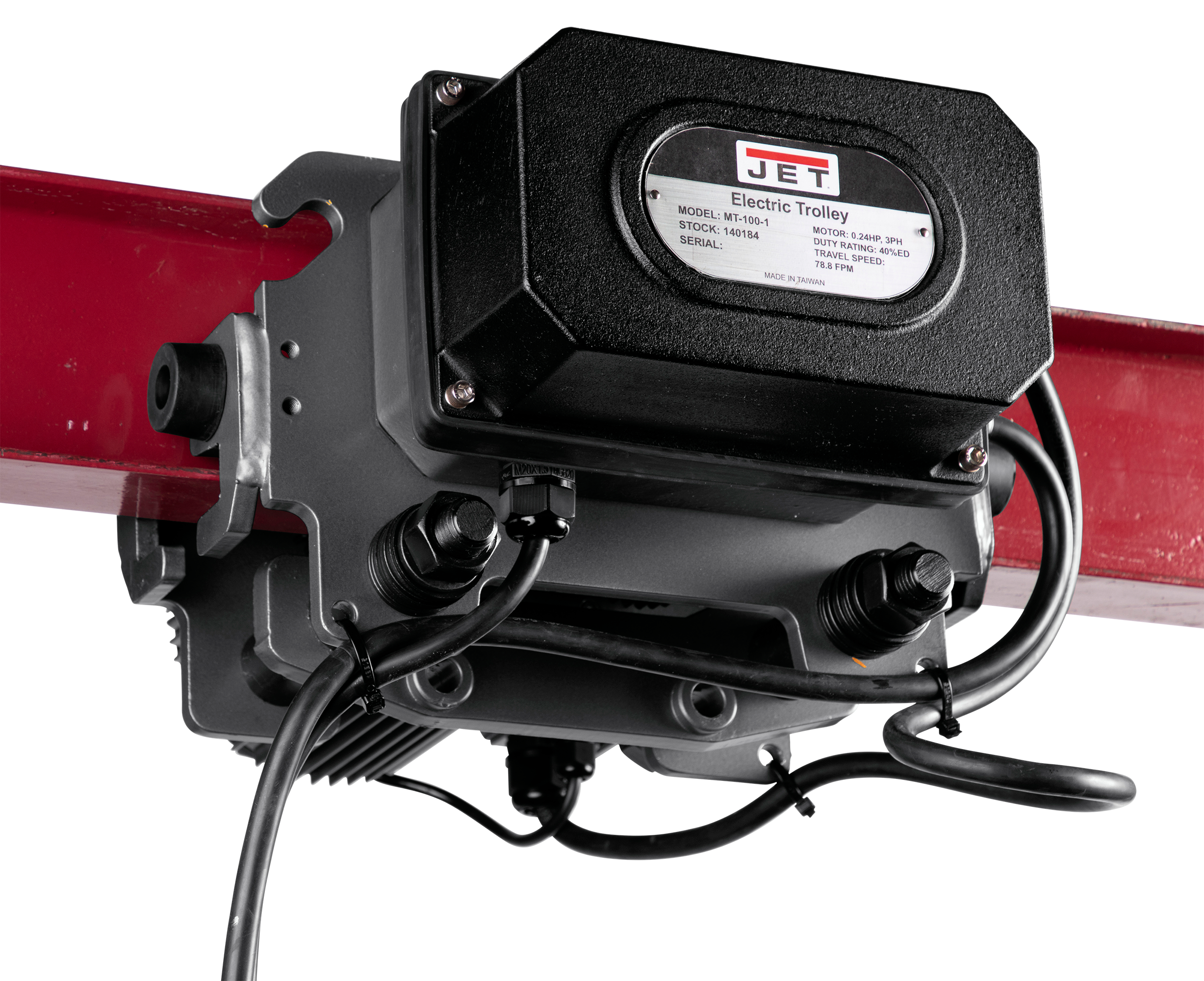

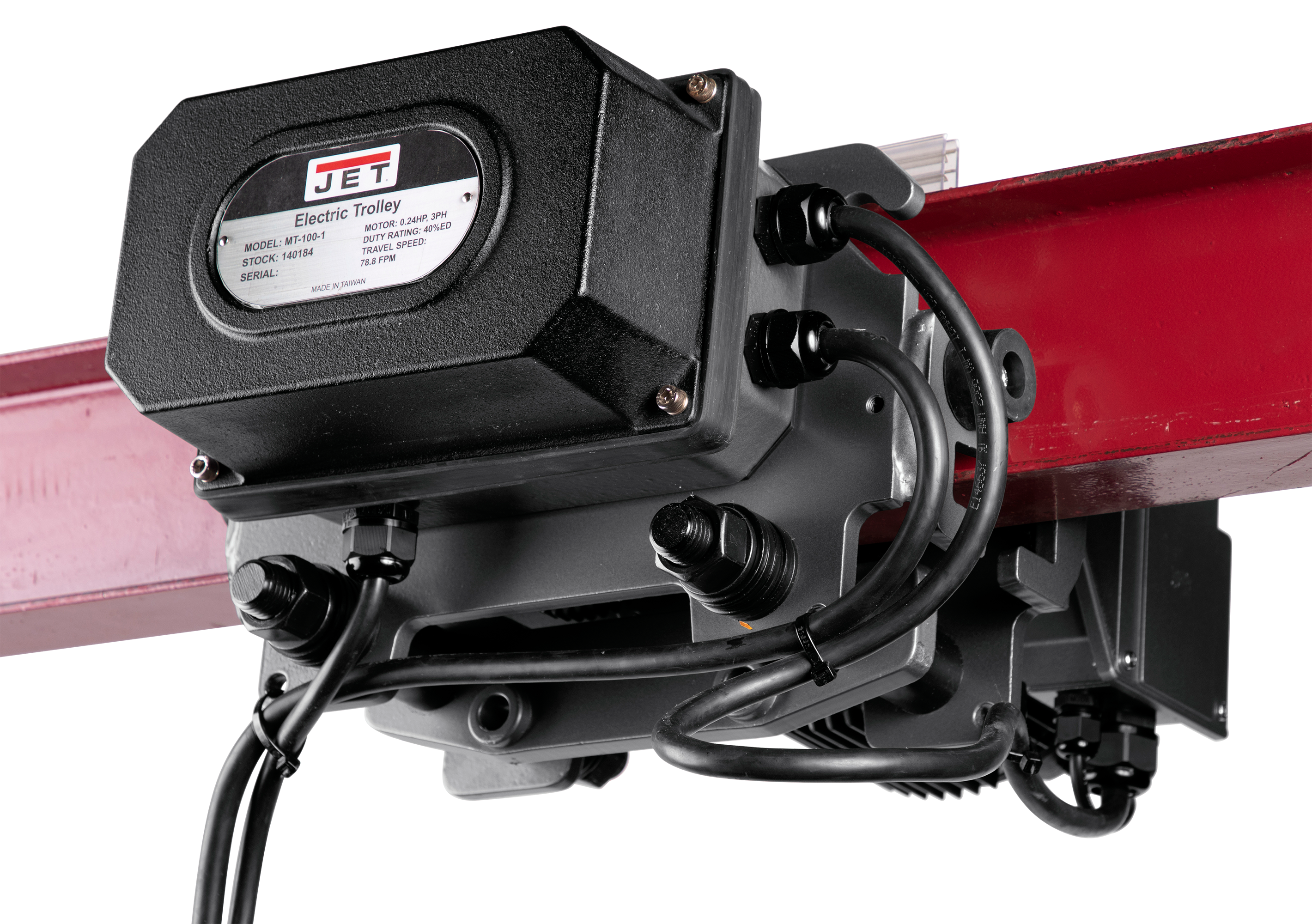

MT Series motorized trolley: 20 fpm / 79 fpm beam travel

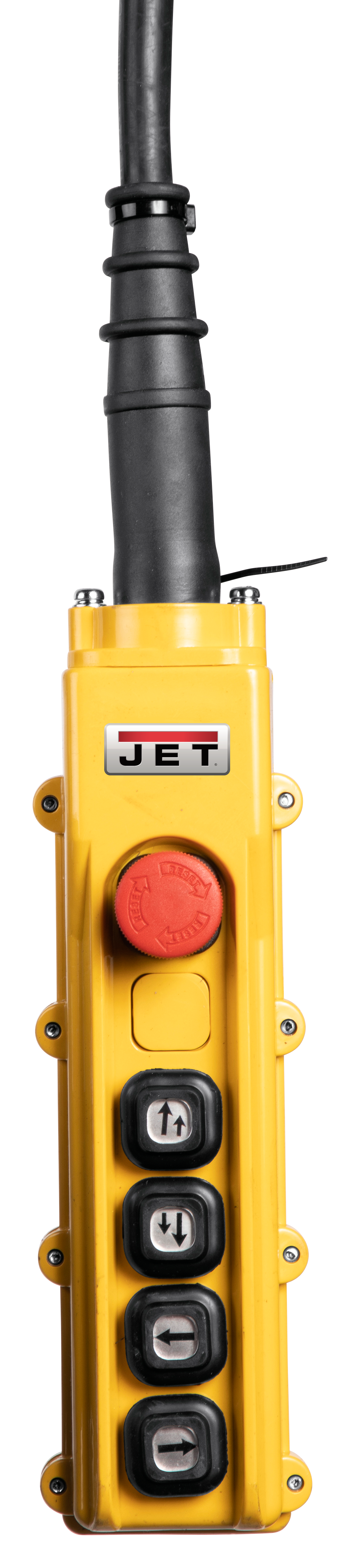

4-button pendant for independent hoist and trolley control
IP55/IP65 weather-rated motor and controls
230V and 460V 3-phase configurations
1/2 to 5 ton capacity
2-year warranty on all electrical components

WEIGHTS & DIMENSIONS

Capacity	3 Ton
Trolley Travel	High 79 fpm / Low 20 fpm
Chain Grade	Grade 80

POWER & DETAILS

Voltage	230V 3-Phase
Lift	15 ft
Hoist Lift Speed	High 21 fpm / Low 5 fpm
Hoist Motor	1.2 HP TEFC (two-speed)
Hoist Falls	2
Hoist Headroom	41-5/16"
Trolley Motor	0.8 HP TEFC (two-speed)
Power	230V / 3-phase
IP Rating	IP55 (motor), IP65 (pendant)

All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price. Accessorial fees (liftgate, residential, limited access) are disclosed in your quote before confirmation.
