JET Trademaster BLVS Electric Chain Hoist — 1 Ton, 20' Lift, 115V

Name: JET Trademaster BLVS Electric Chain Hoist — 1 Ton, 20' Lift, 115V
Brand: JET Tools
SKU: BLVS100-020
Price: 10719 USD
Availability: InStock

Model: BLVS100-020

3–5 Business Days

Configure — 10 options

CapacityLift

Selected model: BLVS100-020

List Price

$10,719.00

Free shipping · standard freight included

Request a Quote

Free shipping — standard LTL freight included to commercial addresses

Capacity / Key Spec

1 Ton

Equipment Weight

183 lbs

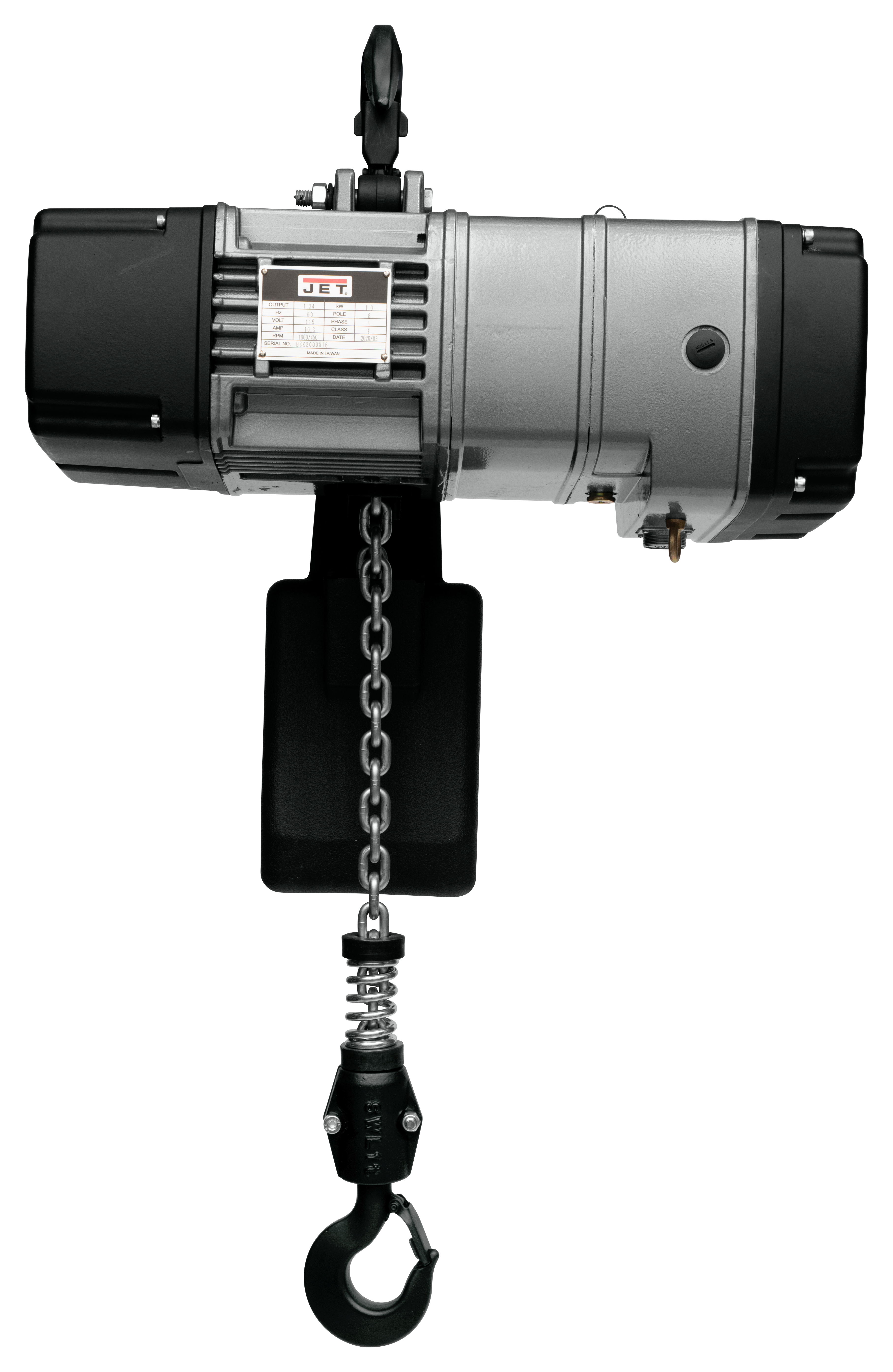

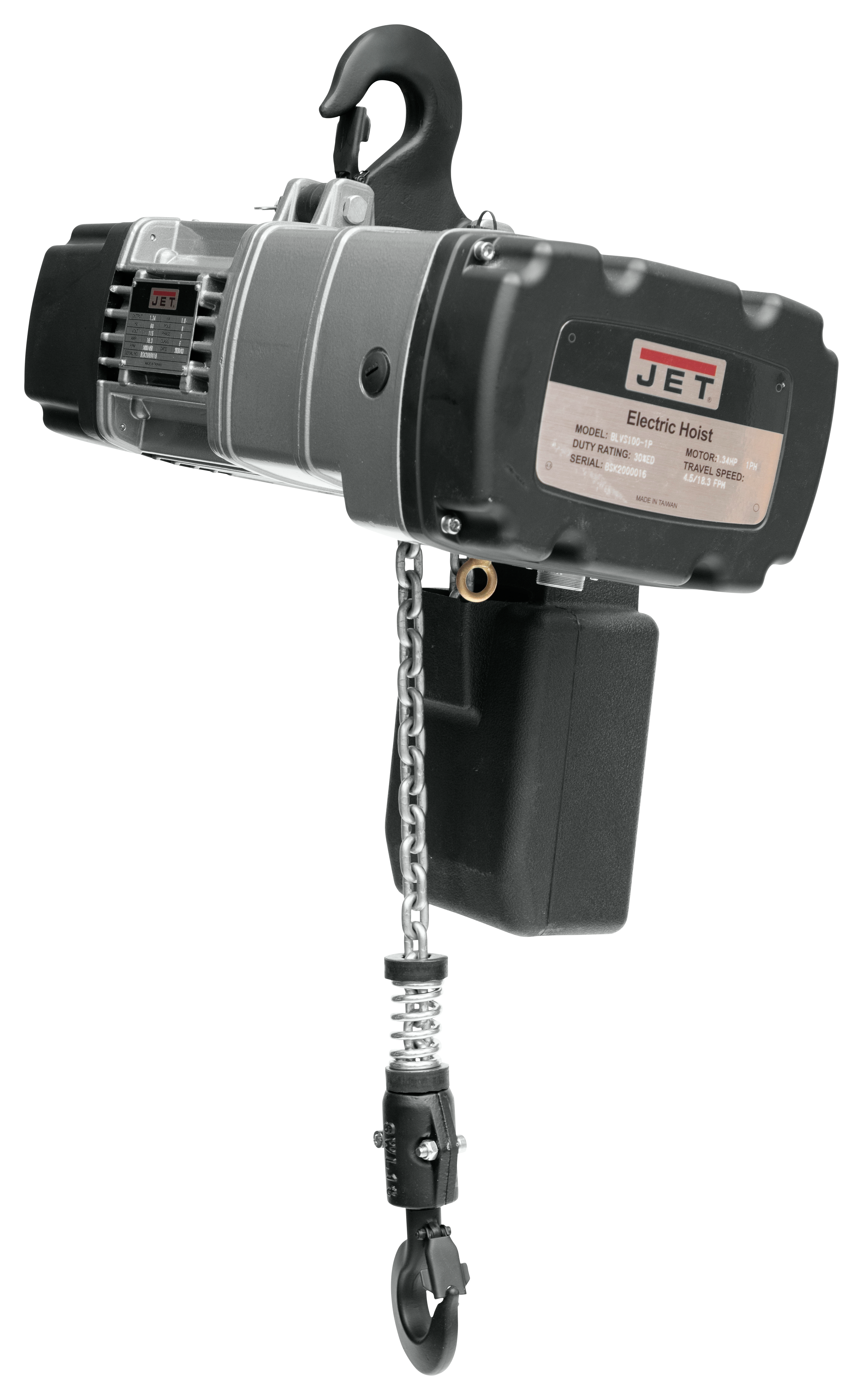

The JET Trademaster BLVS Series Electric Chain Hoist represents next-generation precision lifting. Powered by a DC brushless motor with variable speed control (4.1–20.67 fpm), the BLVS includes a wireless remote controller, operates on standard 115V single-phase power, and is TAA compliant. The 2-year warranty covers all electrical components. Ideal for manufacturing, assembly, and maintenance applications requiring smooth variable-speed load control.

Key Features

DC brushless motor with variable speed control: 4.1–20.67 fpm

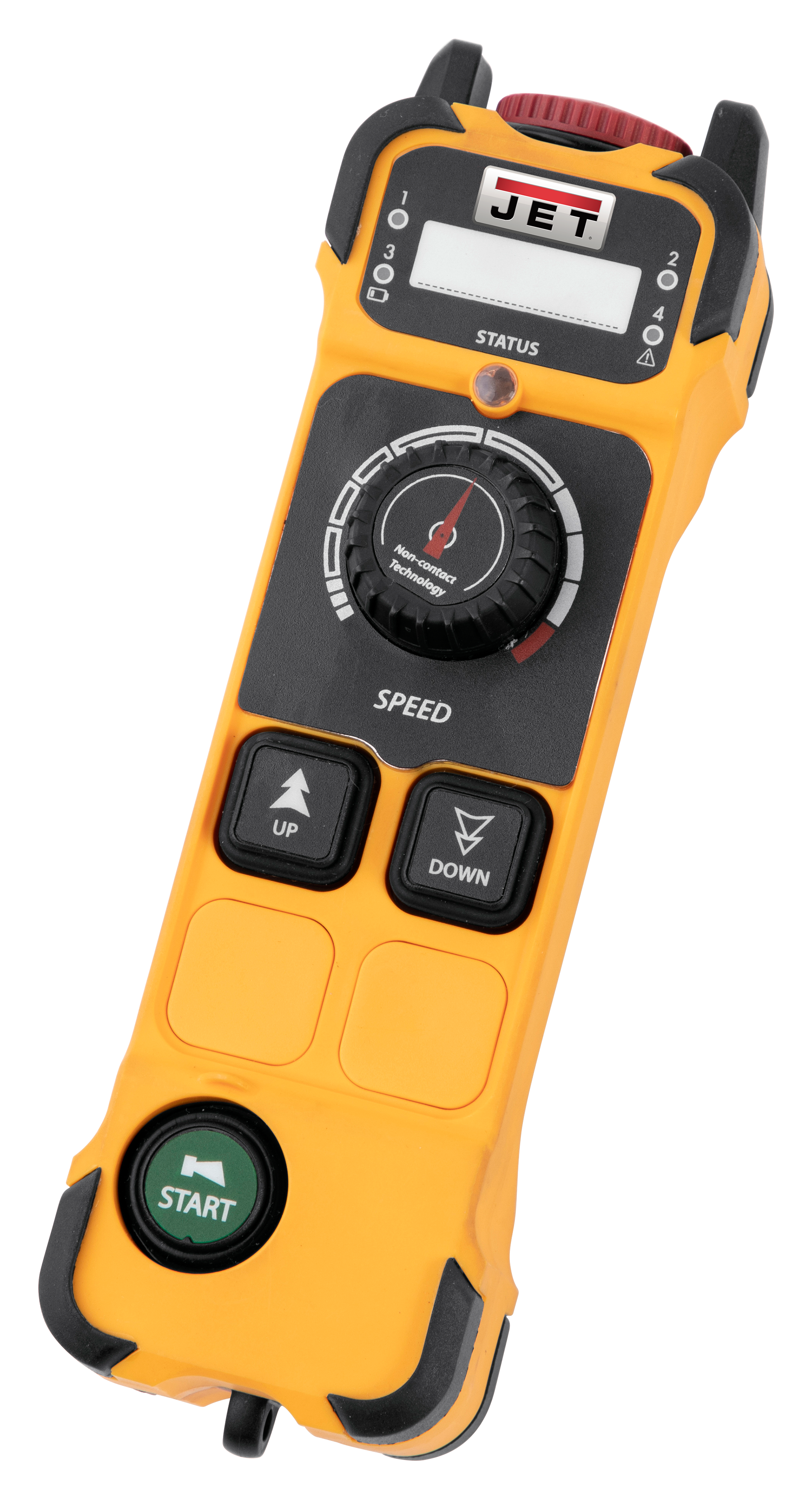

Wireless remote controller included standard
Standard 115V single-phase power — no special wiring required
TAA compliant (Trade Agreements Act)
2-year warranty on all electrical components

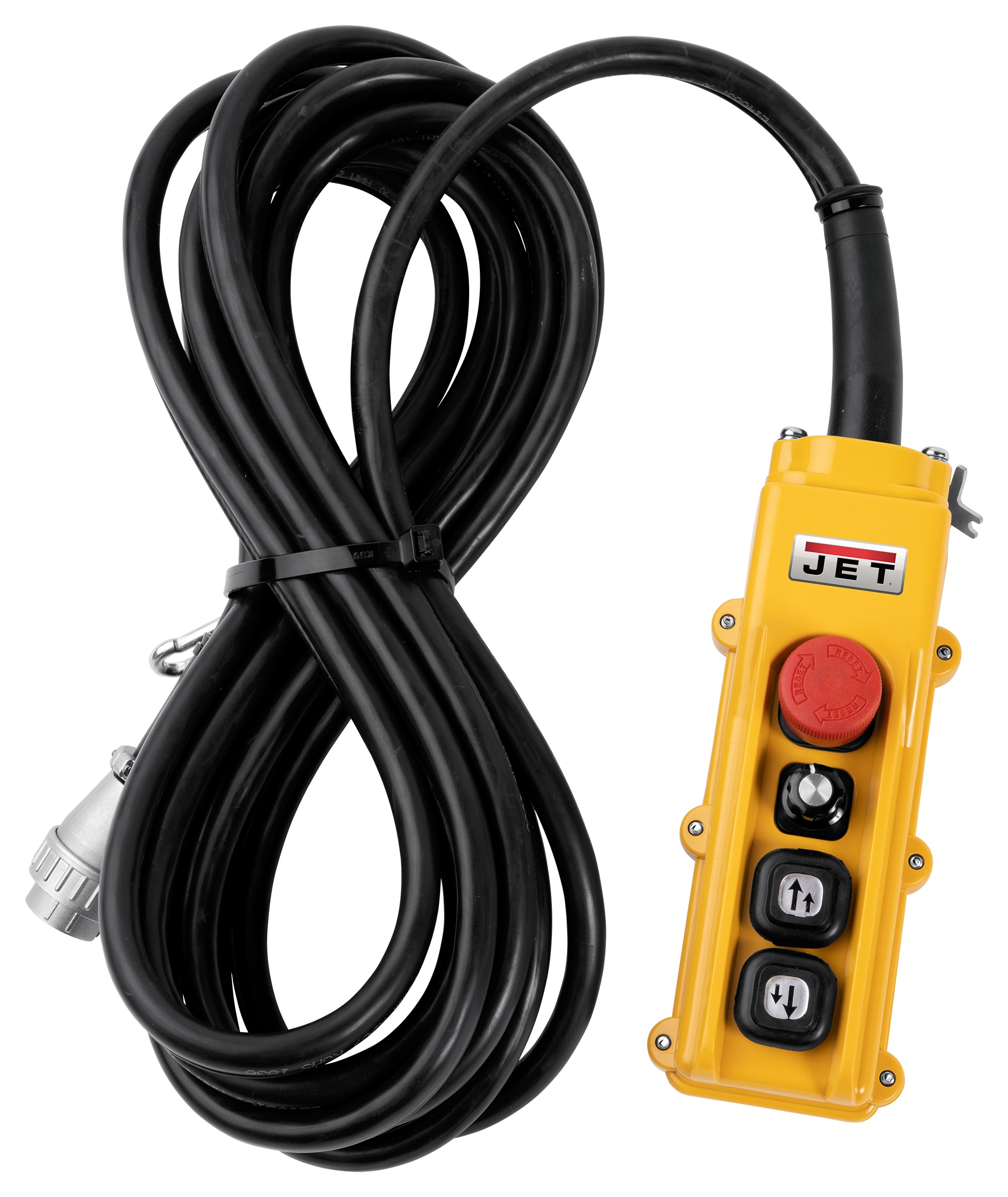

Pendant control included
ANSI/ASME B30.16 compliant

Capacity	1 Ton (2,200 lb)
Lift	20 ft
Motor	DC Brushless, 1.34 HP (1,000W)
Power	115V / 1-Phase
Lift Speed	Variable 1.84–18.4 fpm
Chain Falls	1
Current Draw	15.0 A @ 115V
Headroom	20-11/16"
Duty Rating	H3
IP Rating	IP54 (hoist), IP65 (control)
Standards	ANSI/ASME B30.16

All shipments are F.O.B. Origin, Freight Prepaid — standard freight to a commercial address with a loading dock or forklift on-site is included in your quoted price. Accessorial fees (liftgate, residential, limited access) are disclosed in your quote before confirmation.
